Have you ever wondered why, even when a line fault occurs nearby, your building or factory's power supply remains uninterrupted? Hidden behind the scenes, there's an unsung hero of modern power systems called the Ring Main Unit (RMU).
An RMU is far more than just a piece of electrical equipment. Think of it as a smart roundabout in the city's power grid, ensuring the flow of electricity stays smooth even if one route is temporarily blocked.
This guide will demystify the Ring Main Unit for you. We'll use clear, professional language to explore its core functions and inner workings, and explain exactly why it's a critical component in guaranteeing power reliability. Whether you're an electrical engineer or simply curious about how the grid works, this article offers a comprehensive and valuable deep dive.
What is a Ring Main Unit? — From Concept to Function
RMUs are essentially compact, metal-enclosed switchgear assemblies. They are typically made up of multiple functional units, primarily used in medium-voltage (10kV-35kV) secondary distribution systems.
Unlike older, bulky switchgear, RMUs are known for their small footprint, high level of integration, and superior safety. They combine essential components like cable connections, load break switches, circuit breakers, and earthing switches into a single, sealed unit, saving a significant amount of space while simplifying operation and maintenance.
This compact design makes them ideal for crowded urban areas, commercial centers, high-rise buildings, and industrial facilities. In these locations, where space is a premium, RMUs are often the only practical choice for power infrastructure, helping to maximize land use and support rapid urban development.
The Three Core Functions of an RMU
As a critical node in the medium-voltage network, an RMU’s core duties can be boiled down to three key functions:
Connection: It serves as a point of connection for power lines, linking feeders from different directions and supplying power to local distribution transformers or loads.
Switching: It can safely connect and disconnect power lines under normal operating conditions. This allows for the isolation or redirection of a specific line section for maintenance or troubleshooting.
Protection: When an electrical system experiences faults like a short circuit or overload, the RMU’s protective devices respond instantly. This cuts off the fault current and protects other equipment on the grid from damage, all while keeping people safe.
A Deep Dive: The RMU's Inner Workings

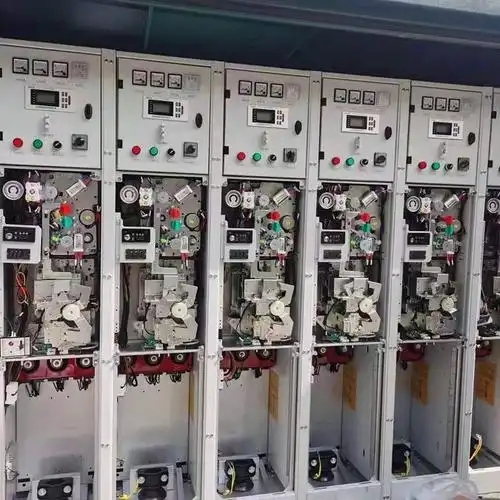

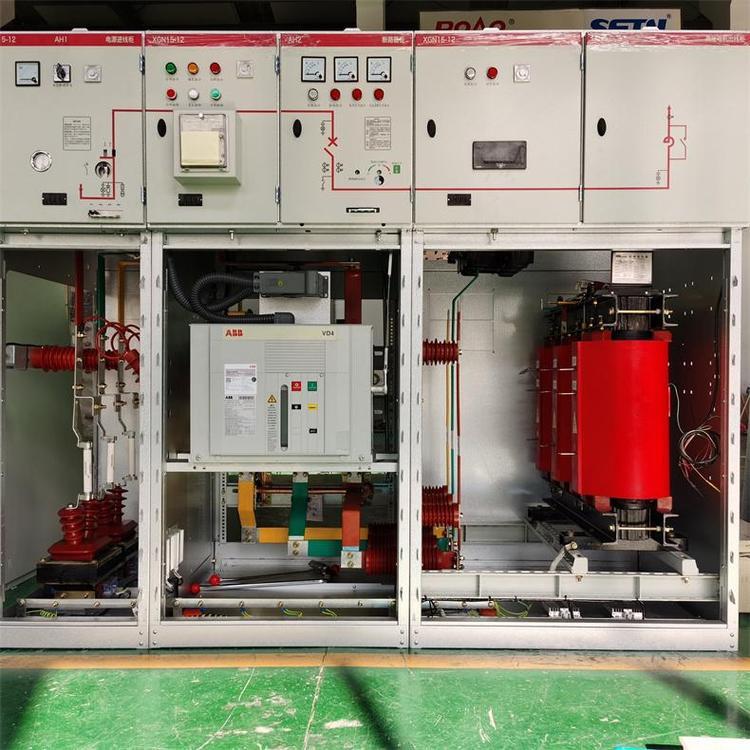

The RMU's impressive capabilities are the result of its precisely engineered components working together. A typical RMU is a modular assembly of several units, with the most crucial being the load break switch, circuit breaker, fuses, and earthing switch.
The "Brains" and "Limbs" of an RMU: A Component Breakdown
Load Break Switch (LBS): Think of the LBS as the RMU’s "limbs," responsible for safely making and breaking normal operating currents. In a ring network, the LBS is essential for switching power paths, allowing for the safe isolation or redirection of a line section without causing an arc or damaging the system.
Circuit Breaker: If the LBS is the "limbs," the circuit breaker is the "brain." It differs from an LBS because it can interrupt not only normal currents but also massive fault currents, such as those from a short circuit. It acts within milliseconds, protecting critical equipment like transformers and cables from catastrophic damage.
Fuse: The fuse is essentially the RMU's "insurance policy." It's a cost-effective protective device for overloads and short circuits, often paired with an LBS to protect downstream distribution transformers. When the current exceeds a safe limit, the fuse's wire melts, breaking the circuit.
Safety First: The Earthing Switch and "Five Preventions"
Beyond its core switching functions, safety is a foundational principle of the RMU’s design. This is especially evident in its earthing switch and the "Five Preventions" interlocking mechanism.
Earthing Switch: This is a critical safety device. Before any maintenance can begin, operators must close the earthing switch to ground the equipment, ensuring there are no residual charges or induced voltages. This guarantees the safety of personnel.
"Five Preventions" Interlocking: This is a crucial safety concept in electrical design. It uses a mechanical or electrical interlock to prevent five of the most common operating errors:
Preventing a load break switch from operating while under load.
Preventing incorrect operation of the circuit breaker.
Preventing a live earthing switch from being engaged.
Preventing a live circuit breaker from being engaged when the earthing switch is on.
Preventing access to a live compartment.
These intricate safety mechanisms make the RMU a highly reliable piece of equipment, drastically reducing operational risks.
How Does the RMU Achieve "Uninterrupted Power"?

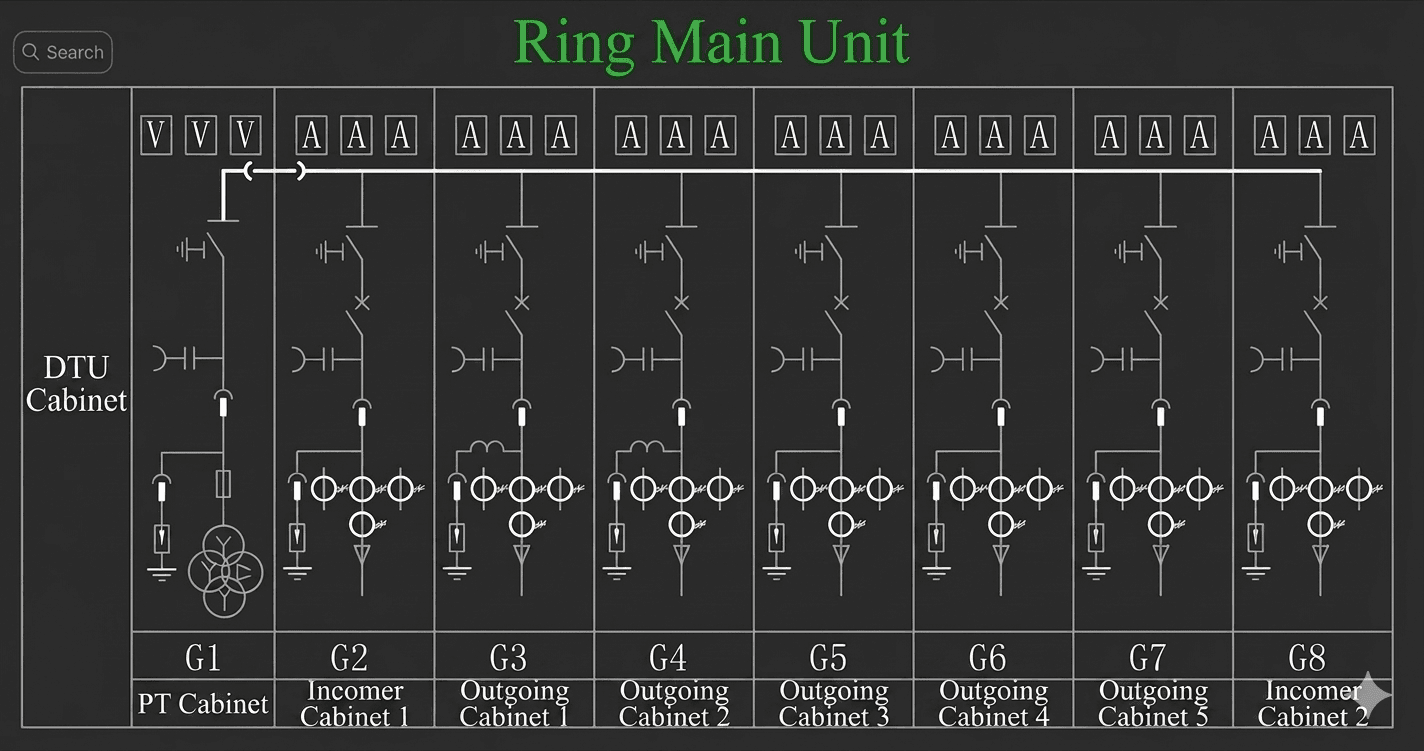

The RMU's most remarkable feature is its ability to provide uninterrupted or quickly restored power. This is thanks to its unique ring-shaped connection. A typical RMU has two incoming lines and multiple outgoing lines. The two incoming lines connect to a substation or an adjacent RMU, forming a complete loop.
This is the fault handling process:
1. Normal Operation: Power is supplied simultaneously through both incoming lines, or one acts as the main line while the other is a backup.
2. Fault: When a line (for example, Incoming Line A) is interrupted due to a cable fault, the RMU’s circuit breaker immediately trips, isolating the fault.
3. Isolation: The faulty section is precisely isolated, while the rest of the network remains operational.
4. Switching: Operators or an automated system quickly reconfigure the RMU by closing a tie switch on the backup line (Line B). Power is then restored to the users from the opposite direction.
This entire process can take just a few minutes, minimizing downtime and ensuring a continuous, reliable power supply.
The Engineer's Perspective: Key Specs and Standards
For a professional electrical engineer, selecting and evaluating an RMU goes beyond its basic functions. It requires a close look at technical specifications that determine the equipment's safety and suitability.
Core Technical Parameters and Selection Criteria
Rated Voltage: The maximum voltage at which the RMU can operate safely, such as 12kV, 24kV, or 36kV. This must match the grid’s voltage.
Rated Current: Typically 630A, this is the maximum current the unit can carry continuously under normal operating conditions.
Rated Short-time Withstand Current: This is a key measure of the RMU’s stability during a fault. For example, a rating of 20kA/3s means the unit can handle a short-circuit current of up to 20,000 amps for three seconds without being damaged.
IP Rating (Ingress Protection): This rating indicates how well the enclosure protects against solids and liquids. An IP4X rating for the enclosure means it can block solids larger than 1mm, while an IP67 rating for the gas compartment means it's fully dust-tight and can be temporarily submerged in water.
Internal Arc Classification (IAC): This is a critical safety rating that measures how well the unit protects operators from the effects of an internal arc flash fault. An IAC-rated design effectively contains the heat and pressure of an arc, preventing explosive gases or flames from escaping the enclosure.
Industry Standards and Norms
All electrical equipment must adhere to strict international and national standards. Mentioning these standards not only guarantees product quality but also demonstrates professional authority.
International Standard: The IEC 62271-200 standard for high-voltage switchgear and controlgear defines the performance requirements and testing methods for RMUs.
Chinese Standard: In China, products must comply with national standards such as GB/T 11022.
RMU Types and Selection
The type of RMU you choose depends largely on its insulating medium. Different insulation materials dictate the unit's design, size, performance, cost, and environmental impact.
RMU Types by Insulating Medium: A Comparison
SF6 Gas-Insulated: SF6 (sulfur hexafluoride) gas is the most widely used insulating medium. It offers excellent insulating and arc-quenching properties, allowing for a highly compact, low-maintenance design with stable, reliable performance. However, SF6 is a potent greenhouse gas, and its use is being phased out in some countries due to environmental concerns.
Air-Insulated: As the name suggests, this type uses dry air as its insulating medium. The pros are that it's environmentally friendly and low-cost. But because air is a weaker insulator than SF6, air-insulated RMUs are typically much larger, which limits their use in space-constrained urban areas.
Solid-Insulated: Representing a newer technology, solid-insulated RMUs use materials like epoxy resin for insulation. Their biggest advantages are that they're eco-friendly, safe (no risk of gas leaks), and extremely compact. While they can be more expensive to manufacture, this technology points to the future of RMU design.
Selection Comparison Chart
RMU Types by Location: Indoor vs. Outdoor

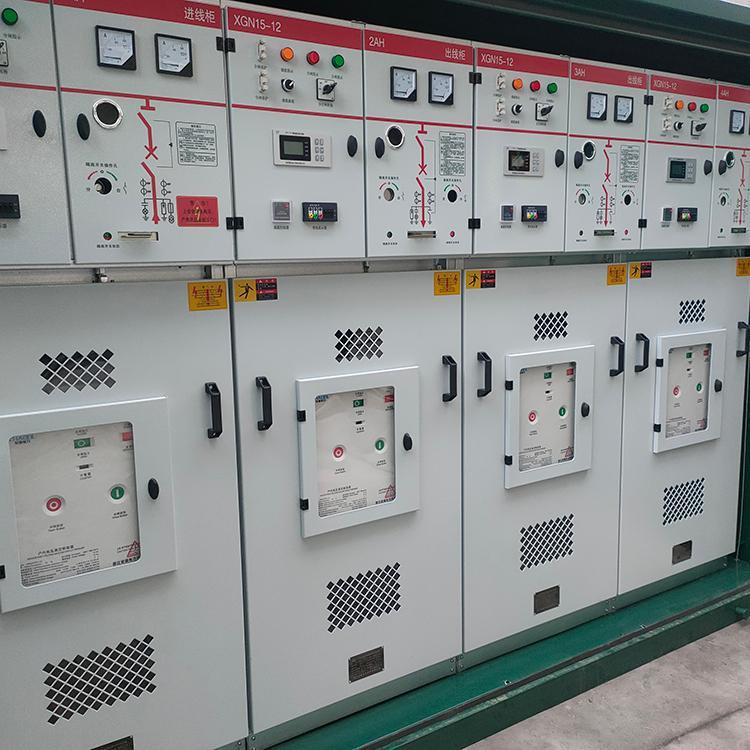

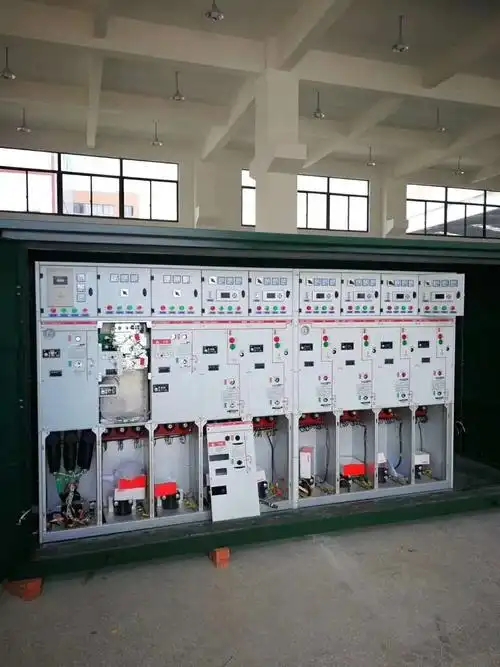

Indoor RMUs are designed to be installed in indoor substations or electrical rooms. They typically lack extra protection against rain or sun.

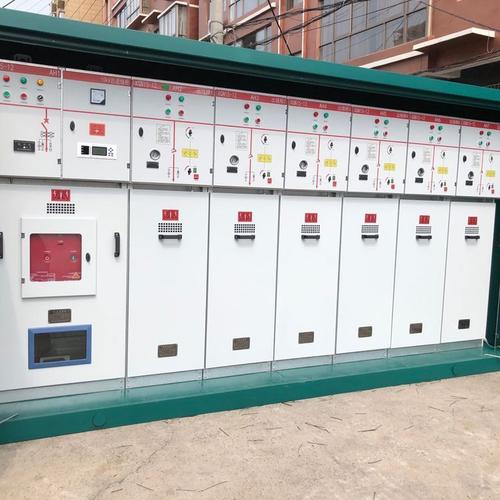

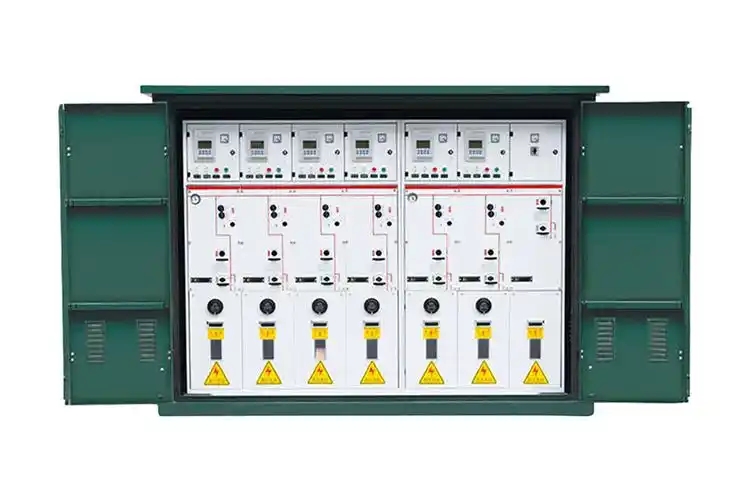

Outdoor (Kiosk) RMUs are enclosed in a weatherproof housing with protection against rain and dust. They can be installed outdoors in residential areas, industrial parks, or at renewable energy sites.
Why RMUs Matter: Key Advantages and Applications
RMUs have become the foundation of modern distribution systems by offering a combination of critical benefits.
The Five Key Advantages of an RMU
High Reliability: The ring design provides redundant power paths. This allows the RMU to quickly switch to a backup line if a fault occurs, minimizing downtime and potentially providing zero-downtime switching.
Compact Design: Compared to traditional switchgear, RMUs take up far less space, making them a perfect fit for densely populated urban areas and commercial buildings where space is at a premium.
Enhanced Safety: The fully enclosed and insulated design, along with the "Five Preventions" interlocking mechanism, isolates live components. This significantly enhances personnel safety.
Modularity and Flexibility: The modular design makes RMUs easy to install, expand, and replace. This flexibility allows them to adapt to future grid developments, reducing the complexity and cost of upgrades.
Low Maintenance: Many modern RMUs, especially SF6 or solid-insulated types, are designed to be sealed and maintenance-free. They can operate for 20-30 years with little to no internal maintenance, lowering operating costs.
The Unseen Guardian: A Look at Applications
RMUs are everywhere, woven into the fabric of our daily lives.
Urban Distribution Networks: They are the foundation of the power supply for residential complexes, commercial centers, hospitals, schools, and subway systems.
Industry and Data Centers: In factories, mines, and data centers that require an extremely reliable power supply, RMUs ensure that production lines and servers run without interruption.
Infrastructure: Power supplies for airports, ports, and railway systems also rely on the reliability of RMUs.
Renewable Energy: At wind farms and solar photovoltaic power plants, RMUs gather the power from individual generators and transmit it to the main grid.
RMU FAQ
What is the difference between an RMU and a switchgear?
Switchgear is a broad term for all equipment used to control, protect, and isolate electrical systems. RMUs are a specific type of switchgear known for their compact, ring-feed, and fully enclosed design, primarily used in medium-voltage distribution networks.
How long does an RMU typically last?
Modern, high-quality RMUs are designed to last for 20-30 years or more. SF6 gas-insulated and solid-insulated RMUs, in particular, have longer lifespans due to their sealed design, which protects internal components from the environment.
Is SF6 gas harmful to the environment? Why is it still used?
Yes, SF6 is a potent greenhouse gas, with a global warming potential 23,500 times greater than CO2. Despite this, its excellent insulating and arc-quenching properties make it difficult to replace in many applications. However, the industry is actively seeking alternatives, including developing RMUs that use solid insulation, dry air, or alternative gas mixtures.
How do I choose the right RMU for my project?
You need to consider several factors: first, the rated voltage and current to match your grid; second, your application environment to choose between indoor or outdoor types; third, environmental factors like temperature, humidity, and elevation; and finally, your budget and environmental concerns to determine the best insulating medium.
