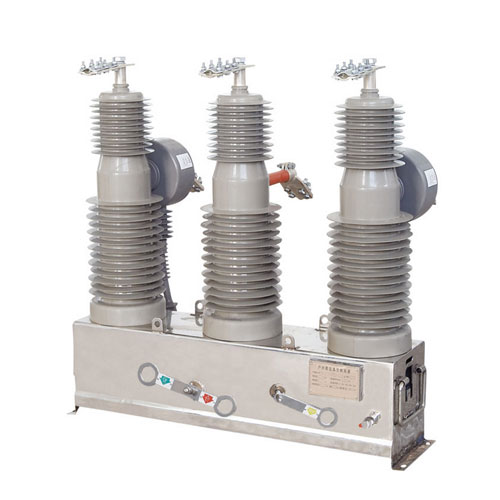

ZW32-24 Outdoor High-Voltage Vacuum Circuit Breaker

Overview:

The ZW32-24 Outdoor Vacuum Circuit Breaker is a reliable power distribution device designed for a rated voltage of 24kV and a three-phase AC 50Hz power system. It is primarily used for making and breaking load currents, overload currents, and short-circuit currents within power systems. This breaker is ideal for protection and control in substations, as well as in the power distribution systems of industrial and mining enterprises, particularly in rural areas with frequent grid operations.

The circuit breaker is characterized by its compact size, lightweight design, anti-condensation features, and maintenance-free operation. It is engineered to withstand harsh climatic conditions and dirty environments, ensuring reliable performance in demanding settings.

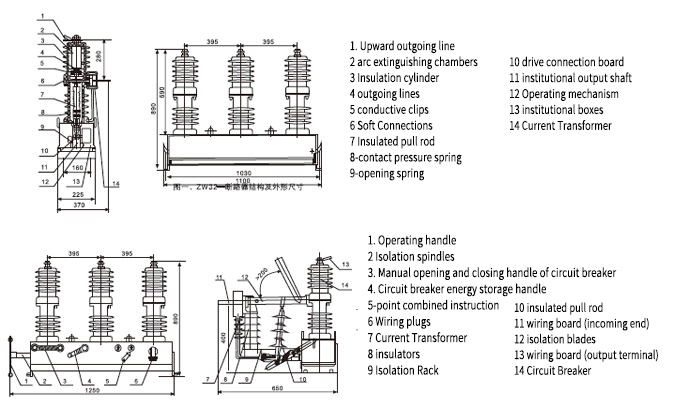

Technical Parameters

NO.	Items	Unit	Data
1	rated voltage	KV	24
2	Rated frequency	Hz	50
3	rated current	A	630
4	Rated short-circuit breaking current	KA	20
5	Rated peak withstand current (peak)	KA	50
6	Rated short-time withstand current	KA	20
7	Rated short-circuit closing current (peak)	KA	50
8	mechanical life	Times	10000
9	Rated short-circuit breaking current breaking times	Times	30
10	Frequency withstand voltage (1min): (wet) (dry) phase-to-phase, ground-to-ground/interruptions	KV	65/79
11	Lightning impulse withstand voltage (peak) phase-to-phase, ground-to-ground/interceptor	KV	125/145
12	Secondary circuit 1min frequency withstand voltage	KV	2
