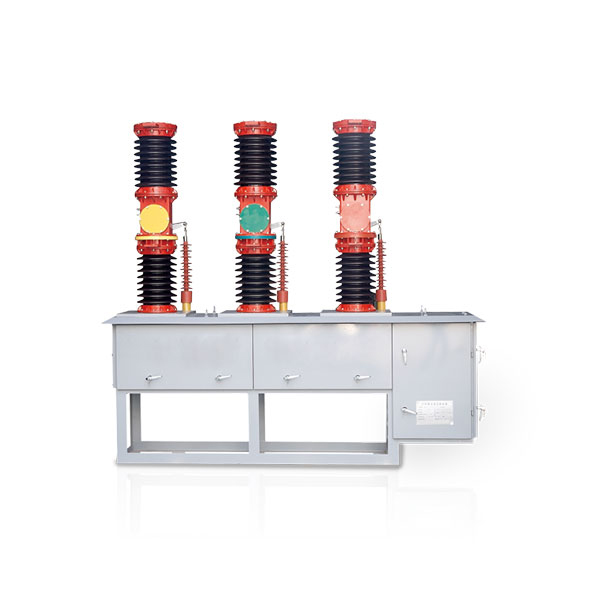

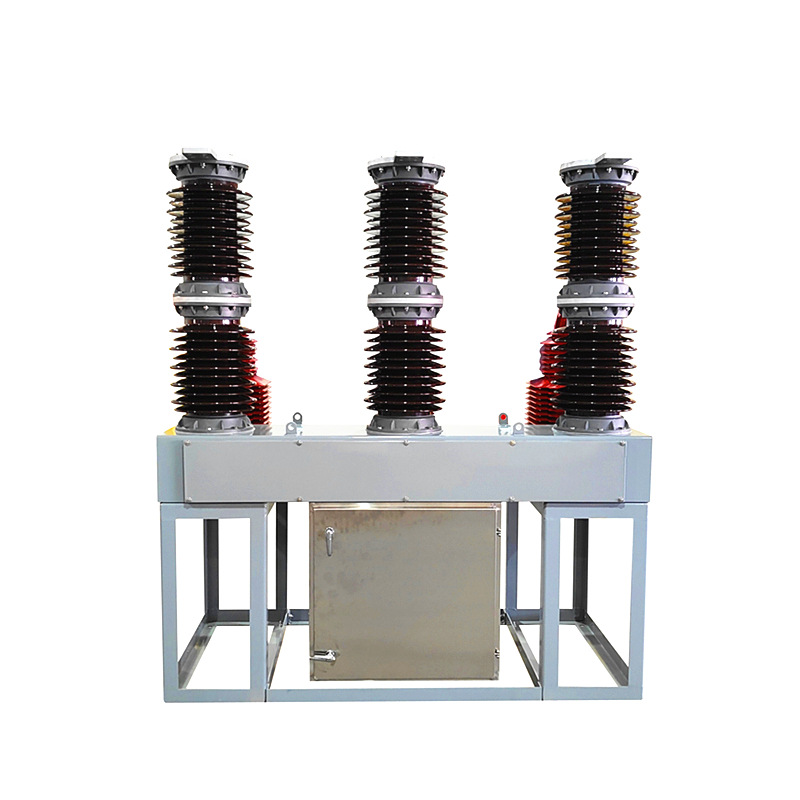

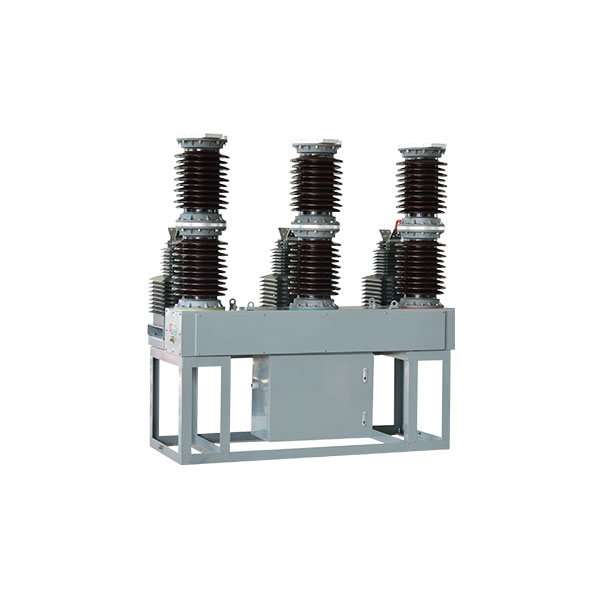

ZW7-40.5/1250A Outdoor Pole-Mounted Switch 35KV Smart HV Vacuum Breaker

Core Overview: Intelligent Drive, Born for Wind Power

In the demanding environment of wind power generation, the reliability, intelligence, and ease of maintenance of electrical equipment are paramount. Weisho Electric proudly presents the ZW7-40.5/1250A outdoor pole-mounted smart high voltage vacuum circuit breaker. This is an innovative product meticulously crafted for 35KV (40.5kV and below) wind power systems.

It transcends a simple breaking device. This advanced pole-mounted switch integrates intelligent protection, automated control, and remote communication. The ZW7-40.5/1250A precisely addresses various electrical challenges at wind power grid connection points and remote lines. It efficiently interrupts normal, overload, and short-circuit currents. Through its superior automation capabilities, it maximizes the continuous and stable output of wind power. This makes it an indispensable core hub for smart wind farms, ensuring stable and safe power for remote locations.

Product Features & Core Advantages: Optimized for Wind Power, Smartly Protecting Every Watt

Every design aspect of the ZW7-40.5/1250A circuit breaker deeply considers the unique demands and harsh environments of the wind power industry.

Exceptional Smart Control and Communication Capabilities: Featuring an advanced microprocessor and communication module, the ZW7-40.5/1250A enables remote monitoring, parameter setting, and fault diagnosis. It seamlessly integrates with wind farm SCADA systems or dispatch centers.
This allows operations personnel to monitor equipment status and perform remote operations from distant locations, significantly boosting wind farm operational efficiency and reducing manual inspection costs.
Fast Reclosing Designed Specifically for Wind Power: Wind power grid-connected lines are prone to transient faults, such as lightning strikes. The ZW7-40.5/1250A boasts a millisecond-level responsive fast reclosing function.
It quickly restores power after a transient fault, minimizing turbine downtime. This ensures wind farm power generation is not interrupted by brief grid disturbances, enhancing generation efficiency.
Outdoor Pole-Mounted Installation, High Adaptability, Investment Savings: Its pole-mounted design eliminates the need for additional substation construction, greatly simplifying civil engineering. This not only significantly shortens project construction periods but also substantially lowers initial investment costs.
Its compact form factor and lightweight design further facilitate transport and rapid deployment in remote wind power areas.
Vacuum Arc Quenching and Long Life, Ensuring Stable Wind Farm Operation: Utilizing mature and reliable vacuum arc quenching technology it ensures rapid and safe interruption of large current faults. Contact wear is minimal, leading to an extended electrical life.
Its mechanical operation life, reaching up to 10,000 cycles, meets the frequent switching and automatic reclosing demands of wind farms. This truly achieves low-maintenance or maintenance-free operation, reducing the burden on remote wind farm operations.
Extreme Weather Resistance, Unfazed by Harsh Wind Farm Environments: The ZW7-40.5/1250A was designed from inception with the severe natural conditions of wind farms in mind. It can withstand extreme temperatures from -40°C to +40°C, strong winds, dust storms, and heavy pollution up to Class IV.
Its unique anti-condensation, moisture-proof, and corrosion-resistant design ensures reliable operation even through wind, rain, extreme cold, and heat, providing continuous power assurance.
Integrated Current Transformers and Protection Functions: Select models can include high-precision built-in current transformers, enabling precise measurement of line currents. Concurrently, it integrates multiple protection functions, such as overload and short-circuit protection.
This positions the ZW7-40.5/1250A as the first reliable line of defense for wind farm power output, effectively protecting wind turbines and line safety.

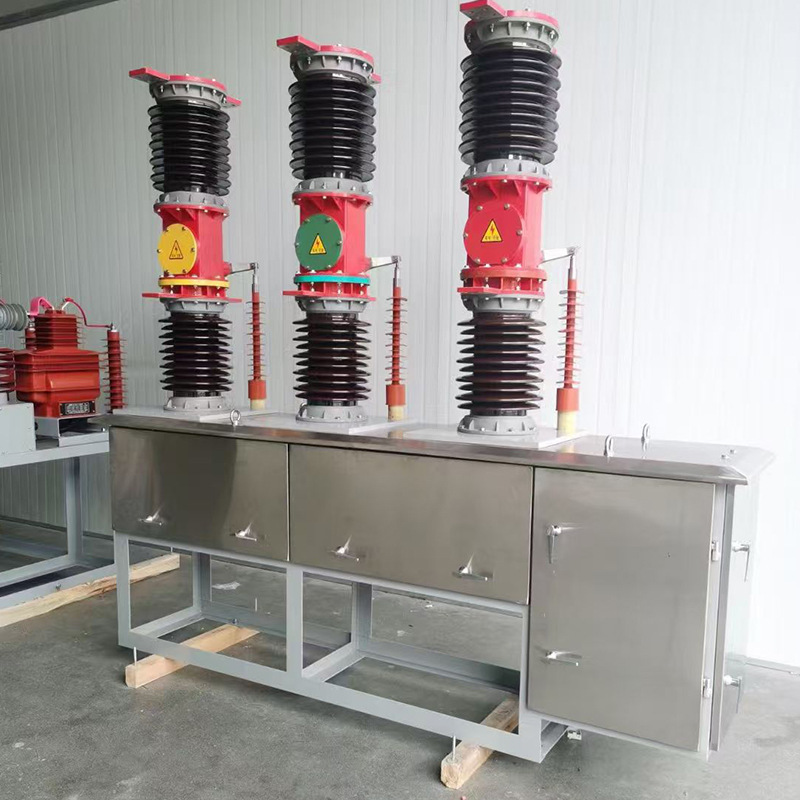

ZW7-40.5/1250A Outdoor Pole-Mounted Switch 35KV Smart HV Vacuum Breaker

Working Principle: Intelligent Sensing, Instant Decision, Continuous Power

The working principle of the ZW7-40.5/1250A outdoor pole-mounted smart high voltage vacuum circuit breaker is a perfect blend of traditional vacuum arc quenching and modern intelligent control. When an abnormality occurs in the line, such as an overload or short circuit, the integrated smart controller immediately detects changes in current or voltage.

The controller, based on preset protection logic, swiftly sends a trip command to the operating mechanism within the vacuum interrupter. In the vacuum environment, the moving and stationary contacts rapidly separate, and the arc is extinguished instantaneously. This achieves millisecond-level interruption of the fault current, thereby protecting the power system. Subsequently, tailored for wind power characteristics, the smart controller initiates a pre-programmed fast reclosing sequence.

It attempts to reclose the circuit within an extremely short period to restore power. If the fault is transient, such as a lightning strike, the line quickly returns to normal. If it is a permanent fault, the circuit breaker will trip and reclose multiple times according to the preset program before finally locking in the open position. It will then promptly report fault information to the wind farm control center via the communication module, guiding operations personnel to precisely locate and resolve the fault, thereby minimizing unscheduled downtime.

Detailed Technical Specifications: Providing Robust Support for Safe and Stable Wind Power Operation

Parameter Name	Unit	ZW7-40.5/1250A (Typical Value)
Rated Voltage	kV	40.5
Rated Frequency	Hz	50 / 60
Rated Current	A	1250
Rated Short-Circuit Breaking Current	kA	25 / 31.5
Rated Peak Withstand Current	kA	63 / 80
Rated Short-Time Withstand Current (4s)	kA	25 / 31.5
Rated Operating Sequence	-	O-0.3s-CO-180s-CO (Typical Reclosing Sequence)
Rated Short-Circuit Current Breaking Times	Cycles	≥12
Mechanical Endurance	Cycles	10000
Rated Power Frequency Withstand Voltage (1min)	kV	95 (Phase-to-Ground/Phase-to-Phase), 185 (Across Open Contacts)
Rated Lightning Impulse Withstand Voltage (Peak)	kV	185 (Phase-to-Ground/Phase-to-Phase), 215 (Across Open Contacts)
Ambient Temperature Range	°C	-40 ~ +40
Altitude	m	≤2000 (Customizable for higher altitudes)
Max Wind Speed	m/s	≤34
Pollution Level	-	Class III / IV
Earthquake Intensity	Degree	≤8
Ice Thickness	mm	≤10 (Select models)
Operation Method	-	Spring Operating Mechanism (Electric/Manual, supports remote)
Smart Functions	-	Protection, Measurement, Control, Communication, Fast Reclosing

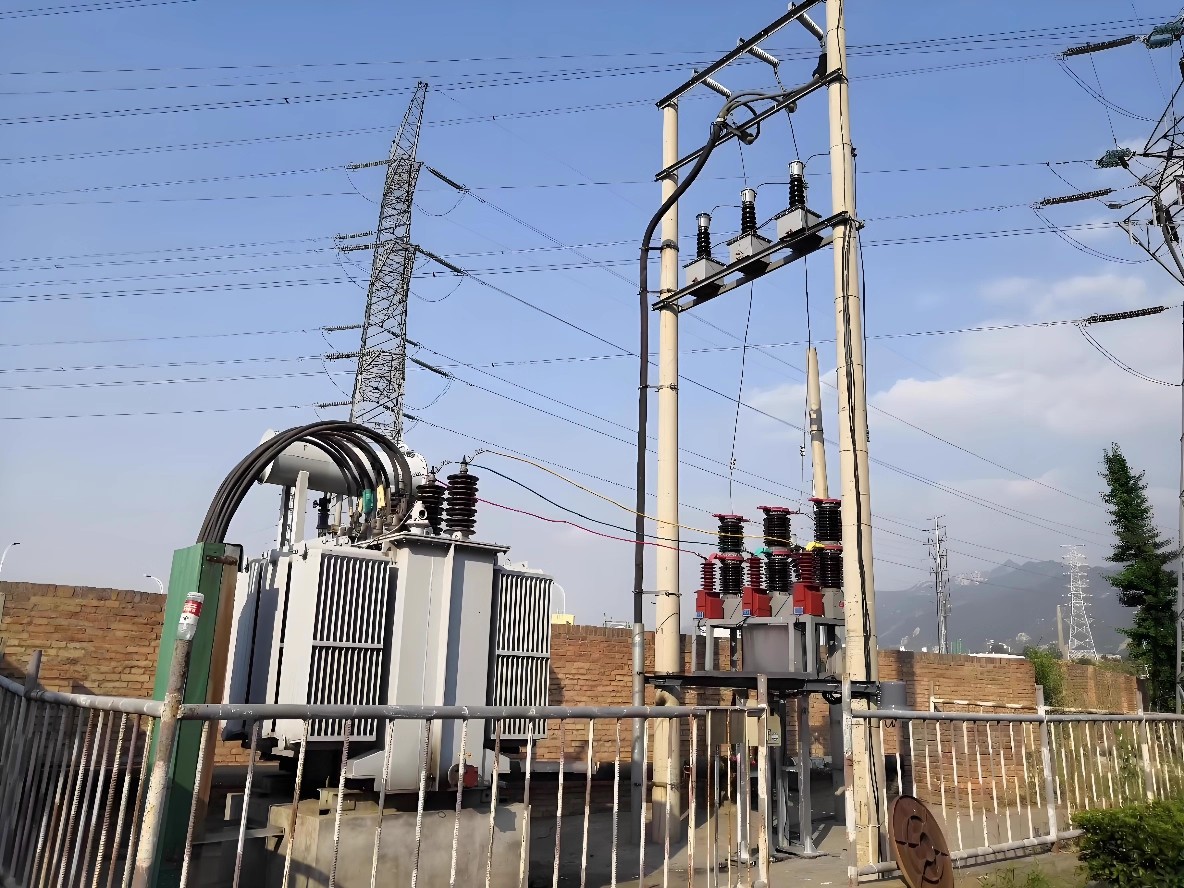

ZW7-40.5/1250A Outdoor Pole-Mounted Switch 35KV Smart HV Vacuum Breaker

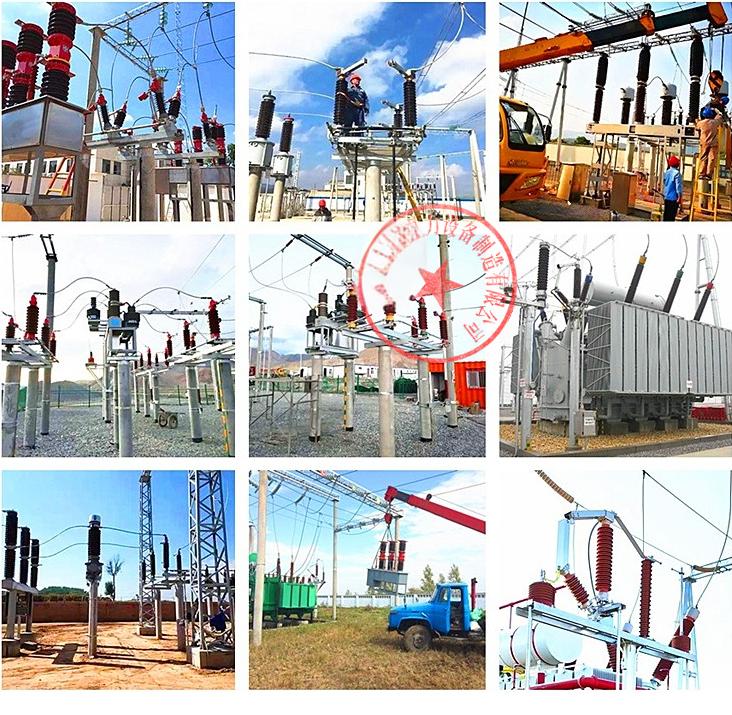

Typical Application Scenarios & Global Case Studies: Wind Power Frontier, Weisho's Presence

The ZW7-40.5/1250A outdoor pole-mounted smart vacuum circuit breaker, with its wind power-optimized design and exceptional intelligent features, has become a cornerstone in wind power projects worldwide.

Large-Scale Onshore Wind Farm in Northwest China

Client: A major state-owned energy investment group in China.
Project Challenge: This wind farm, located deep in the Gobi Desert, faced extreme aridity, large day-night temperature differences, and remoteness from urban centers, complicating operations and maintenance. It required pole-mounted switches capable of efficiently handling transient faults and offering remote management.
Weisho Solution: Weisho Electric supplied multiple ZW7-40.5/1250A smart pole-mounted circuit breakers, deployed at various feeder outlets across the wind farm. Their robust environmental adaptability and intelligent reclosing function significantly enhanced the wind farm's power supply reliability.
Client Feedback: "The intelligent management features of the ZW7-40.5/1250A allow us to monitor wind farm equipment status in real-time from our office, greatly reducing the frequency of on-site visits by our O&M personnel in harsh environments. Its reclosing capability also ensures power generation is not affected by minor faults." — Engineer Wang, Wind Farm O&M Director.

Distributed Wind Power Project at the Edge of the Brazilian Rainforest

Client: A local power company in Brazil.
Project Challenge: The humid, high-temperature, and often stormy climate demanded exceptionally high moisture-proof and corrosion-resistant performance from outdoor equipment. The complex lines of the distributed wind farm required rapid fault localization and isolation.
Weisho Solution: The ZW7-40.5/1250A's excellent sealing and high pollution level design effectively withstood the rainforest climate. Its intelligent protection functions ensured rapid grid recovery during frequent transient faults in the stormy season.
Client Feedback: "This circuit breaker has proven very reliable in our humid and stormy Brazilian wind farm. Its intelligent fault handling capabilities make our distributed wind power project run much more smoothly." — Marcos Silva, Project Electrical Engineer.

Onshore Interconnection Point for an Offshore Wind Farm in Northern Germany

Client: A renowned German power transmission operator.
Project Challenge: Offshore wind power imposes stringent demands on onshore interconnection point equipment. It must withstand high wind pressure and possess high reliability and redundant protection to ensure stable, long-distance wind power transmission.
Weisho Solution: Weisho Electric's ZW7-40.5/1250A, with its extended mechanical life and high breaking capacity, ensured stable operation at the wind power interconnection point. Its flexible pole-mounted installation also provided convenience for the interconnection station design.
Client Feedback: "The robustness and automation level of the ZW7-40.5/1250A fully meet our high standards for onshore interconnection station equipment. It provides reliable assurance for the stable transmission of offshore wind power." — Dr. Lena Richter, Transmission Grid Planning Manager.

Installation, Maintenance, and Safety Assurance: Comprehensive Consideration for Wind Power Operations

Rapid Deployment at Wind Farms, Saving Valuable Project Time: The ZW7-40.5/1250A features a lightweight, integrated pole-mounted design, significantly simplifying on-site construction. It eliminates the need for large civil foundations; the equipment can be quickly hoisted directly onto utility poles for installation. This is a significant advantage for wind power projects with tight construction schedules.
Smart-Assisted O&M, Greatly Reducing On-Site Workload: Thanks to its intelligent design, the ZW7-40.5/1250A supports remote status monitoring and fault alarms. O&M personnel can view real-time equipment operating data and perform preliminary fault diagnoses from an office via the wind farm's SCADA system.
This substantially reduces the frequency of personnel travel to remote wind farms, enhancing O&M efficiency and lowering the frequency of high-risk tasks.
Rock-Solid Protection, Ensuring Wind Turbine and Grid Safety: The ZW7-40.5/1250A is equipped with comprehensive overload, short-circuit, and instantaneous protection functions, precisely clearing faults within milliseconds. Its seamless integration with the intelligent controller achieves rapid fault isolation and power restoration.
This not only protects expensive wind turbine generator sets from damage but also maintains the stability of the entire power grid.

Weisho Electric: Walking with the Wind, Driving a Green Energy Future

As a leading enterprise with 12 years of deep experience in high-voltage electrical equipment and driven by innovation, Weisho Electric Co., Ltd. is always committed to contributing to the global energy transition. The ZW7-40.5/1250A outdoor pole-mounted smart vacuum circuit breaker is further proof of our proactive response to the green energy development trend, particularly the needs of the wind power sector.

We understand the complexity and challenges of wind farm environments. Therefore, from design to production, every stage of the ZW7-40.5/1250A strictly adheres to the ISO9001 quality management system and international standards such as IEC. We apply meticulous craftsmanship, ensuring that every unit leaving the factory possesses outstanding weather resistance, ultimate reliability, and leading-edge intelligence. Choosing Weisho Electric means selecting a steadfast partner at the forefront of green energy, working alongside you to achieve sustainable development goals.

Frequently Asked Questions (FAQ): What You Might Want to Know About Wind Power-Specific Circuit Breakers

Q: How does the ZW7-40.5/1250A demonstrate its "wind power-specific" characteristics?A: This is reflected in multiple aspects. First, its fast reclosing function is designed specifically to address common transient faults in wind power grid-connected lines, minimizing downtime. Second, its extreme environmental adaptability (temperature resistance, dustproof, moisture-proof) meets wind farm conditions.
Additionally, its intelligent communication interface seamlessly integrates with wind farm monitoring systems, facilitating remote management and efficient operations, all of which are unique requirements for wind power.
Q: What is the specific role of smart circuit breakers in a wind power farm?A: A smart circuit breaker acts as a "smart sentinel" in a wind farm. It not only precisely clears faults but also uploads real-time operational data via sensors and communication modules.
Crucially, it can receive remote commands, enabling automated reclosing and fault localization. This reduces manual intervention, improving the wind farm grid's self-healing capabilities and operational efficiency.
Q: What are the advantages of pole-mounted installation compared to substation installation for wind power projects?A: The primary advantage of pole-mounted installation is space and cost savings. It eliminates the need for expensive civil engineering substations, mounting directly on transmission line poles.
This significantly shortens construction periods, reduces land acquisition, and lowers initial investment costs, particularly suitable for widely distributed, long-line wind farm applications.
Q: Is the 1250A rated current sufficient for wind power grid connection points?A: The 1250A rated current of the ZW7-40.5/1250A is sufficient to meet the needs of most 35KV voltage level wind turbine feeder lines and collection lines. Specific selection still requires precise calculation based on the total wind farm capacity, individual turbine capacity, and line load conditions.
Weisho Electric engineers can provide professional selection advice.
Q: Can the ZW7-40.5/1250A operate stably in extremely cold regions, such as Northern Europe?A: Yes, the ZW7-40.5/1250A is designed for ultra-low temperature operation down to -40°C. Its key component materials, lubricants, and enclosure sealing are specially treated. This ensures stable and reliable performance of switching operations and protection functions even in extreme cold and icing conditions during severe winters.
