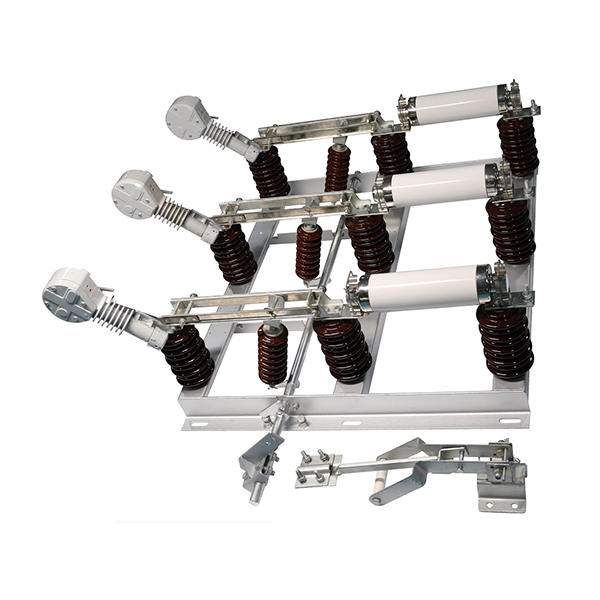

GW1-12FR/630A-200A Outdoor Load High Voltage Isolator Switch

Engineered for stable medium-voltage performance in outdoor environments

The GW1-12FR Outdoor Load Isolator Switch is a medium-voltage isolator rated for 12kV and 630A/200A, purpose-built for overhead distribution lines in rural grids, substations, and renewable power installations. Designed for manual or motorized operation, this switch provides visible break isolation, robust arc-quenching capabilities, and safe load disconnection in all weather conditions.

✅ Key Features

Dual Current Ratings: Available in both 630A and 200A models to support various feeder or branch applications.
Visible Break Design: Ensures operational safety and fault detection through clear visual confirmation.
Arc-Suppressing Contacts: Equipped with arc horns and magnetic blowout features for secure disconnection under load.
Weatherproof Insulation: Insulating supports and porcelain or polymer bushings ensure durability under rain, frost, and dust.
Manual or Motorized Options: Can be fitted with a manual lever or motor actuator for remote SCADA system integration.
Fast Installation: Comes with a standardized mounting bracket for quick pole-mounting with minimal labor.

🔧 Technical Specifications

Parameter	Value

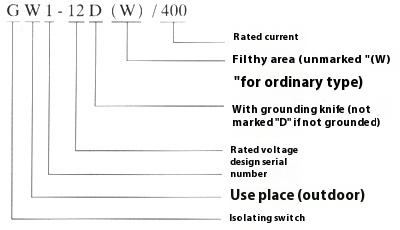

Model	GW1-12FR
Rated Voltage	12 kV
Rated Current	630A / 200A
Rated Short-Time Current	20 kA (1s)
Power Frequency Withstand	42 kV (1 min)
Lightning Impulse Withstand	75 kV
Insulation Type	Porcelain / Polymer
Installation Mode	Pole-mounted
Operating Mechanism	Manual / Optional Motor
Standard Compliance	IEC 62271-102 / GB 1985

GW1-12FR/630A-200A Outdoor Load High Voltage Isolator Switch

🌍 Application Scenarios

The GW1-12FR is widely used across:

Rural Power Networks: For sectionalizing long overhead lines to reduce fault impact.
Solar & Wind Farms: Isolates feeders from inverter clusters during maintenance.
Utility Distribution Systems: Ideal for tie-switch points or backup routes.
Substation Feeders: Enable safe de-energization during breaker replacement.

🧾 Compliance & Certification

Designed by IEC 62271-102, GB/T 1985
Type-tested for mechanical endurance, dielectric strength, and environmental resistance
Customization available to meet NEMA or ANSI installation preferences

⭐ Verified Customer Feedback

"We’ve been using GW1-12FRs for over two years in our Arizona overhead lines—zero failures, even in sandstorms. Highly reliable."
— Mike Langston, Field Engineer, Desert Utilities Co., USA

"Simple to operate and fast to install. We swapped out old isolators on 4 feeders in just one day."
— Paul Jenkins, Grid Tech, Ontario Power Distribution
