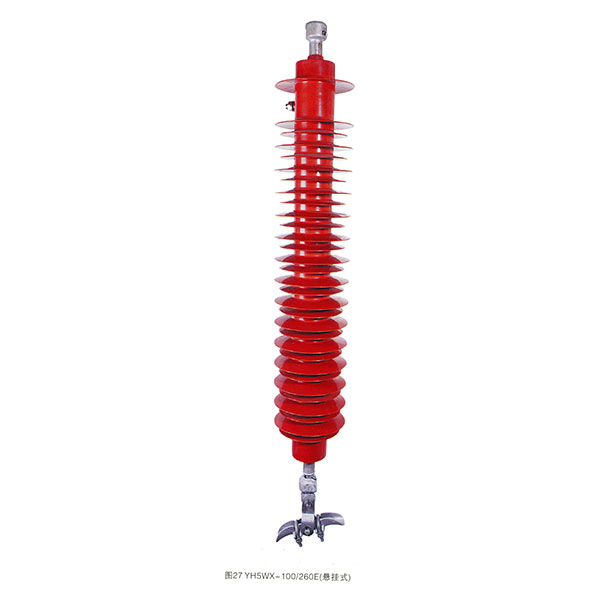

Yh5wx-100/260E Polymer Suspended Line Arrester

In modern power transmission and distribution systems, lightning overvoltages are a primary cause of line tripping and equipment damage. Especially in areas with frequent lightning activity or severe pollution, efficient and reliable overvoltage protection is crucial. Weisho Electric, with its 12 years of deep expertise in high-voltage switchgear and overvoltage protection, proudly introduces the Yh5wx-100/260E Polymer Suspended Line Arrester. This innovative product is specifically designed for 35kV and below overhead transmission lines, providing comprehensive lightning and switching overvoltage protection for your power grid with its outstanding energy absorption capability, superior anti-pollution flashover performance, and stable long-term operational reliability.

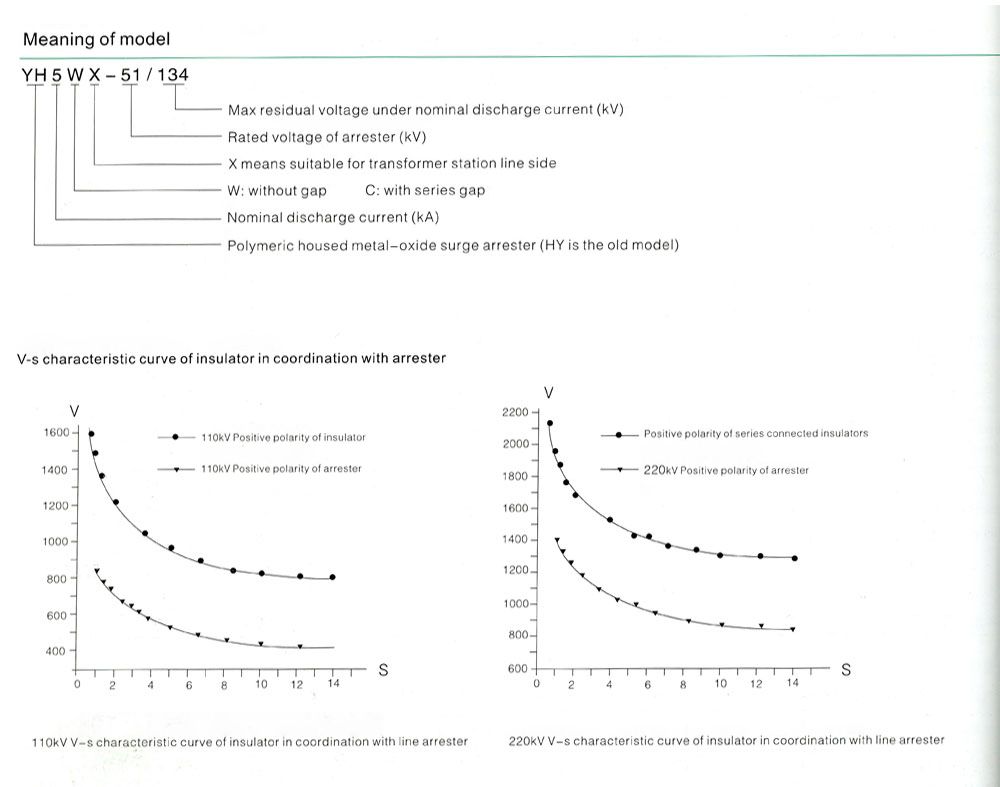

The "100/260E" in the Yh5wx-100/260E model signifies the arrester's powerful protective capabilities: 100kA represents its ability to withstand a 2ms square wave high-current impulse, demonstrating excellent energy absorption; while 260E refers to its rated voltage level on the high-voltage side. As a polymer arrester, it effectively avoids the drawbacks of traditional porcelain arresters, such as susceptibility to explosion, heavy weight, and difficult maintenance. This makes it an ideal choice for line protection in power systems, especially in unmanned areas. Choosing Weisho Electric's Yh5wx-100/260E means opting for a safer, more reliable, and smarter line protection solution, significantly enhancing power supply continuity and reliability.

Core Advantages & Features: Innovative Technology, Worry-Free Protection

Weisho Electric's Yh5wx-100/260E Polymer Suspended Line Arrester, combining cutting-edge technology and rigorous craftsmanship, offers you the following core advantages:

• 1. Exceptional Energy Absorption & Limiting Capability (100kA High-Current Withstand):

• Technical Detail: Internally utilizes high-performance Metal Oxide Varistor (MOV) blocks, treated with a special formulation and precision sintering process, possessing non-linear V-A characteristics. The Yh5wx-100/260E model boasts a 100kA 2ms square wave high-current withstand capability, far exceeding industry standards, ensuring extremely low residual voltage even when absorbing high-energy lightning impulses, effectively limiting overvoltage.

• Key Benefit: In the event of severe lightning strikes, it can quickly conduct and absorb massive lightning energy while limiting overvoltage on the line to a safe level, significantly reducing lightning-induced tripping and damage risks to equipment such as line insulators, transformers, and circuit breakers, ensuring stable and safe grid operation.

• 2. Superior Anti-Pollution Flashover & Weather Resistance:

• Technical Detail: Features a high-quality silicone rubber composite housing, a material with excellent hydrophobicity, aging resistance, UV resistance, and electrical erosion resistance. The shed structure is optimized to increase creepage distance, effectively preventing pollution accumulation that leads to flashover.

• Key Benefit: Even in harsh environments with heavy pollution, salt spray, humidity, or strong UV radiation, the arrester maintains long-term reliable insulation performance, preventing pollution flashover trips. This is particularly suitable for highly polluted industrial areas, coastal regions, and sandy environments.

• 3. Safe Explosion-Proof Design, Ensuring Personal and Equipment Safety:

• Technical Detail: Employs multiple sealing structures and a special internal pressure release device, ensuring that the arrester can safely vent pressure in the event of extreme overload or internal faults, preventing block explosion and debris scattering. The product strictly adheres to explosion-proof standards.

• Key Benefit: Significantly enhances the operational safety of the equipment itself and the safety of surrounding personnel and equipment, minimizing the occurrence of secondary accidents and complying with stringent electrical safety regulations.

• 4. Lightweight & High Strength, Convenient for Installation and Maintenance:

• Technical Detail: Polymer materials replace traditional porcelain, greatly reducing the arrester's weight, while offering excellent bending strength and seismic performance. The suspended design allows for installation without additional support, directly connected in series on transmission lines or pole cross-arms.

• Key Benefit: Dramatically lowers transportation, installation difficulty, and costs, reduces construction periods and maintenance workload, and simultaneously enhances the line's resistance to damage from natural disasters such as earthquakes.

• 5. Long-Term Operational Reliability & Maintenance-Free Characteristics:

• Advantage: Internal components are well-sealed to prevent moisture ingress. High-quality MOV blocks ensure stable performance with no signs of aging. The polymer housing eliminates the need for regular cleaning and maintenance, significantly reducing operation and maintenance costs.

• Key Benefit: Ensures the arrester's long-term stable operation under severe working conditions, reducing fault rates and downtime, achieving true maintenance-free performance, and providing continuous assurance for grid operation.

Applications: Critical Lightning Protection for Power Transmission and Distribution Networks

Weisho Electric's Yh5wx-100/260E Polymer Suspended Line Arrester, with its excellent performance and flexibility, is widely applied in power transmission and distribution networks with voltage levels of 35kV and below, effectively solving lightning and switching overvoltage problems:

• Transmission and Distribution Line Lightning Protection: Directly installed on overhead transmission line poles/towers to protect line insulators from lightning flashover.

• Substation Incoming Line Protection: Serves as the first line of defense at the connection point between the substation and external lines, limiting overvoltage from entering the station.

• High-Voltage Side Protection of Distribution Transformers: Protects distribution transformers from lightning strikes and switching overvoltage damage.

• Cable Line Terminal Protection: Limits overvoltage at the ends of cable lines.

• High Pollution, Salt Spray, and Multi-Lightning Areas: The excellent anti-pollution flashover performance of the silicone rubber composite housing ensures reliable operation in harsh environments.

• Mountainous and High-Altitude Regions: Lightweight and high-strength, adaptable to complex terrain installation, and with good altitude adaptability.

• Urban-Rural Grid Modernization: Simplifies installation and improves line protection levels.

Technical Specifications & Standard Compliance

Weisho Electric's Yh5wx-100/260E Polymer Suspended Line Arrester strictly adheres to relevant international and domestic standards, ensuring its excellent performance and reliability.

Environmental Conditions

Main Electrical & Mechanical Parameters (Yh5wx-100/260E)

Quality Assurance & Authoritative Certifications

At Weisho Electric, our commitment to product quality is our cornerstone. The Yh5wx-100/260E Polymer Suspended Line Arrester adheres strictly to international quality management systems and industry standards, from design and raw material procurement to precision manufacturing and factory testing.

• ISO 9001 Quality Management System Certification: Ensures that every stage, from design and production to delivery, meets the highest quality standards.

• IEC 60099-4 Standard Compliance: Our product design and testing strictly conform to the latest International Electrotechnical Commission standards for gapless metal oxide arresters, ensuring global compatibility and reliability.

• China Compulsory Certification (CCC)

• CE Certification (Conformité Européenne)

Every Weisho Electric Yh5wx-100/260E arrester undergoes rigorous impulse current withstand tests, residual voltage tests, pollution flashover tests, and sealing performance tests before leaving the factory, ensuring reliable and safe line protection under all operating conditions. We possess advanced MOV block production lines and high-voltage testing laboratories, guaranteeing excellent quality from core components to the final product.

Installation & Maintenance: Simplified Deployment, Ensuring Continuous Operation

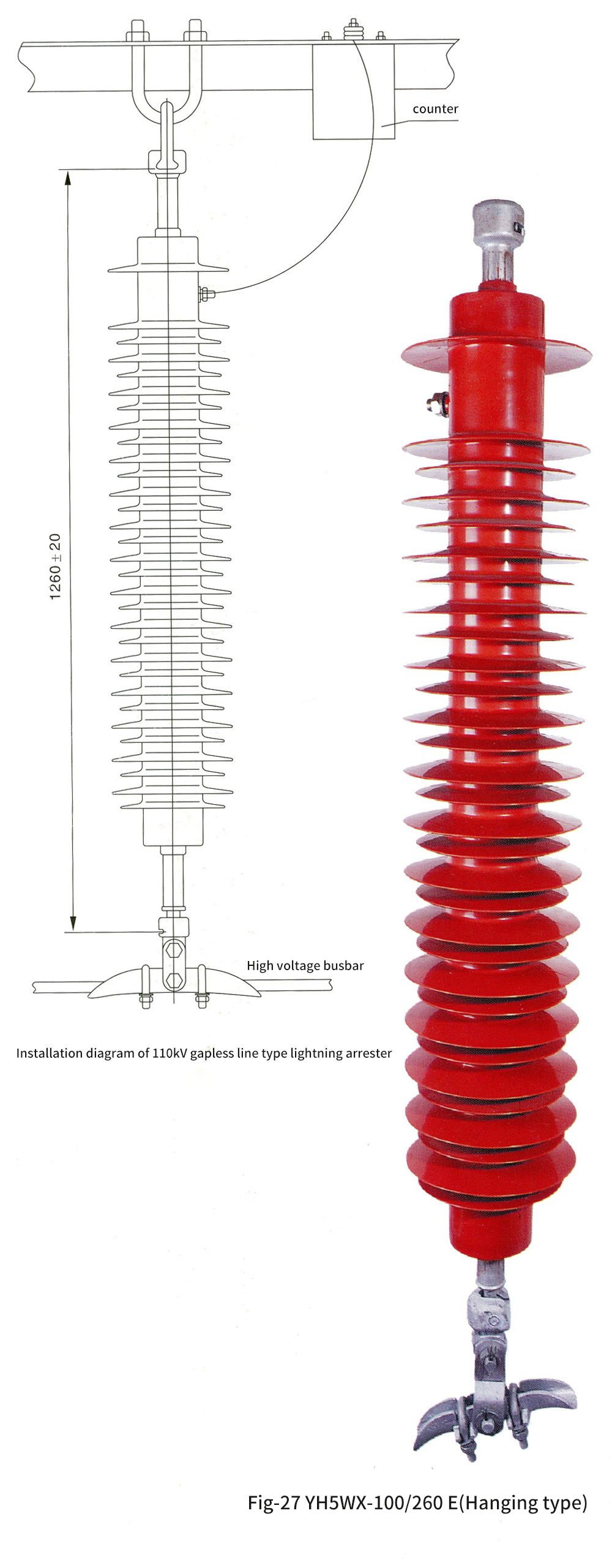

Weisho Electric's Yh5wx-100/260E Polymer Suspended Line Arrester features a compact suspended structure, is lightweight, and offers simple, quick installation. It can be easily connected in series or mounted on transmission line poles/towers. Its maintenance-free characteristic significantly reduces the frequency of routine inspections and maintenance, eliminating the need for regular cleaning and saving substantial operation and maintenance costs. We provide detailed installation manuals and professional on-site/remote technical support services to ensure the product operates safely and efficiently, offering long-term, reliable service.

Customer Testimonials: Professional, Trustworthy

Hear what our global customers have to say about Weisho Electric's Yh5wx-100/260E Polymer Suspended Line Arrester:

• "For a transmission line project in a high-lightning area of Texas, USA, we chose Weisho Electric's Yh5wx-100/260E arrester. Since its installation, the line's lightning trip rate has significantly decreased, and power supply reliability has greatly improved. The product's installation was also much faster than we anticipated."

• — Michael P. Jensen, Senior Engineer, US Power Transmission Company

• "In a heavily industrialized and polluted area of the Ruhr region, Germany, we faced severe line pollution flashover issues. Weisho Electric's Yh5wx-100/260E arrester effectively solved this problem with its exceptional anti-pollution flashover performance. Its maintenance-free nature also saved us significant labor costs."

• — Josef M. Schmidt, O&M Supervisor, German Industrial Power Services Company

• "Weisho Electric provided the Yh5wx-100/260E arrester for our transmission line project in Queensland, Australia, within a tropical climate. The product performed excellently in high humidity and strong UV environments, and its high energy absorption capability ensured line safety during thunderstorm seasons. We are highly satisfied with this collaboration."

• — Emily R. Davis, Project Manager, Australian New Energy Project

Expert Insight: Content Authored by Industry Professional

The detailed content on this page regarding the Yh5wx-100/260E Polymer Suspended Line Arrester is proudly presented by Engineer Thor from Weisho Electric.

Mr. Thor is a key technical backbone at Weisho Electric Co., Ltd., a prominent Chinese foreign trade manufacturer dedicated to serving clients across Europe, the Americas, the Middle East, Belt and Road Initiative countries, and globally. With 12 years of invaluable industry experience, he specializes in the R&D, design, testing, and application of high-voltage arresters, switchgear, and other power protection equipment, possessing a profound understanding and practical expertise in product technology, industry standards, and customer requirements.
