A Vacuum Circuit Breaker (VCB) acts as the primary protection mechanism in medium and high-voltage electrical systems. Unlike traditional switching devices, it utilizes a high-vacuum environment within a sealed vacuum interrupter to extinguish electrical arcs. When the contacts separate, the arc is quickly quenched due to the high dielectric strength of the vacuum, ensuring immediate circuit isolation. As a dedicated China Vacuum Circuit Breaker manufacturer, we engineer these devices to safeguard power grids, transformers, and industrial equipment from overloads and short circuits. They are the critical core component found within modern switchgear cabinets.
Key Features and Advantages of VCBs
Our vacuum circuit breakers are designed to deliver superior performance in power distribution networks, offering significant upgrades over oil or air-insulated alternatives.
| Feature | Benefit |
|---|---|
| High Dielectric Strength | The vacuum medium ensures rapid arc extinction and prevents re-ignition. |
| Maintenance-Free | Sealed contacts prevent oxidation, drastically reducing the need for servicing. |
| Compact Design | Lightweight and small footprint allow for easy integration into indoor and outdoor panels. |
| Safety & Durability | Non-explosive operation with a long mechanical life, suitable for frequent switching. |
Reliable Operation: Engineered for high stability in diverse environments, ensuring consistent protection and control.
Environmental Safety: No emission of gas or oil leakage, making them an eco-friendly choice for global infrastructure.
Cost Efficiency: The long service life of the operating mechanism minimizes downtime and replacement costs.
Types of Vacuum Circuit Breakers from China
As a dedicated manufacturer, we provide a diverse range of vacuum circuit breakers designed to meet specific operational environments and voltage requirements. Our product lineup ensures reliable protection and control for various electrical systems, catering to both domestic and international standards.
Indoor Vacuum Circuit Breakers (HV)

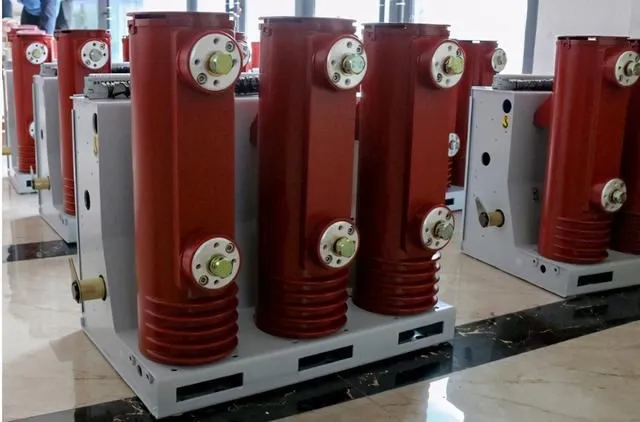

Our indoor units are engineered for seamless integration into air-insulated switchgear panels. These devices are critical for protecting transformers and distribution networks in controlled environments. The VCA-12 type is a prime example of our indoor MV circuit breaker solutions, offering a compact design and high mechanical endurance. They serve as the core operating mechanism within the switchgear, ensuring safety and rapid arc quenching during electrical faults.
Outdoor Vacuum Circuit Breakers (HV)

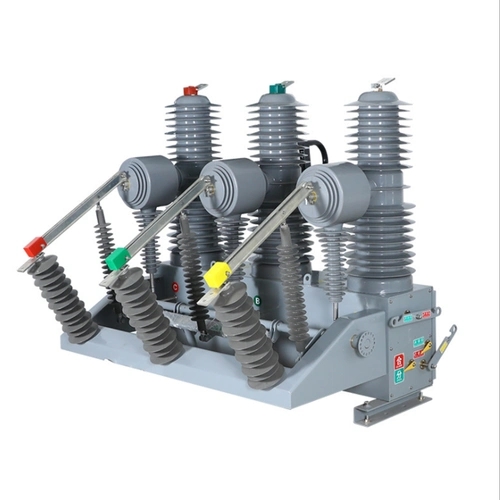

Designed to withstand harsh weather conditions, our outdoor VCBs are built for durability and long service life. The ZW32 series is a standout choice for overhead distribution lines, featuring excellent insulation and sealing technologies to prevent moisture ingress. When installing outdoor equipment, it is often necessary to pair them with protective components like a 6kV distribution type lightning arrester to safeguard the system against atmospheric surges.
Pole-Mounted and Auto Recloser VCBs
For overhead power distribution, pole-mounted breakers and auto reclosers are essential for grid resilience. These devices automatically detect transient faults and reclose the circuit, significantly minimizing downtime for the power system. Our auto reclosers come equipped with intelligent controllers that communicate with the grid, enhancing the reliability of both rural and urban distribution networks.
Specific Voltage Ratings (e.g., 11KV, 24KV, 33KV, 40.5KV)
We manufacture breakers tailored to standard medium voltage ratings to suit global grid specifications. Selecting the correct rated voltage is vital for system stability and safety.
11KV & 12KV: Widely used in residential and light industrial distribution.
24KV: Common in heavy industrial applications and specific regional grids.
33KV & 40.5KV: Ideal for main substations and high-load transmission interfaces.
When planning a substation project, it is beneficial to review related component costs, such as the 11kV load break switch price list, to ensure a cost-effective and compatible setup.
Technical Specifications and Parameters
When sourcing a china vacuum circuit breaker, understanding the technical parameters is critical for ensuring compatibility with your power system. We prioritize transparency in our data, ensuring every unit performs reliably under load. Whether you need a solution for a 12kV distribution network or a robust 40.5kV transmission line, our specifications align with global engineering requirements.
Essential Performance Data and Standards
Our equipment, such as the VCA-12 type indoor breaker and the outdoor ZW32 series, is built to handle rigorous electrical demands. These MV circuit breaker units utilize advanced operating mechanism designs—typically spring or permanent magnetic actuators—to ensure rapid switching and effective arc extinction.
To ensure safety and grid stability, our products comply with major international standards like IEC 62271-100 and GB 1984. Selecting the correct specifications is just as important as deciding on an indoor vs outdoor substation configuration for your facility.
Typical Technical Parameters:
| Parameter | Specification Range |
|---|---|
| Rated Voltage | 12kV / 24kV / 33kV / 40.5kV |
| Rated Current | 630A, 1250A, 1600A, up to 3150A |
| Rated Frequency | 50Hz / 60Hz |
| Short-Circuit Breaking Current | 20kA, 25kA, 31.5kA, 40kA |
| Mechanical Life | 10,000 to 20,000 Operations |
| Operating Mechanism | Spring / Permanent Magnetic |
| Installation Type | Fixed / Withdrawable (Handcart) |
We ensure that every high voltage breaker undergoes strict testing for insulation levels, temperature rise, and mechanical endurance before leaving the factory. This guarantees that the protection control devices function correctly during fault conditions, minimizing downtime for your operations.
Applications of Chinese Vacuum Circuit Breakers
Industrial and Commercial Use Cases
Our vacuum circuit breakers are engineered to handle the rigorous demands of modern industry. We understand that in manufacturing and commercial sectors, equipment downtime translates directly to lost revenue. That is why our VCBs, such as the VCA-12 type, are designed for high reliability during frequent operations. They serve as the primary line of defense for critical electrical systems, protecting assets like transformers, capacitor banks, and large motors from overloads and short circuits.
Common applications include:
Heavy Industry: Ideal for metallurgy and mining where frequent switching of electric arc furnaces is required.
Commercial Facilities: Used in the main switchgear of high-rise buildings and data centers to ensure continuous power.
Manufacturing: Safeguarding automated production lines against electrical faults.
Power Distribution and Grid Solutions
Beyond individual facilities, our products are integral to the stability of regional power distribution networks. Utility companies and grid operators rely on our outdoor vacuum circuit breakers, like the ZW32 series, for rural and urban grid reconstruction. These devices effectively isolate faults to prevent widespread blackouts.
To create a robust distribution network, our breakers are often deployed alongside other key components:
Urban Grids: We integrate VCBs into compact solutions like the HCM-12 gas-insulated metal-enclosed ring main unit, which is perfect for space-constrained city environments.
Overhead Lines: For outdoor pole-mounted setups, combining a recloser VCB with a 10kV drop type lightning arrester ensures the system remains safe from atmospheric overvoltages and surges.
Why Choose Chinese Vacuum Circuit Breaker Manufacturers?
Sourcing a china vacuum circuit breaker is a strategic move for businesses looking to balance cost-efficiency with high-performance engineering. As a dedicated supplier and manufacturer, we focus on delivering value that goes beyond just the price tag, ensuring your power system remains stable and safe.
Quality, Reliability, and Certifications
Modern Chinese factories have shifted focus toward rigorous quality assurance. We ensure that every high voltage breaker leaving our floor meets stringent international safety standards. Reliability is the core of our production; our devices are built to handle frequent switching operations and provide superior protection against faults.
Strict Testing: Every unit undergoes mechanical and electrical endurance testing.
Global Standards: We align with IEC and other relevant certifications to ensure compliance.
Durability: Designed for long service life in both indoor and outdoor environments.
Investing in quality hardware reduces downtime significantly. While knowing how to analyze and resolve 35kV circuit breaker faults is essential for maintenance teams, starting with a reliable, certified product is the best prevention against unexpected outages.
OEM/ODM Options and Customization
One size rarely fits all in electrical distribution devices. We offer extensive OEM and ODM services to tailor the operating mechanism and specifications to your exact project needs. Whether you need a specific rated voltage or a unique housing for a ZW32 series unit, we have the engineering capability to deliver.
Customization Capabilities:
| Feature | Options Available |
|---|---|
| Voltage Classes | 12kV, 24kV, 35kV, 40.5kV |
| Installation Type | Fixed, Draw-out, Pole-mounted |
| Actuation | Spring or Permanent Magnet Mechanism |
| Branding | Private labeling for global partners |
By choosing specialized China Vacuum Circuit Breaker Manufacturers, Factory, you gain a partner willing to adapt the AC contactor and switchgear designs to fit your local grid requirements perfectly.
