How a Pole Mounted Vacuum Circuit Breaker Works
The core function of a pole mounted vacuum circuit breaker relies on a high-vacuum environment to ensure rapid arc extinguishing. When a fault is detected in the power distribution network, the breaker’s internal contacts immediately separate. Because a vacuum contains no ionizable gas, the electrical arc cannot sustain itself and is extinguished precisely at the first current zero-crossing. This rapid, highly efficient response completely cuts off the fault current, protecting your infrastructure from catastrophic damage caused by severe overloads or short circuits.
Core Components and Operation Principles
To execute reliable switching operations in demanding outdoor environments, the system relies on perfectly synchronized parts. The seamless interaction between these parts guarantees maximum grid stability.
Vacuum Interrupter: The absolute heart of the breaker. It houses the stationary and moving contacts within a permanently sealed vacuum chamber, ensuring maintenance-free insulation and rapid arc quenching.
Operating Mechanism: A robust spring or magnetic actuator system. It delivers the precise mechanical force required to rapidly drive the contacts open or closed during automated or manual switching.
Intelligent Control Cabinet: The command center of the unit. It continuously monitors load currents, processes signals from protective relays, and instantly triggers the operating mechanism when it detects grid anomalies.
Insulating Enclosure: Crafted from advanced solid-sealed or UV-resistant silicone rubber, this housing protects the live components from harsh weather, moisture, and extreme temperature fluctuations.
Key Features and Benefits of Pole Mounted VCBs
When upgrading a power distribution network, choosing the best pole mounted vacuum circuit breaker makes all the difference in system reliability. We design our outdoor switchgear to deliver top-tier performance, ensuring your utility grid runs smoothly under the toughest conditions.
Compact and Lightweight Outdoor Design

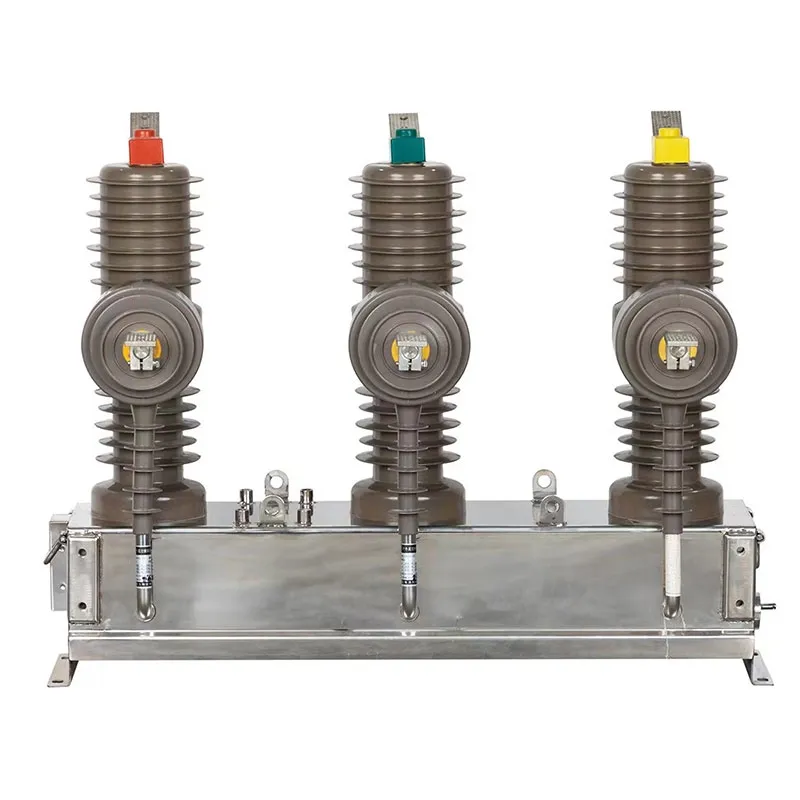

We build our vacuum circuit breakers with a highly optimized, integrated design. Models like the ZW32 and ZW20 series are engineered to be exceptionally lightweight. This minimizes the physical stress on your overhead lines and support poles.
Featuring a rugged, solid-sealed design, these breakers are built specifically for challenging outdoor environments. Whether you are dealing with standard 24kV or 33kV systems, the compact footprint ensures installation is fast and requires minimal structural reinforcement.
High Durability and Low Maintenance
One of the biggest advantages of our pole mounted vacuum circuit breaker is its incredible durability. Because the arc extinguishing chamber is sealed within a vacuum, the internal components are completely protected from dust, moisture, and corrosion. This makes our medium voltage and high voltage units practically maintenance-free over their entire lifespan.
To fully secure your outdoor power infrastructure from unexpected electrical surges and extreme weather, integrating a high-quality lightning arrester alongside your VCB is a critical step for comprehensive equipment protection.
Fast, Safe, and Cost-Effective Operation
Speed and safety are non-negotiable for industrial applications and city grids. As an intelligent pole mounted recloser, these units execute rapid switching operations to isolate faults instantly. The built-in auto recloser function automatically attempts to restore power after temporary faults, significantly reducing downtime and manual maintenance costs.
Core Benefits at a Glance:
| Feature | Direct Benefit for Overhead Lines |
|---|---|
| Solid-Sealed Design | Weather-proof and completely maintenance-free. |
| **Auto RecloserAuto Recloser Capability | Drastically reduces power outage durations. |
| Integrated Structure | Lowers installation and operational costs. |
| Vacuum Technology | Safe, spark-free arc extinguishing. |
By prioritizing these key features, we ensure our outdoor switchgear delivers unmatched safety and cost efficiency for any modern power system.
Main Types and Voltage Classifications
When selecting the best pole mounted vacuum circuit breaker for your power distribution network, matching the right voltage class to your overhead lines is step one. We categorize these units into two primary voltage series and two main design structures to fit the diverse needs of the global utility grid.
Medium Voltage (6kV – 35kV) Series
For standard municipal grids and heavy commercial applications, our medium voltage series is the practical choice. These AC high-voltage units operate seamlessly on both 50Hz and 60Hz systems.
Common Ratings: The most widely deployed configurations globally sit at 12kV, 24kV, and 33kV.
Leading Models: The ZW32 and ZW20 series dominate this category, providing rapid arc extinguishing for daily switching operations.
Use Case: Ideal for upgrading local outdoor switchgear and integrating with modern smart grids.
High Voltage (Up to 145kV) Series
When pushing power across regional distances or managing massive industrial substations, a high voltage vacuum circuit breaker is required. These units handle heavy load capacities and ensure stability across extensive power distribution networks. Because
Common Ratings: The most widely deployed configurations globally sit at 12kV, 24kV, and 33kV.
Leading Models: The ZW32 and ZW20 series dominate this category, providing rapid arc extinguishing for daily switching operations.
Use Case: Ideal for upgrading local outdoor switchgear and integrating with modern smart grids.
High Voltage (Up to 145kV) Series
When pushing power across regional distances or managing massive industrial substations, a high voltage vacuum circuit breaker is required. These units handle heavy load capacities and ensure stability across extensive power distribution networks. Because the stakes are higher at this voltage, proper network planning is critical—similar to knowing the [key questions to ask before buying disconnect switches](https://www.we
Common Ratings: The most widely deployed configurations globally sit at 12kV, 24kV, and 33kV.
Leading Models: The ZW32 and ZW20 series dominate this category, providing rapid arc extinguishing for daily switching operations.
Use Case: Ideal for upgrading local outdoor switchgear and integrating with modern smart grids.
High Voltage (Up to 145kV) Series
When pushing power across regional distances or managing massive industrial substations, a high voltage vacuum circuit breaker is required. These units handle heavy load capacities and ensure stability across extensive power distribution networks. Because the stakes are higher at this voltage, proper network planning is critical—similar to knowing the key questions to ask before buying disconnect switches to guarantee your equipment integrates flawlessly with the rest of your system.
Insulator Type vs. Tank Type Designs
Beyond voltage ratings, the physical build of the breaker dictates how it performs on your overhead lines. Here is a direct comparison of the two dominant architectural designs:
| Design Feature | Insulator Type | Tank Type |
|---|---|---|
| Core Structure | Vacuum interrupters are housed inside individual epoxy or silicone insulators. | All three phases are enclosed within a single, grounded metal tank. |
| Weight & Handling | Significantly lighter, making them easier and faster to mount on standard utility poles. | Heavier footprint, requiring stronger mounting brackets. |
| Best Application | Standard outdoor environments where quick installation and low pole stress are priorities. | Harsh, extreme climates where internal components need maximum physical shielding. |
Both styles utilize a solid-sealed design to deliver maintenance-free reliability. Your final choice simply comes down to your local weather conditions and the load-bearing capacity of your existing poles.
Typical Applications and Operating Conditions
Outdoor Power Transmission and Distribution Systems
The best pole mounted vacuum circuit breaker is the backbone of a reliable power distribution network. We engineer these units specifically for overhead lines, ensuring they perform consistently in both utility grid setups and heavy-duty industrial applications. Because they are fully exposed to the elements, they function as rugged outdoor switchgear, handling daily switching operations and protecting critical infrastructure. When configuring distribution substations, evaluating the specific requirements of outdoor vs indoor VCB setups makes it clear why pole-mounted designs are indispensable for long-distance outdoor power transmission.
Smart Grid and Auto Recloser Integration
Modern electrical networks require immediate fault response. Our equipment is designed for deep smart grid integration, utilizing a reliable reclosing function to clear temporary faults before they cause widespread outages.
Pole Mounted Recloser: Automatically restores power after a transient fault, drastically reducing downtime and maintenance costs.
Intelligent Circuit Breakers: Industry-standard models like the ZW32 and ZW20 feature an integrated design. They pair the primary breaker with an advanced control cabinet to form a complete, self-monitoring protection system.
Rapid Fault Isolation: Safely and quickly isolates both overload current and short circuit current to maintain grid stability.
Normal Environmental Use Conditions
Operating in unpredictable outdoor environments demands robust construction. We utilize a solid-sealed design to ensure the core arc extinguishing components remain completely isolated from external elements, resulting in a virtually maintenance-free lifespan.
Standard Operating Parameters:
Temperature Range: Built to withstand extreme fluctuations, from freezing winters to peak summer heat.
System Frequency: Fully compatible with standard AC high-voltage 50Hz and 60Hz networks.
Altitude & Humidity: Designed for stable operation at standard elevations (typically up to 1000m, with high-altitude options available) and high-humidity climates.
Weather Resistance: The enclosure provides superior protection against wind, rain, ice, and prolonged UV exposure.
Essential Technical Specifications to Consider
When I help clients select the best pole mounted vacuum circuit breaker for their power distribution network, getting the technical specs right is my top priority. It all comes down to matching the hardware precisely to your grid’s everyday demands and emergency scenarios.
Rated Voltage, Current, and Breaking Capacity
Your system needs a breaker that handles both daily loads and sudden faults without failing. Whether your grid operates on standard 50Hz or 60Hz frequencies, these core electrical ratings keep your overhead lines secure.
| Specification | What It Means | Why It Matters |
|---|---|---|
| Rated Voltage | The maximum operating voltage (e.g., 24kV, 33kV). | Ensures your medium voltage equipment safely handles standard grid stress. |
| Rated Current | The continuous load current the unit carries daily. | Prevents overheating during regular switching operations. |
| Breaking Capacity | The maximum short circuit current it can interrupt safely. | Protects your entire system from severe overloads and catastrophic arc damage. |
Accurate monitoring is a vital part of this protective setup. For precise grid readings, pairing your breaker with a high-quality voltage transformer ensures your control cabinet receives the exact signals needed to trigger the protection system instantly.
Clearance, Insulation, and Dimensional Drawings
Physical layout matters just as much as electrical power, especially when dealing with harsh and unpredictable outdoor environments.
Clearance Distances: Maintaining proper spatial spacing is mandatory to prevent arc flashes between phases or to the ground.
Insulation Levels: I always recommend a solid-sealed design to protect the core vacuum interrupter from moisture, heavy dust, and UV degradation.
Dimensional Drawings: Always verify the physical footprint and mounting brackets. Correct sizing guarantees a hassle-free installation on your existing utility grid poles.
How to Choose the Best Pole Mounted Vacuum Circuit Breaker
Selecting the best pole mounted vacuum circuit breaker for your utility grid or industrial applications comes down to matching specs, checking controls, and trusting the manufacturer. We know that equipment failure on overhead lines isn’t an option. Here is how you lock in the right choice for your power distribution network.
Matching Your Power System Requirements
Your first step is aligning the breaker’s capabilities with your specific electrical load. Whether you are dealing with AC high-voltage systems at 50Hz or 60Hz, the breaker must handle your normal load current, overload current, and short circuit current without breaking a sweat.
Voltage Needs: Identify if your system requires a medium voltage or high voltage rating. Typical setups in distribution substations usually demand 24kV or 33kV parameters.
Environmental Fit: For harsh outdoor environments, prioritize a solid-sealed design. For instance, choosing an outdoor high-voltage vacuum circuit breaker like the ZW32 ensures reliable arc extinguishing and long-term durability against the elements.
Evaluating Control Units and External Accessories
A modern pole mounted vacuum circuit breaker is more than just a switch. Today’s intelligent circuit breakers rely on advanced external components to automate and protect the grid efficiently.
Control Cabinet: Make sure the external cabinet integrates smoothly with your existing protection system.
Auto Recloser Integration: A pole mounted recloser needs a rapid and reliable reclosing function. This clears temporary faults automatically and drastically reduces manual switching operations.
Integrated Design: Look for seamless connectivity between the breaker and its accessories to simplify installation on outdoor switchgear.
Assessing Manufacturer Reliability and Warranty
Heavy-duty models like the ZW32 or ZW20 should operate flawlessly for years. We always recommend evaluating a manufacturer based on material quality, long-term warranty terms, and field-tested reliability.
Quick Checklist for Manufacturer Evaluation:
| Criteria | What to Look For |
|---|---|
| Build Quality | Robust solid-sealed poles and highly efficient arc extinguishing chambers. |
| Maintenance | Claims of a “maintenance-free” lifespan must be backed by a comprehensive warranty. |
| Parts & Support | Fast access to replacement parts, such as control units or high voltage fuses. |
| Track Record | Proven, global success protecting overhead lines and distribution substations. |
