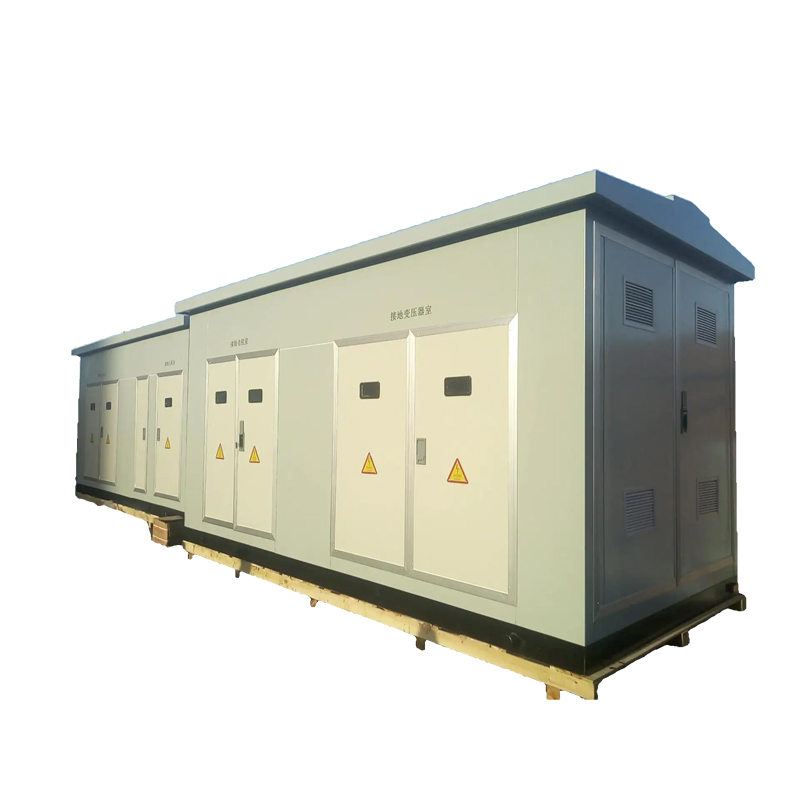

Energy Storage Integrated Box Type Transformer
Energy Storage Integrated Box-Type Transformer
This all-in-one energy storage box transformer integrates power conversion, distribution, and energy storage systems into a single, modular enclosure. It offers a smart, space-saving solution for renewable energy grids, industrial microgrids, and emergency backup systems.
Key Features
Integrated Architecture: Combines transformer, energy storage battery pack, inverter, BMS, and EMS into one sealed unit.
High Efficiency: Reduces power loss through short internal wiring and intelligent control.
Flexible Power Management: Supports time-of-use shifting, load balancing, and off-grid applications.
Smart Monitoring: Equipped with real-time monitoring and remote diagnostics.
Structural Highlights
Divided into battery room, transformer chamber, and low-voltage distribution room with independent access and ventilation.
Equipped with thermal insulation, air conditioning, and optional fire suppression systems for safe, long-term outdoor use.
Rugged steel shell with anti-corrosion treatment and IP54 or higher protection grade.
Designed for plug-and-play installation with minimal civil engineering requirements.
Typical Applications
Renewable Integration: Seamlessly connects solar and wind energy systems to the grid.
Peak Load Management: Stores energy during off-peak hours and discharges during demand peaks.
Industrial Parks: Provides reliable backup and smooth load operation during power fluctuations.
Telecom & Data Centers: Ensures uninterrupted power supply and emergency response.
Operating Conditions
Installation Type: Outdoor or semi-outdoor
Altitude: ≤ 3000m
Ambient Temperature: -35°C to +55°C
Relative Humidity: ≤ 95% (non-condensing)
Seismic Rating: Up to Level 8
Cooling System: Forced air or air conditioning, depending on battery configuration
Note: Specifications can be customized to meet specific energy storage system requirements and regional standards.
