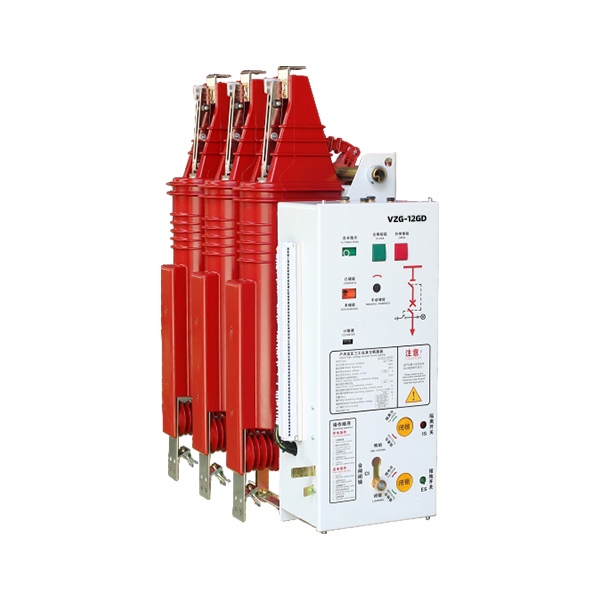

VZG-12GD Indoor 12kV Three-Station Vacuum Circuit Breaker

**Product Overview**

The VZG-12GD series indoor high-voltage three-station vacuum circuit breaker

offers outstanding electrical and mechanical performance, along with a reliable

and stable mechanism and long service life. The main circuit features fixed sealing

columns, enhancing the environmental adaptability and insulation reliability of

the breaker. Its exceptional mechanical and electronic performance extends its

lifespan, making maintenance-free operation possible.

This circuit breaker is ideal for use in 3.6–12kV power systems, serving as both

a power grid device and a protection and control unit for power systems in

industrial and mining enterprises. It is suitable for various load types,

frequent operations, and environments where short-circuit currents are

frequently disconnected.

The product includes complete mechanical and electrical interlocking devices,

ensuring high operational stability and reliability, thereby safeguarding both

operators and electrical systems.

The breaker adopts fixed sealing technology and a modular frame structure that

integrates compact high-performance components, such as isolation switches,

sealed vacuum circuit breakers, grounding switches, sensors, interlocking

mechanisms, and operating mechanisms. It is compatible with cabinet dimensions

of 450×1000×1800 mm.

It features a rotary isolation switch with a visible fracture after opening.

There is a mandatory mechanical interlock between the isolation switch, circuit

breaker, and grounding switch to prevent misoperation.

Its modular operating mechanism allows for independent replacement or maintenance,

with strong interchangeability. Operation can be manual or remotely controlled

via AC or DC energy storage. Additionally, the cabinet door and grounding switch

include a secure interlocking structure to ensure operator safety.

Technical Parameter

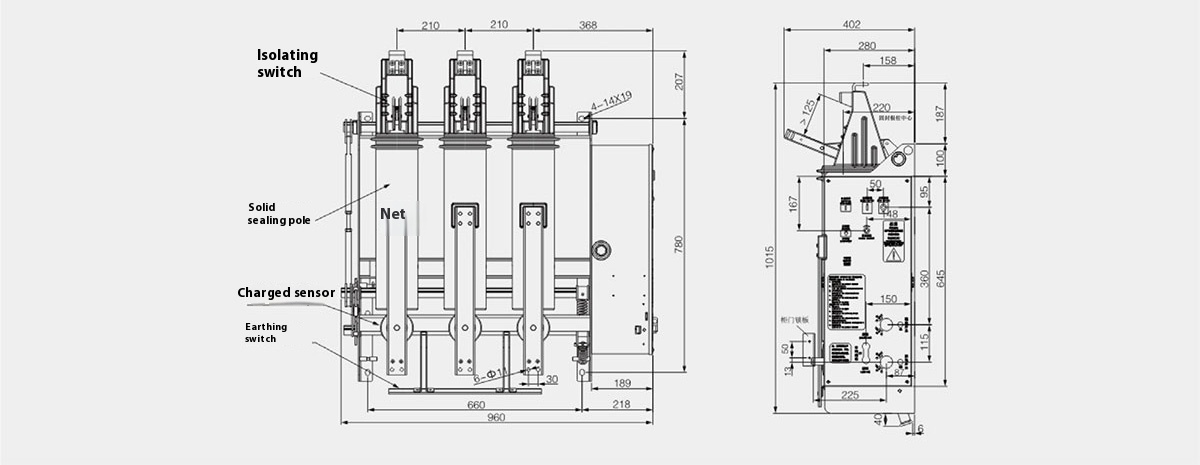

Installation size
