Mid-Mounted Fuse Handcart – Modular Fuse Trolley for Indoor Switchgear Integration

Adaptable Handcart Module for 12kV Indoor Vacuum Circuit Breaker Panels

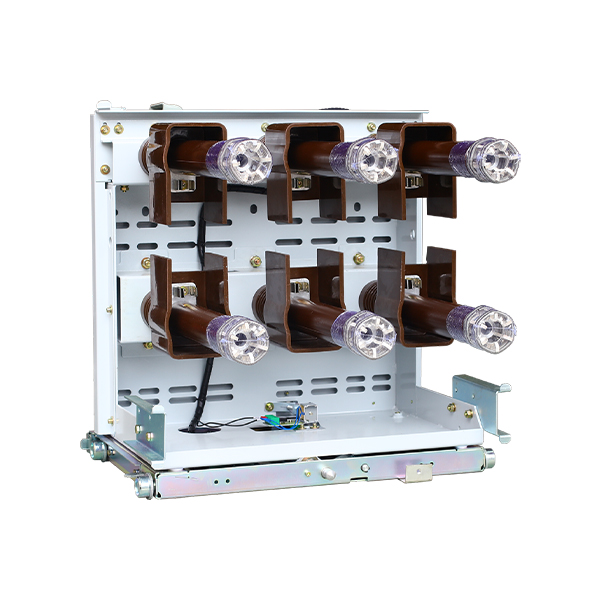

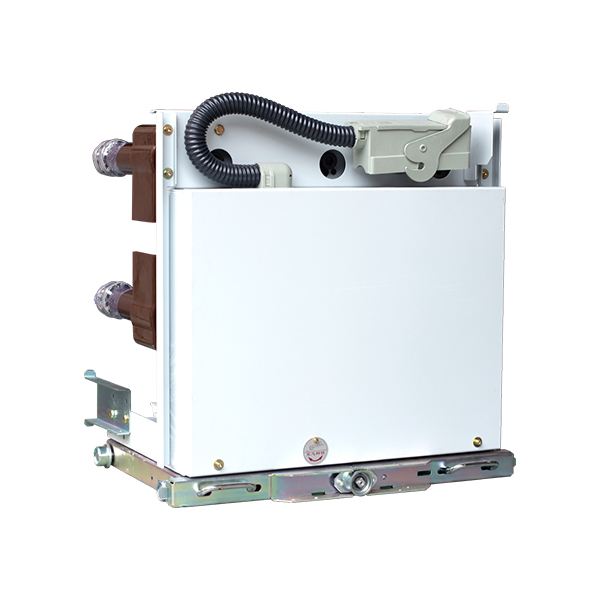

The Mid-Mounted Fuse Handcart is a specialized movable fuse compartment designed to integrate seamlessly with indoor switchgear panels, particularly those using 12kV vacuum circuit breakers (VCBs). It enables safe, modular replacement of fuses and provides an additional layer of protection within metal-enclosed switchgear assemblies.

This unit is widely compatible with VS1, ZN63A(VS1), and similar mid-mounted VCB frames, providing enhanced flexibility in power distribution cabinets, RMUs, and switchgear trolleys.

🔧 Key Specifications

Parameter	Value
Rated Voltage	12kV
Rated Current	100A–630A (depends on fuse selection)
Installation Type	Mid-mounted, plug-in, trolley-based
Applicable Fuse Type	XRNT type (current-limiting fuse)
Interlocking System	Mechanical + electrical
Matching Equipment	VS1, ZN63A indoor VCBs
Operation	Manual push-pull, racking mechanism
Safety Standard	GB 3906 / IEC 62271-200

🔍 Key Functional Features

• Mid-mounted design ensures balanced mechanical stress in the switchgear panel

• Racking-type handcart structure for quick insertion/removal

• Equipped with a mechanical interlock to prevent maloperation under load

• Supports fast fuse replacement in secondary substations

• Fully enclosed arc-safe metal enclosure design

• Optional CT/PT slots and fuse condition monitoring

🏭 Application Scenarios

• Indoor 12kV metal-clad switchgear systems

• Secondary substations and transformer rooms

• Modular switchboards in utility power rooms

• MV equipment using VCB + fuse coordination

• Retrofitting of old oil switchgear or air circuit units

🌍 Verified Client Feedback (Global Utilities)

🗣️ Michael J., Senior Engineer – RTE France
“We implemented mid-mounted fuse hand carts to improve operational safety in confined substations.”
📌 Source: RTE Indoor Switchgear Upgrade Memo, 2022

🗣️ Henry S., Substation Technician – TNB Malaysia
“Compatible with our ZN63A breakers. Simple installation and smooth racking mechanism.”
📌 Source: TNB Internal Review of Switchgear Retrofit, 2023

🗣️ Daniel B., MV Panel Designer – Iberdrola, Spain
“The handcart modularity reduced panel width by 12% and made fuse replacement safer.”
📌 Source: Iberdrola Medium Voltage Panel Report, 2022

🗣️ Emma T., Protection Systems Lead – EDF UK
“The interlock mechanism works reliably, even during cold starts. No misoperations during testing.”
📌 Source: EDF Safety Audit Log, Q4 2023

🗣️ Jason M., Procurement Officer – Enmax, Canada
Works well with CT integration. The XRNT fuse combination provides fast fault clearance.”
📌 Source: Enmax Switchgear Project Documentation, 2023

❓ FAQ – Mid-Mounted Fuse Handcart

• Can this handcart be customized for other circuit breaker types?
Yes, it can be adapted to fit different mid-mounted breaker models like VD4 or VBI upon request.

• What fuses are recommended for this handcart?
Typically, XRNT-12 series fuses are used. Fast-acting current-limiting types are preferred for transformer protection.

• Does it require special tooling for operation?
No, it uses a manual screw or lever mechanism with optional motorized upgrade available.

• Can it be integrated with existing switchgear?
Yes, especially in retrofitting projects involving VS1, ZN63, or equivalent switchgear frames.

• What’s the benefit over fixed fuse compartments?
Mobility and modularity. It allows safer offline fuse replacement, reducing downtime during faults.

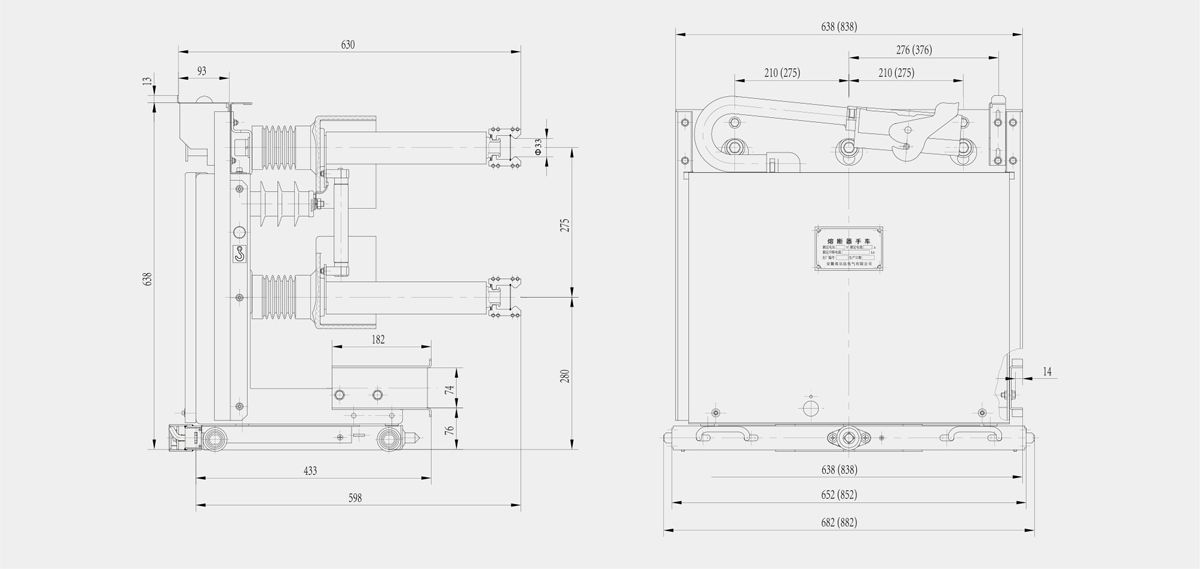

📩 Need Handcart Drawings or Fuse Compatibility Chart?

Thor – Electrical Engineer, Wei Shoe Elec
📞 Tel: +86-0577-62788197
📱 WhatsApp: +86 159 5777 0984
📧 Email: thor@weishoelec.com

Choose a smart and safe fuse handcart system for your indoor MV switchgear. The Mid-Mounted Fuse Handcart combines flexibility, safety, and reliable fault isolation in a compact structure.
