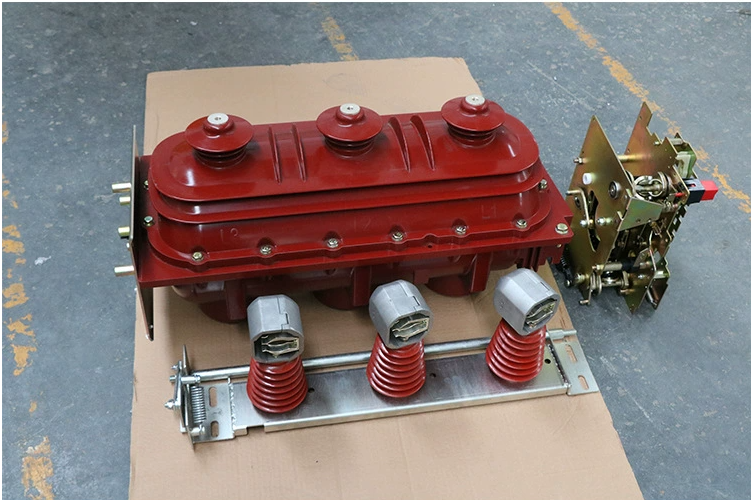

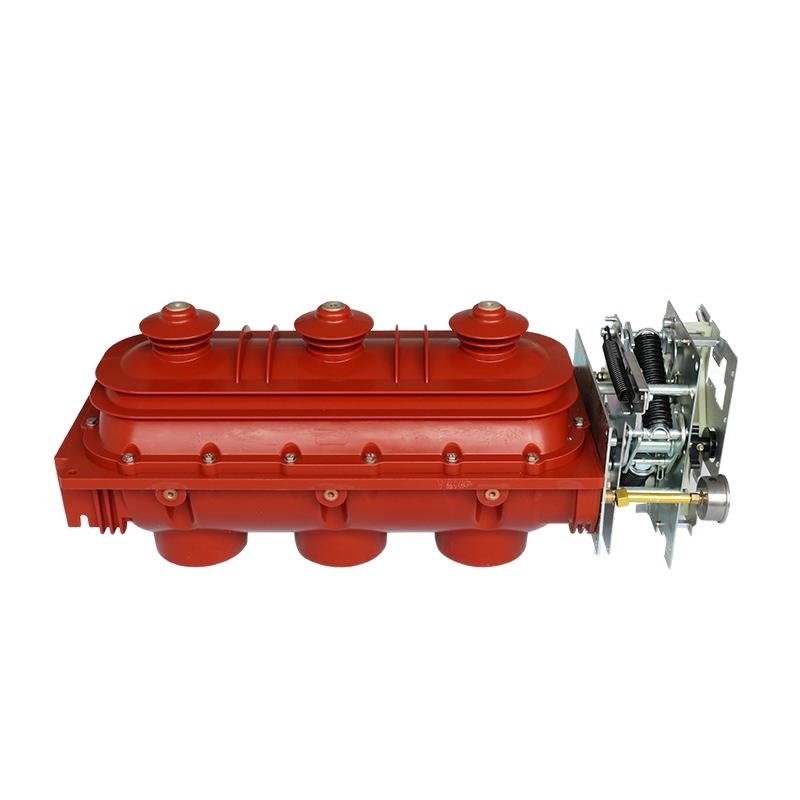

FLN36-12D SF6 Load Break Switch – Compact Indoor Solution for Safe 12kV Distribution

Product Size and Parameters

The FLN36 - 12 type sulfur hexafluoride load switch is a multifunctional medium-voltage switching device that integrates a load switch, a grounding switch, and an isolating switch. It is enclosed in a fully sealed epoxy resin shell with a reinforced structure and filled with SF6 gas at 0.045 MPA. With a small number of components, it realizes the above three functions, thus ensuring the quality and reliability of the product. It has excellent insulation and switching functions, and can ensure the safe operation of the equipment for 20 years under normal conditions.

The circuit and grounding circuit are switched on and off by a manual or electric operating mechanism independent of the switch. The switching speed of the switch is determined by the spring and has nothing to do with the manual speed. After installing automation instruments, remote sensing and remote control can be realized.

Parameter	Value
Rated Voltage	12 kV
Rated Current	630 A
Rated Short-Circuit Making Current	50 kA/peak
Rated Short-Time Withstand Current	20 kA / 2s
Insulation Medium	SF₆ gas, sealed tank
Mechanical Life	≥ 5000 operations
Electrical Endurance	≥ 100 operations at rated load
Rated Frequency	50/60 Hz
Standards Complied	IEC 62271-103 / GB 3804
