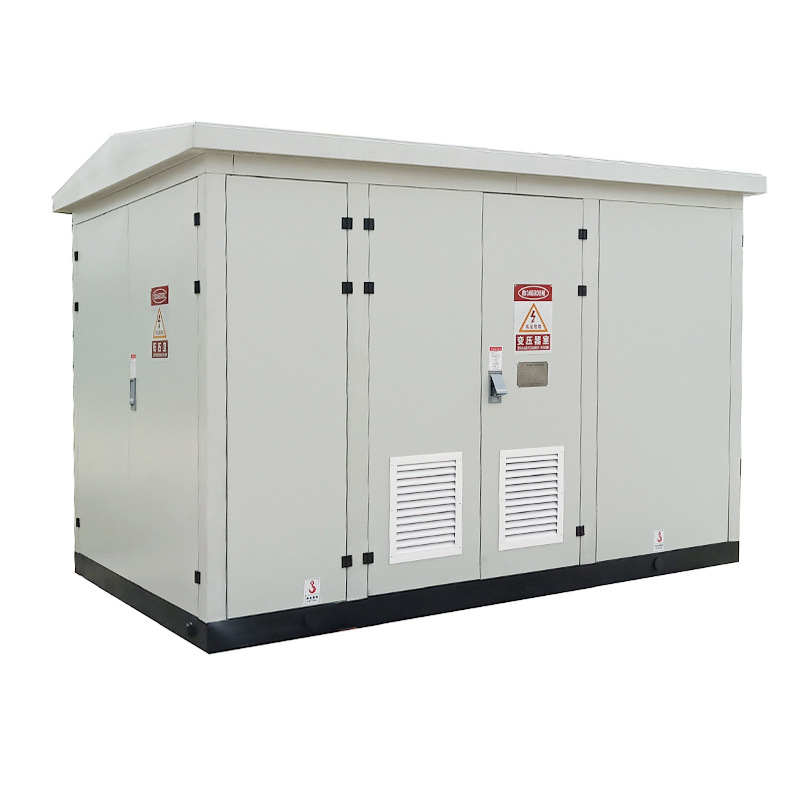

PV Energy Storage Compact Substation for Efficient Power Use

A photovoltaic energy storage unit substation is designed for photovoltaic power generation systems, integrating solar power generation with energy storage technology. It converts solar energy into electricity for daily use and stores excess energy for emergency backup. This equipment maximizes solar energy during sunny days and provides a stable power supply at night or on cloudy days through the energy storage system.

Product Features:

1.  High Reliability and Energy Efficiency:

The battery pack and energy storage system provide stable power, minimizing sudden power fluctuations. This ensures the photovoltaic power system operates efficiently in harsh climates. The energy storage system also optimizes energy allocation, avoiding over- or undersupply, thus improving energy efficiency and reducing consumption.

2.  Compact Structure and Sealing:

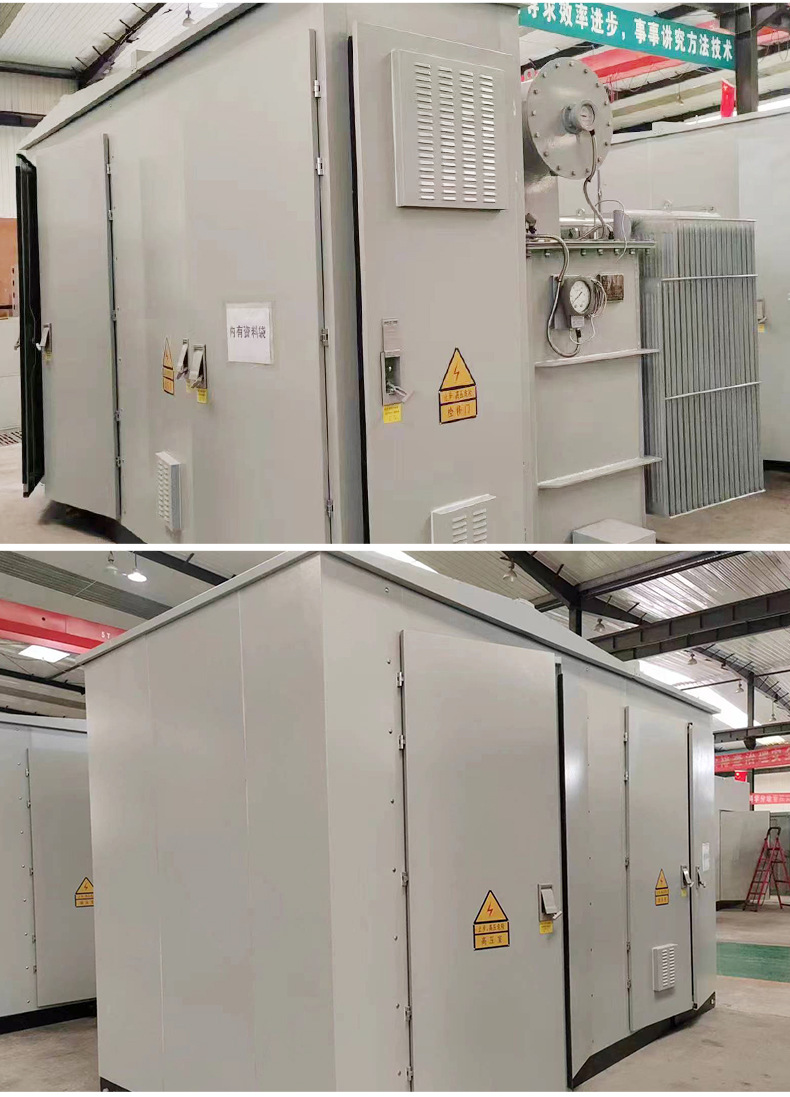

The substation has six compartments: transformer room, high-voltage room, low-voltage room, test room, switch operation room, and fuse room. Its compact, sealed design ensures excellent performance and long service life.

3.  Modular Design:

The power station can be arranged in a "mesh" or "product" shape, offering flexible installation and space utilization. It can also be customized based on the customer’s site requirements.

4.  Advanced Sealing Technology:

Vacuum oil injection technology is used during packaging to remove moisture from the transformer, ensuring excellent insulation performance and long service life.

5.  Strong Environmental Adaptability:

The pre-installed photovoltaic box transformers are made with anti-corrosion, high-strength steel shells. They feature fire prevention, constant temperature control, heat insulation, strong ventilation and dust/sand prevention capabilities.     Applications of Energy Storage Photovoltaic Prefab Substation:

1.  Power Systems:

Used as backup power to enhance stability and reliability, while also serving as a peak-shaving power source to optimize load distribution.

2.  Urban Distribution Networks:

Functions as a backup for urban distribution networks, improving stability and reliability, and serving as a peak-shaving power supply to optimize load management.

3.  Industrial Applications:

Serves as backup power in industrial environments, improving production stability and reliability. It can also act as a peak-shaving power supply to optimize industrial production efficiency.

4.  Commercial Applications:

Used as backup power for commercial operations, ensuring reliability and stability. Additionally, it helps to increase efficiency through peak-shaving power supply.
