Sled-Mounted Mining Substation for Harsh Environments

🛠 Purpose-Built for Mining and Tunnel Applications

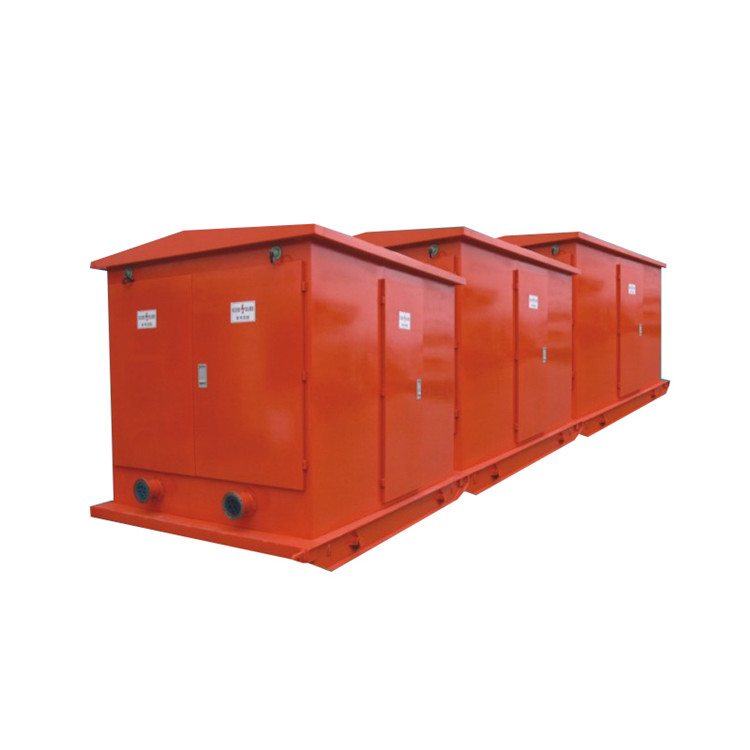

The Mining Mobile Substation is a skid-mounted, prefabricated unit designed to supply reliable power in rugged mining and tunneling environments. Unlike traditional fixed substations, this mobile solution is engineered for frequent relocation, compact spaces, and extreme operating conditions such as dust, vibration, and humidity.

Integrated with a high-performance oil-immersed transformer, high-voltage incoming cabinet, low-voltage outgoing cabinet, and protective relay systems, the substation ensures safe and efficient power distribution in coal mines, metallic mineral sites, and infrastructure tunnels.

🔍 Key Features at a Glance

🏞 Designed for Real Mining Challenges

This unit meets the complex demands of underground and surface mining, supporting the following scenarios:

• Coal Mines: Compact enough to pass through haulage roadways and resist coal dust

• Metal Ore Mines: Withstands high mechanical impact and temperature swings

• Tunneling: Enables decentralized power supply along progress lines

• Temporary Installations: Fast plug-and-play deployment with minimal grounding

Compared with conventional substations, it saves over 60% in relocation time, and can be configured with explosion-proof elements if required by national mining safety codes.

🔒 Built-In Protection & Safety Options

• Primary side: Vacuum circuit breaker or gas-insulated LBS

• Secondary side: MCCB/ACB low-voltage breakers

• Optional surge arresters, leakage protection, and insulation monitoring

• Grounding system compliant with GB50059-2011

• All components are pre-tested before delivery

💬 What Mining Operators Say

• ⭐⭐⭐⭐⭐ "The mobility of this unit fits perfectly with our tunnel advancement schedule. Works great in wet, narrow shafts."
  — D. W. Harris, Operations Supervisor, Tenbridge Mining, USA

• ⭐⭐⭐⭐ "We’ve been using these in South African manganese pits. Easy forklift access and no oil leaks after 18 months."
  — Thabo Nkosi, Electrical Technician, Mamatwan Mining

• ⭐⭐⭐⭐⭐ "Brilliant insulation performance under dusty copper mine environments. Maintenance-free for over a year."
  — Carlos Medina, Site Engineer, Peru Andes Metal

• ⭐⭐⭐⭐ "Relocated across four open-pit sectors within a year, zero downtime. Excellent thermal stability."
  — Gavin Smith, Power Lead, Pilbara Resources, Australia

• ⭐⭐⭐⭐⭐ "Compact footprint and reliable output. Meets our tunneling power standards in Bavaria."
  — Elena Fischer, Utility Manager, DRB Bau GmbH, Germany

🏭 About the Manufacturer

Wei Shoe Elec is a certified manufacturer of medium- and high-voltage power distribution systems. We produce all mining substations in compliance with ISO9001, ISO14001, and ISO45001. All products undergo routine type tests and can be customized for local regulatory requirements.
