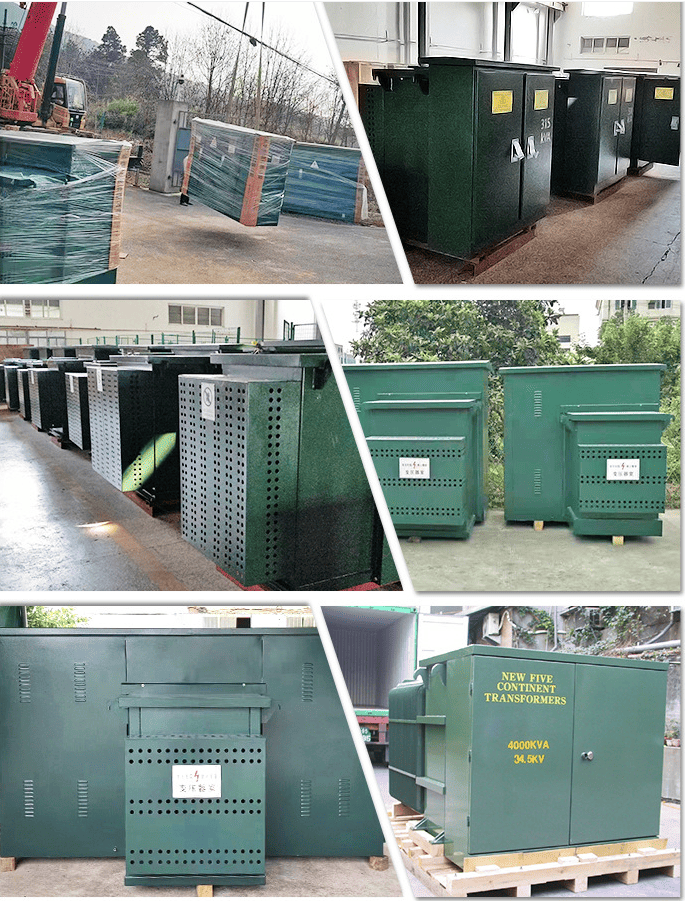

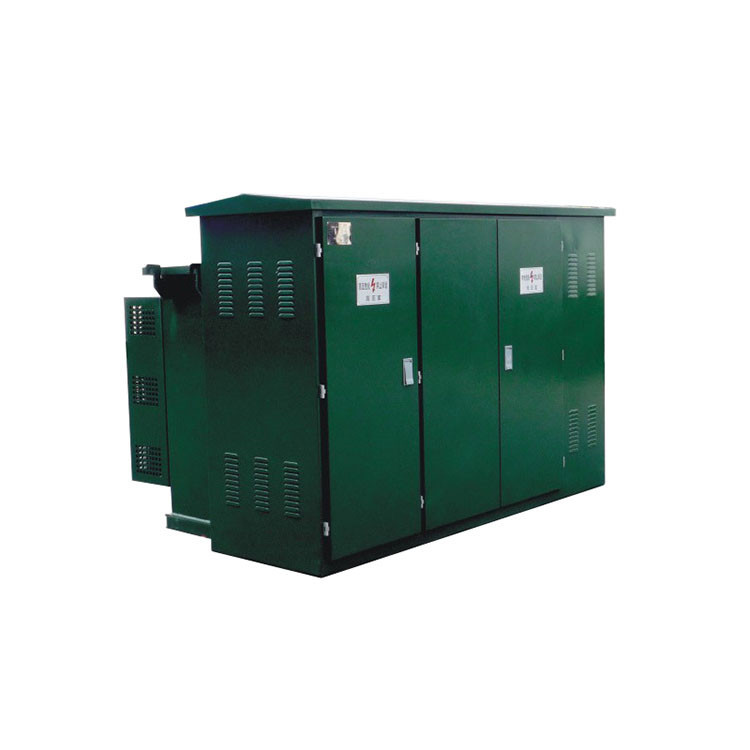

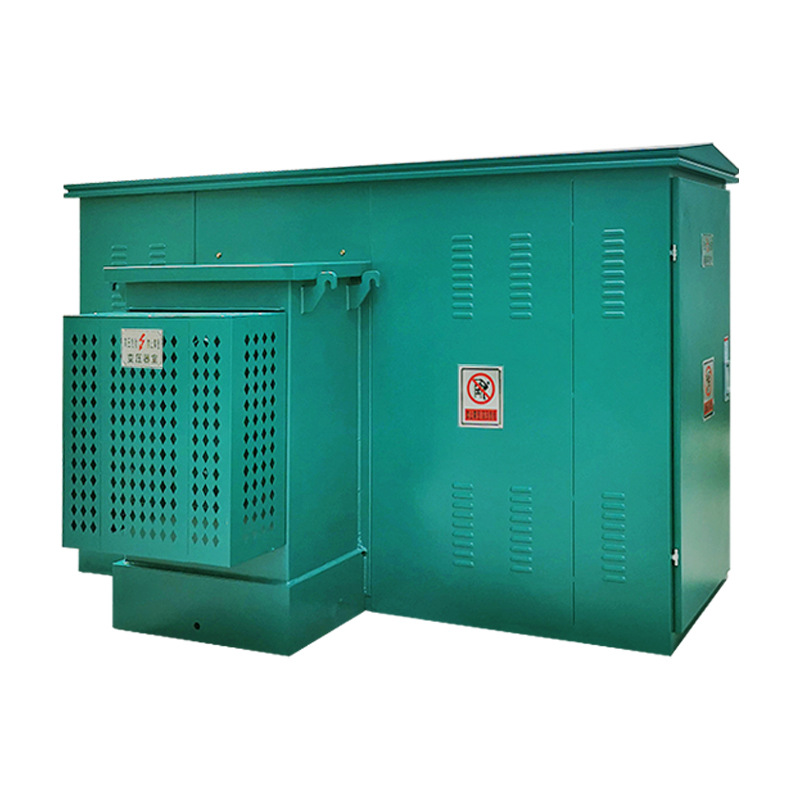

American Compact Prefabricated Substations

In today's industrial and urban landscapes, the demand for stable, reliable, and space-saving power supply is constantly growing. Weisho Electric Co., Ltd. brings you superior-performance American Compact Prefabricated Substations.

Leveraging our deep expertise, these units are designed for the rigorous demands of modern power systems. They highly integrate traditional substation functions, solving challenges like limited space and rapid deployment.

More than just equipment, our substations are critical infrastructure. They ensure efficient energy management and continuous operation for your projects.

Key Advantages & Technical Highlights: Why Choose Weisho American Compact Prefabricated Substations?

Our American Compact Prefabricated Substations ensure exceptional performance and unparalleled reliability. This is achieved through a series of unique designs and cutting-edge technologies.

Ultra-Compact Design, Saving Valuable Space:
Our compact design significantly reduces the footprint compared to traditional open-air substations. This translates to a 30%-50% space saving.
It is especially suitable for urban centers, densely populated areas, industrial parks, or projects with high land costs.
The design features high integration. It perfectly combines high-voltage distribution, transformers, low-voltage distribution, metering, and automatic control systems within a single sealed enclosure.
This ensures a compact structure and a well-organized layout.
Superior Operational Reliability & Safety:
We utilize high-quality core components from internationally renowned brands. This includes power transformers, high-voltage switchgear, and low-voltage distribution cabinets.
These components ensure long-term stable operation of the system.
The substation enclosure employs advanced sealing technology. Internal equipment is protected from external environmental factors like dust, moisture, or corrosive gases.
This significantly reduces failure rates and extends the equipment's service life.
Comprehensive safety protections are also in place. These include overcurrent, overvoltage, short-circuit, and ground fault protection.
It also features anti-misoperation interlocking and emergency shutdown functions. This ensures the safety of both operating personnel and equipment.
The unit boasts strong weather resistance. Special exterior materials and anti-corrosion treatments enable it to withstand harsh climatic conditions.
It performs stably regardless of extreme cold, heat, wind, sand, or rain.
Rapid Installation & Convenient Maintenance:
All modules are pre-assembled, wired, and rigorously tested in the factory. Upon arrival at the site, only basic civil work and external cable connections are required.
This greatly shortens the installation cycle. It also reduces on-site construction costs and risks.
Typically, on-site installation time can be reduced by over 70%.
Intelligent remote monitoring capabilities are integrated. Advanced SCADA systems allow for real-time monitoring of substation operational status.
Remote fault diagnosis and data collection are also possible, effectively improving operation and maintenance efficiency.
A modular design ensures that each functional module is independent and replaceable. This facilitates routine inspections and quick troubleshooting.
Ultimately, it lowers maintenance complexity and costs.
Environmentally Friendly & Energy Efficient:
Optimized internal structure and high-quality transformers ensure low-noise operation. This makes it ideal for areas with strict environmental noise requirements.
High-efficiency transformers minimize energy loss. This maximizes power utilization efficiency.
Ultimately, it helps users save on operating costs.
The enclosure's appearance is customizable. This allows for better integration with the surrounding environment.
It enhances overall aesthetics.

Product Technical Specifications (Reference)

For your convenience, we provide an overview of the key performance indicators for our American Compact Prefabricated Substations here. Please contact our professional team for detailed data.

Parameter	Description/Range	Notes
Rated Voltage (HV Side)	10kV / 20kV / 35kV (or customizable)	Meets international standards
Rated Voltage (LV Side)	0.4kV / 0.69kV (or customizable)	Meets international standards
Rated Capacity	50kVA - 2500kVA (or customizable)	Flexible to meet diverse needs
Frequency	50Hz / 60Hz	Globally compatible
Transformer Type	Oil-immersed / Dry-type (optional)	Chosen based on environment and requirements
Protection Class	IP54 / IP55 (Enclosure)	High dust and splash protection
Operating Ambient Temp.	-40°C to +50°C	Adapts to harsh climates
Relative Humidity	≤ 95% (non-condensing)	Ensures stable equipment operation
Altitude	≤ 2000m (higher altitudes customizable)
Noise Level	≤ 55dB (1m from enclosure)	Suitable for noise-sensitive areas
Cooling Method	Natural Air Cooling / Forced Air Cooling (optional)
Applicable Standards	IEEE C57.12.28, UL, IEC, etc.	Complies with multiple international standards for quality and safety

Please note: The above are common specification ranges. Specific model parameters are subject to product documentation or custom solutions.

Application Scenarios: Your Power Needs, Our Solutions

Weisho Electric's American Compact Prefabricated Substations are widely applied across various sectors.

They provide stable and reliable primary and backup power for data centers and communication base stations. This ensures the uninterrupted operation of critical information infrastructure.
For new energy power plants, they serve as grid-connected booster stations for wind and photovoltaic power stations. They effectively solve power output challenges in remote areas.
In urban residential areas and commercial centers, they address power expansion and old district renovation needs. This is achieved without occupying excessive public space.
They function as power distribution centers in industrial parks and large factories. This provides stable power for industrial production.
For temporary construction sites and emergency power supply, they offer rapid deployment. This meets short-term or sudden power demands.
They provide secure and reliable power guarantees for transportation hubs. This includes ports, airports, and railways.

Customer Trust & Success Stories

Weisho Electric has years of deep experience in the power sector. Our American Compact Prefabricated Substations have been successfully implemented in numerous significant projects worldwide.

These projects have earned high recognition from our clients.

[Client Testimonial Example] "Choosing Weisho Electric's substation not only solved our data center's limited space issue, but its stable operation also far exceeded expectations, significantly enhancing our power system's reliability." – Project Manager, a US Data Center Project
"As a power infrastructure developer in a 'Belt and Road' country, we are deeply impressed by Weisho Electric's product quality and Thor's team professionalism. Their prefabricated substations have greatly accelerated our project timeline." – Procurement Director, a Middle Eastern Power Company
[Success Case Study Overview]

Challenge: Extremely high temperatures and sandy environments demanded extremely high equipment reliability. Compliance with stringent local power standards was also necessary.
Solution: Our engineering team provided a specially designed American Compact Prefabricated Substation. It featured high-temperature and sand-proof characteristics.
The unit passed all rigorous tests.
Outcome: The equipment performed exceptionally well in extreme conditions. It provided an uninterrupted power supply to critical areas of the smart city.
Challenge: Limited site area required rapid deployment of high-power charging infrastructure. Ensuring a stable power supply was also critical.
Solution: Weisho Electric provided a customized American Compact Prefabricated Substation solution. It perfectly integrates transformer, distribution, and protection functions.
Outcome: Deployment was completed within the specified timeframe. The equipment operated stably, providing reliable charging support for thousands of electric vehicles.

Weisho Electric: Your Trusted Choice

As a renowned Chinese foreign trade manufacturer, Weisho Electric Co., Ltd., boasts advanced production lines and a stringent quality control system. We have also assembled an experienced R&D team and a dedicated service team.

Our products and services are distributed across Europe, America, the Middle East, "Belt and Road" countries, and globally, earning widespread acclaim.

Notably, our Chief Electrical Engineer, Mr. Thor, possesses 12 years of extensive industry experience. He integrates his profound professional knowledge into every product design and solution.

His expertise is a significant guarantee when you choose Weisho Electric.

We consistently adhere to a customer-centric approach. We are committed to providing customized and cost-effective power solutions.

Choosing Weisho Electric means selecting not just equipment, but peace of mind, professionalism, and a long-term partnership.

Frequently Asked Questions (FAQ)

To help you better understand the American Compact Prefabricated Substation, we have compiled some frequently asked questions.

Q: What is the typical installation period for an American Compact Prefabricated Substation?

A: As the product is prefabricated and tested in the factory, on-site installation work is greatly reduced. Depending on the project's scale and complexity, basic civil work and equipment installation can usually be completed within a few days to a week. This shortens the installation time by approximately 70% compared to traditional substations.

Q: Is the maintenance frequency of this substation high?

A: Our American Compact Prefabricated Substation features a fully sealed design, requiring minimal or no maintenance. Key components have a long lifespan. Under normal circumstances, only regular visual inspections and minor preventive maintenance are needed. We will provide detailed recommendations for specific maintenance cycles and content based on project requirements and operating environment.

Q: Does Weisho Electric support customized services?

A: Yes, we fully support customized services. Our professional engineering team will provide tailor-made solutions based on your specific project requirements, such as capacity, voltage levels, special functions, or enclosure colors. This ensures the product perfectly fits your application scenario.

Q: Does the product have relevant international certifications?

A: Our products strictly adhere to international quality standards and have obtained multiple international certifications. For instance, they comply with IEEE C57.12.28 standard, and we can provide relevant UL or IEC certifications upon client request. For specific certification information, please consult our sales team.

Q: How can I get support if I encounter technical issues?

A: We offer comprehensive pre-sales, in-sales, and after-sales technical support. You can directly contact our technical support team, including Senior Electrical Engineer Mr. Thor, via phone, WhatsApp, or email. We will resolve your issues as quickly as possible.

Contact Us Immediately to Get Your Exclusive Custom Solution!

Regardless of your project size or specific power system requirements, Weisho Electric can provide you with professional consultation. We offer tailor-made American Compact Prefabricated Substation solutions.

We welcome you to directly contact our Senior Electrical Engineer, Mr. Thor. He will provide you with expert answers and support.
