Are you wondering whether an oil-immersed transformer is the right fit for your project? You’re not alone. Many engineers and procurement professionals are confused by the technical differences, safety concerns, and cost implications between oil-filled and dry-type transformers.
If your goal is long-term performance, proven cooling efficiency, and cost-effective high-capacity power distribution, oil-immersed transformers remain a time-tested solution.
In this complete guide, we’ll break down what oil-immersed transformers are, how they work, where they are used, how they compare to dry-type transformers, and how to choose the right unit for your application. We’ll also answer frequently asked questions and share real-world project insights from trusted manufacturers.
What Is an Oil-Immersed Transformer?

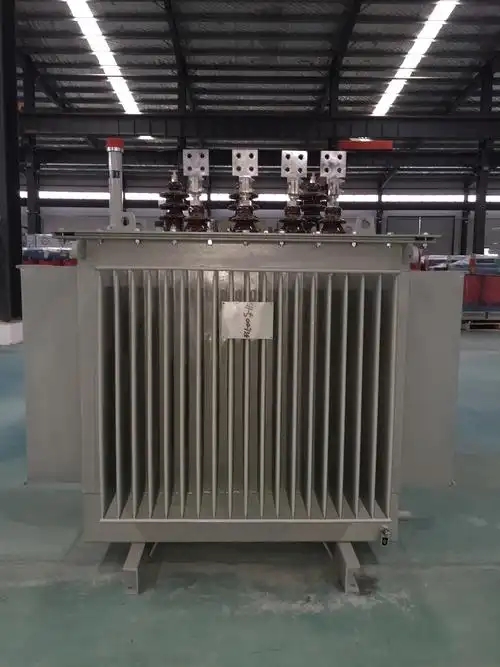

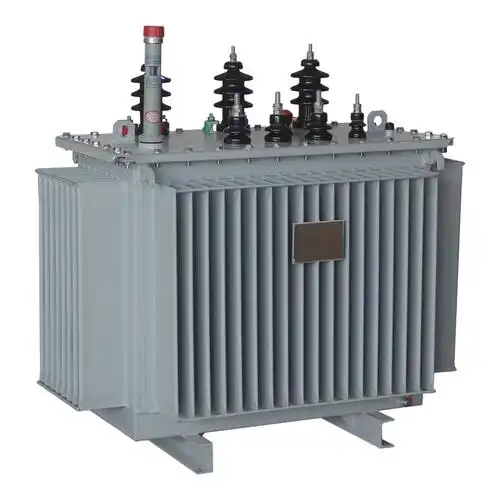

An oil-immersed transformer is a type of power transformer that uses insulating oil for cooling and electrical insulation. The oil surrounds the transformer’s windings and core inside a sealed tank, helping to dissipate heat and prevent electrical breakdown.
Key Components:
High-voltage and low-voltage windings
Magnetic core
Oil tank and conservator
Radiators or cooling fins
Buchholz relay and temperature indicators

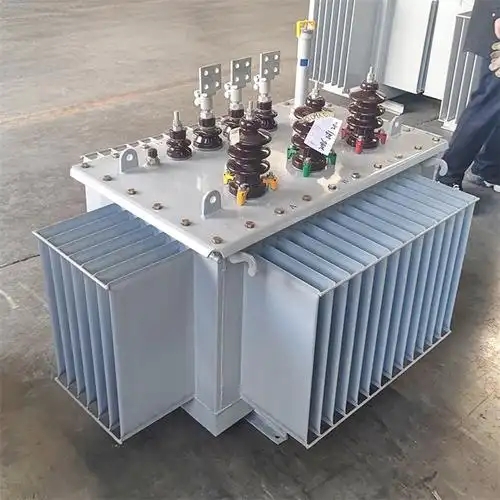

How Does an Oil-Immersed Transformer Work?
The core and windings generate heat during operation. The insulating oil absorbs this heat and circulates it to the radiators, where it cools naturally or with forced air. The cooled oil then recirculates, maintaining optimal temperature inside the unit.
Working Principles:
Heat Transfer: Oil absorbs heat from windings and the core.
Natural/Forced Cooling: Passive convection or fan-assisted cooling.
Insulation: Oil prevents arcing and voltage breakdown between conductors.
Oil-Immersed vs. Dry-Type Transformer: Comparison Table
| Feature | Oil-Immersed Transformer | Dry-Type Transformer |
|---|---|---|
| Cooling Method | Mineral oil (natural or forced) | Air or cast resin |
| Fire Risk | Higher (oil is flammable) | Low (self-extinguishing resin) |
| Installation | Outdoor or dedicated indoor room | Indoor, close to load centers |
| Maintenance | Requires oil testing & treatment | Minimal, no oil involved |
| Cost | Lower initial cost, higher long-term maintenance | Higher initial cost, lower maintenance |
| Efficiency | Higher in high-load scenarios | Lower under heavy duty |
Where Are Oil-Immersed Transformers Used?
Oil-filled transformers are widely used where high voltage and load capacity are required, and ventilation is sufficient.
Common Applications:

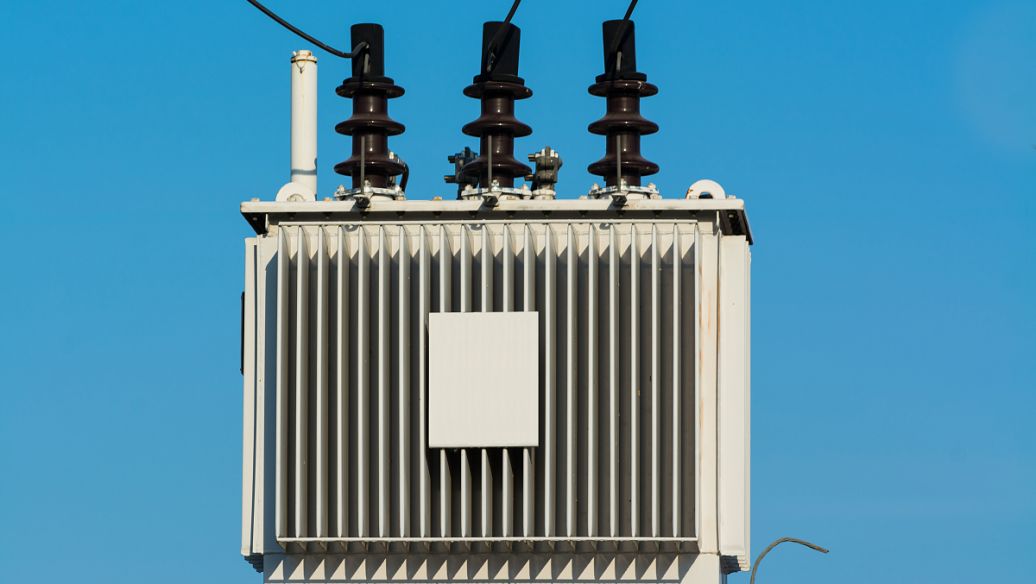

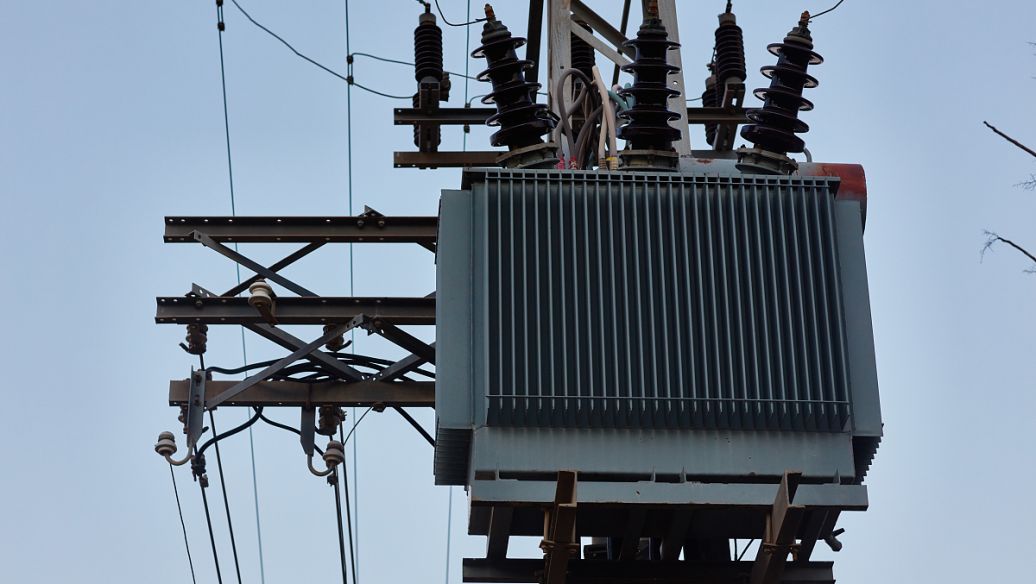

Utility Substations: Backbone of medium to high voltage transmission
Industrial Plants: Reliable voltage regulation for heavy equipment
Solar and Wind Farms: Ideal for outdoor, remote energy stations
Mining Sites: Withstand harsh environments and mechanical stress
Rural Electrification Projects: Durable and easy to maintain in remote areas
User Pain Points & How Oil-Immersed Transformers Address Them
| Pain Point | Oil-Immersed Transformer Solution |
|---|---|
| High load demand | Superior thermal capacity handles overloads efficiently |
| Remote installations | Rugged design and replaceable oil allow easy field servicing |
| Cost sensitivity | Lower initial investment than dry-type models |
| Heat management | Excellent dissipation through the oil + radiator system |
| Voltage fluctuation | Stable voltage regulation with proper impedance matching |
How to Select the Right Oil-Immersed Transformer
Choosing the right transformer involves more than voltage and power. Consider the following:
1. Power Rating (kVA/MVA)
Select a rating 10–20% higher than your maximum estimated load to avoid overheating.
2. Primary/Secondary Voltage
Match your grid or generator specs (e.g., 11kV/400V, 33kV/690V).
3. Cooling Type
ONAN (Oil Natural, Air Natural)
ONAF (Oil Natural, Air Forced)
4. Insulation Level & Temperature Rise
Ensure it meets IEC/ANSI standards for your region and climate conditions.
5. Tap Changer
Choose between:
Off-Load Tap Changer (manual)
On-Load Tap Changer (OLTC) for voltage fluctuation adjustment
6. Environmental Requirements
For dusty, humid, or high-altitude areas, ensure protective enclosures and oil-type compatibility.
Real-World Case Studies
📌 Dubai Industrial Zone Project
Wei Shoe Elec supplied twenty 2500kVA oil-immersed transformers to an industrial hub requiring outdoor operation at 50°C. Units featured ONAF cooling and silica gel breathers to handle desert climate. Commissioned in under 60 days.
📌 Vietnam National Grid Expansion
Delivered eight 33kV/0.4kV, 1600kVA transformers with OLTC to a rural power line project. Oil analysis ports and conservators designed for easy servicing. Transformer uptime exceeded 99.98% over 3 years.
FAQs: Oil-Immersed Transformers
Q1: How often should transformer oil be tested?
A: Every 12–24 months, depending on the installation environment and load levels.
Q2: Can oil-immersed transformers be installed indoors?
A: Yes, but it requires fireproof rooms, oil containment systems, and proper ventilation.
Q3: Is mineral oil safe for the environment?
A: It requires careful handling. Bio-degradable oils are available for eco-sensitive zones.
Q4: What causes transformer oil to degrade?
A: Oxidation, moisture contamination, and high temperatures.
Q5: What is the typical lifespan of an oil-immersed transformer?
A: 25–35 years with regular oil maintenance and cooling system checks.
About Wei Shoe Elec
Wei Shoe Elec is a certified manufacturer with over 15 years of experience in medium and high voltage transformers. We produce over 10,000 units annually and serve customers in 40+ countries. Our oil-immersed transformers are tested to IEC and ANSI standards, with full in-house capabilities from core winding to oil filling and performance testing.
Contact Us Today for Technical Advice & Latest Pricing
📞 Phone: 86-0577-62788197
📱 WhatsApp: +86 159 5777 0984
📧 Email: thor@weishoelec.com
We’re happy to provide free consultation or a quick quote based on your drawings and specifications.
Conclusion
Oil-immersed transformers remain one of the most dependable solutions for high-capacity, outdoor, or utility-grade power needs. When selected and maintained correctly, they deliver long service life, robust protection, and high energy efficiency.
If you’re unsure whether an oil-immersed transformer fits your project, feel free to reach out. I’m Thor, an electrical engineer at Wei Shoe Elec, and I’d be glad to help you find the ideal solution.
