Medium voltage switchgear isn't one size fits all. Its design depends on each country's power grid, environment, habits, and industry partnerships. This has led to many "localized" special designs.
At Weishoe Electric, I’ve spent more than 12 years in the electrical industry. During this time, we’ve also grown into overseas markets. We’ve built a solid foundation. Now, we serve clients in over 80 countries and regions around the world. We know how important it is to match these unique requirements precisely.
We support international medium-voltage switchgear projects. We ensure high-quality standards, a dependable global supply chain, and fast delivery. This article looks at specialized designs and our solutions. We aim to give you helpful guidance for engineering projects abroad.
I. Diving Deep into Specialized MV Switchgear Designs: Tailored for Local Needs
Knowing the key features of foreign medium-voltage switchgear is vital for project success. These designs blend local rules, work methods, and climate conditions.
(I) Mandatory Designs Based on Standards: Compliance is Key
Some special designs are "hard requirements" explicitly mandated by local standards. Following the rules is crucial. If not, the product will fail inspection and miss out on permits.
Structure and Enclosure Requirements
In the Middle East, the heat, humidity, and sand make tough demands on switchgear enclosures. Some projects need the main frame steel plate to be at least 2.5 mm thick. This follows IEC 62271 standards for strength and protection. This ensures the structure stays strong and resists corrosion in tough conditions.

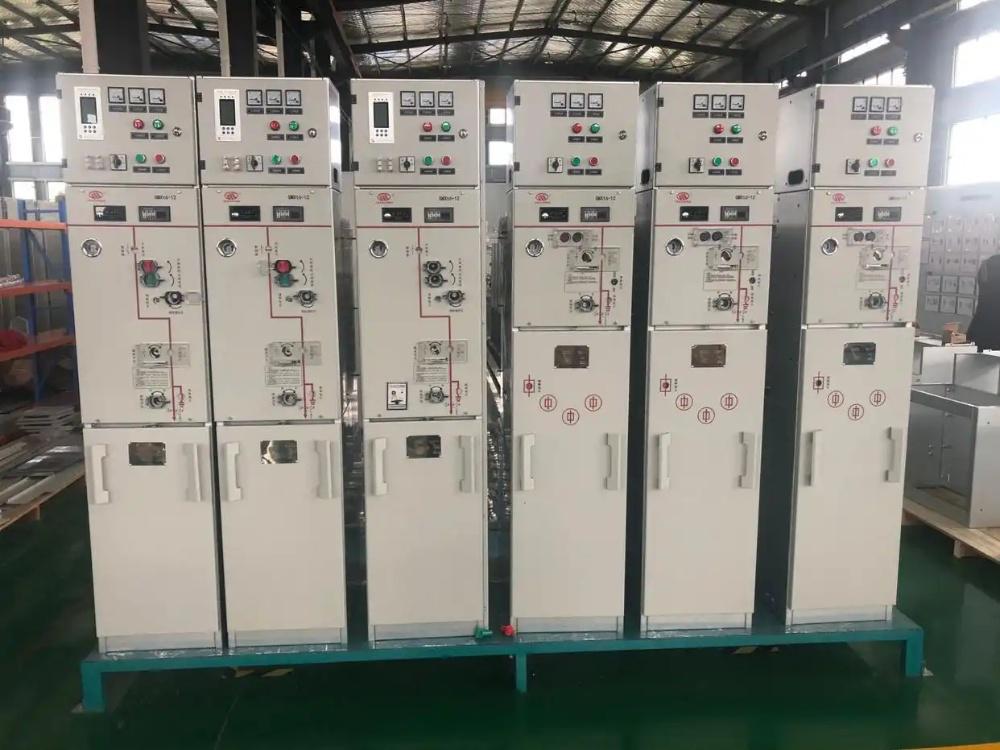

Outdoor ring main units (RMUs) need an enclosure rating of at least IP54. This protects them from sand and moisture. All cabinets must be fully sealed. This includes control, cable, and busbar compartments. Sealing protects against damage from bad weather and pests.
To fight corrosion in hot and humid areas, all internal metal parts of the RMU need to resist corrosion well. You also need enough space inside the enclosure for local modems. This space helps with remote monitoring and data transmission needs.
Appearance Specifications
Paint color is a classic example of these specific requirements. Some European countries must switch to specific voltage levels to have standard colors. For example, they use RAL 7035 grey or a certain shade of green. This isn’t just about looks. It helps you find equipment. It also makes operation and maintenance easier. Plus, it often links to safety color codes.
(II) Adaptive Designs Based on Usage Habits: Human-Centric Considerations
Usage habits are "unwritten rules" developed from long-term local practices. These standards aren't required. But they affect user acceptance and daily operations directly. We understand these "soft" requirements by conducting thorough research and on-site assessments.

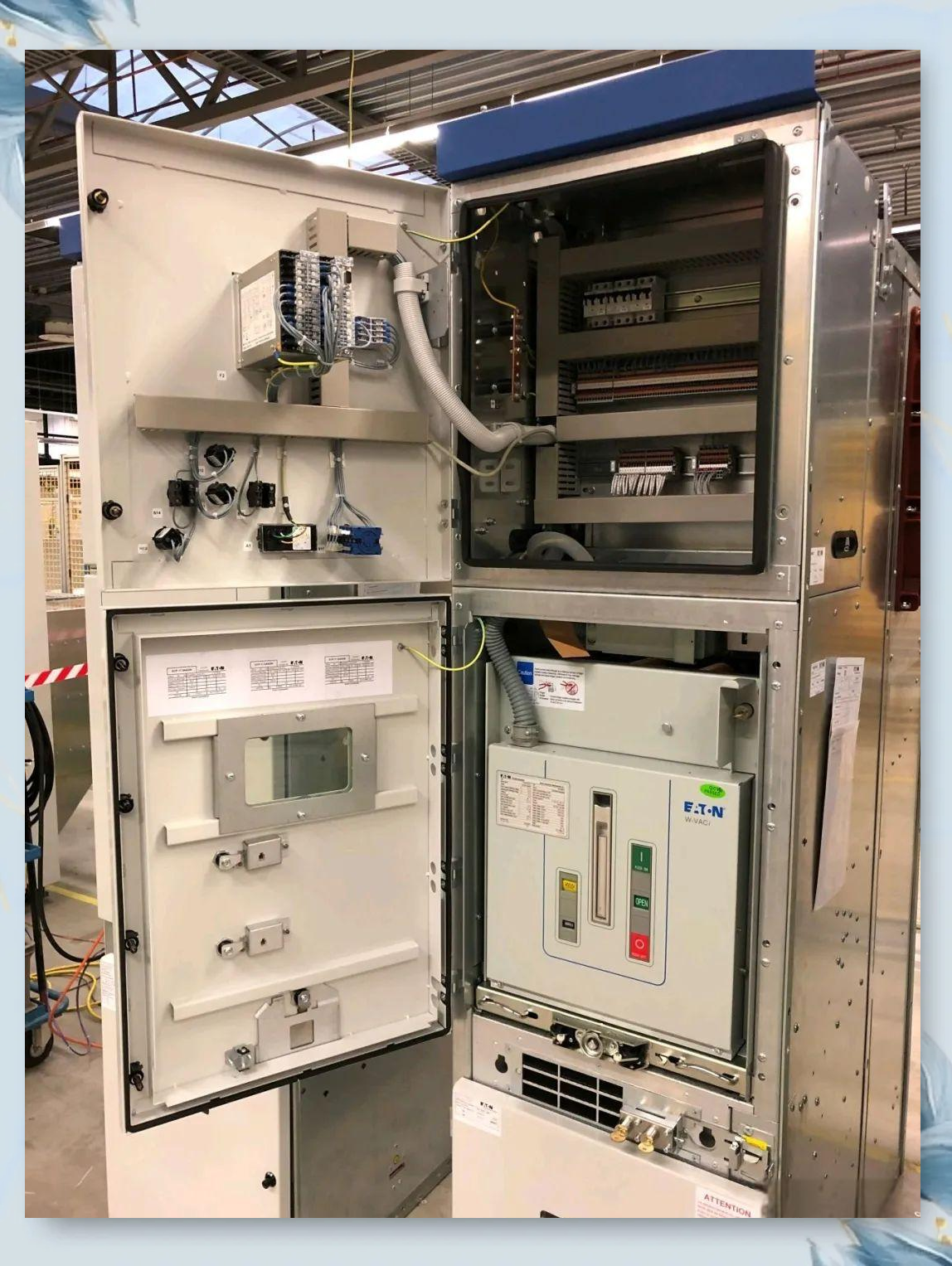

Circuit Breaker Mounting
In some areas of South America and Africa, clients prefer floor-standing circuit breakers over withdrawable trolley types. The main issue is that trolley types need transfer carts. These carts have a high center of gravity when they carry breakers. This makes them likely to tip over in tight spaces or on uneven ground.
There are strict height limits for switchgear in these areas. This is important for instrument compartments. If they are too tall, operations become tough. Floor-standing breakers are lower and do not need transfer carts. This makes them fit better with local work habits and current infrastructure.
Live Display Mounting Location
Some clients in Southeast Asia want the live display device set up at the earthing switch operating hole. This design isn't required, but it fits the usual habits of local maintenance staff.
They can check the live status of the equipment through the display in the operating hole. This helps reduce the risk of mistakes and improves safety on-site. During the engineering design phase, we often have detailed talks with clients. This helps us adjust and meet their unique needs.
(III) Electrical Designs for System Optimization: Efficiency and Integration
Foreign medium-voltage switchgear designs often try to simplify cabinet types. They also aim to improve efficiency. This leads to unique primary and secondary system configurations.
1. Primary System & Cabinet Simplification: Saving Space and Costs

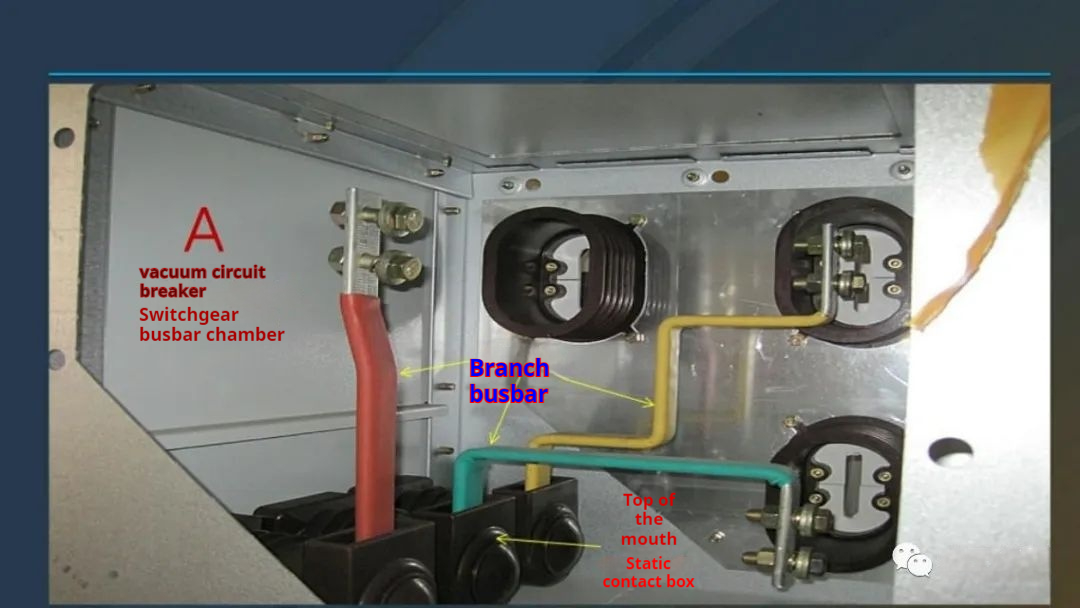

Busbar-related equipment integration
Projects may need just one busbar earthing switch on a main busbar lineup. This helps optimize the layout and reduce the number of required pieces of equipment. This also ensures earthing protection during busbar maintenance. This design is often used in many North American and European projects. It emphasizes keeping systems simple.
Busbar Voltage Transformers (PTs) are usually located inside or above the circuit breaker panel. They do not need separate busbar equipment cabinets. This design saves cabinet space. It simplifies distribution bay layouts and cuts down on footprint and construction costs.
Integrated Cabinet Functions
Separate disconnecting compartments are rarely used in international projects. In a large power project in Saudi Arabia, we offered the client a compact solution. We used a lift-up compartment for isolation. We also combined it with busbar PTs and an earthing switch compartment. This setup reduced the total number of switchgear panels and met all functions. This highlights the demand for high system integration.
There isn't a separate metering compartment. Current transformers (CTs) and voltage transformers (PTs) sit in the incoming panel. This lets the incoming panel supply power and metering at the same time. It also makes the system simpler. This approach has become standard practice in many Western power projects.
2. Secondary Windings & Transformer Configuration: Meeting Complex Protection Needs

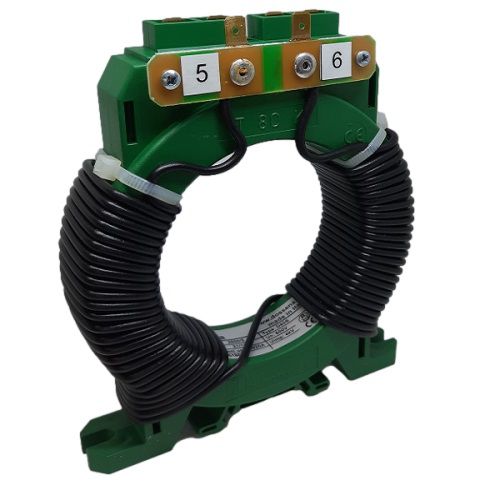

Multi-Winding Solutions
For special projects with many secondary windings, like complex differential protection systems, local practices often use low-voltage ring-type current transformers. They are compact and lightweight. This allows for flexible installation to meet various multi-winding measurement and protection needs. They fit better into confined cabinet spaces than traditional transformers.
US Standard System Transformer Design
Some areas need single-winding current transformers on the busbar and cable sides of the circuit breaker. This follows the ANSI C37.20.2 standard for metal-clad switchgear. Local switchgear uses the US standard compartment structure. The spout can hold two transformers, one above and one below.
This allows a maximum of four current transformers per phase. In a substation upgrade project in Mexico, this design met the needs for signal acquisition. It supported complex differential protection with several sets of currents.
(IV) Structural Design Based on Connection Method: Optimizing Cable Interfaces
International clients often use cables for power supply and connections. This includes high-current lines such as 3150A, 4000A, and 5000A. So, switchgear needs to be designed for better cable connections.
Cable Space Provision
Leave enough space in the cabinet. This will help with easy entry, bending, and connecting cables. Large cross-section cables need a wide bending radius. If there's not enough space, it can damage the insulation.
Lug connections also need enough operating clearance to prevent uneven stress during installation.
Cable Fixing Compatibility
Cables usually attach to cable trays. One end links to the transformer, and the other connects to the switchgear. The switchgear's cable compartment must match the cable tray's size and location perfectly. It has pre-drilled holes for cable tray connections and the right mounting brackets. This ensures stable connections and makes construction easier.

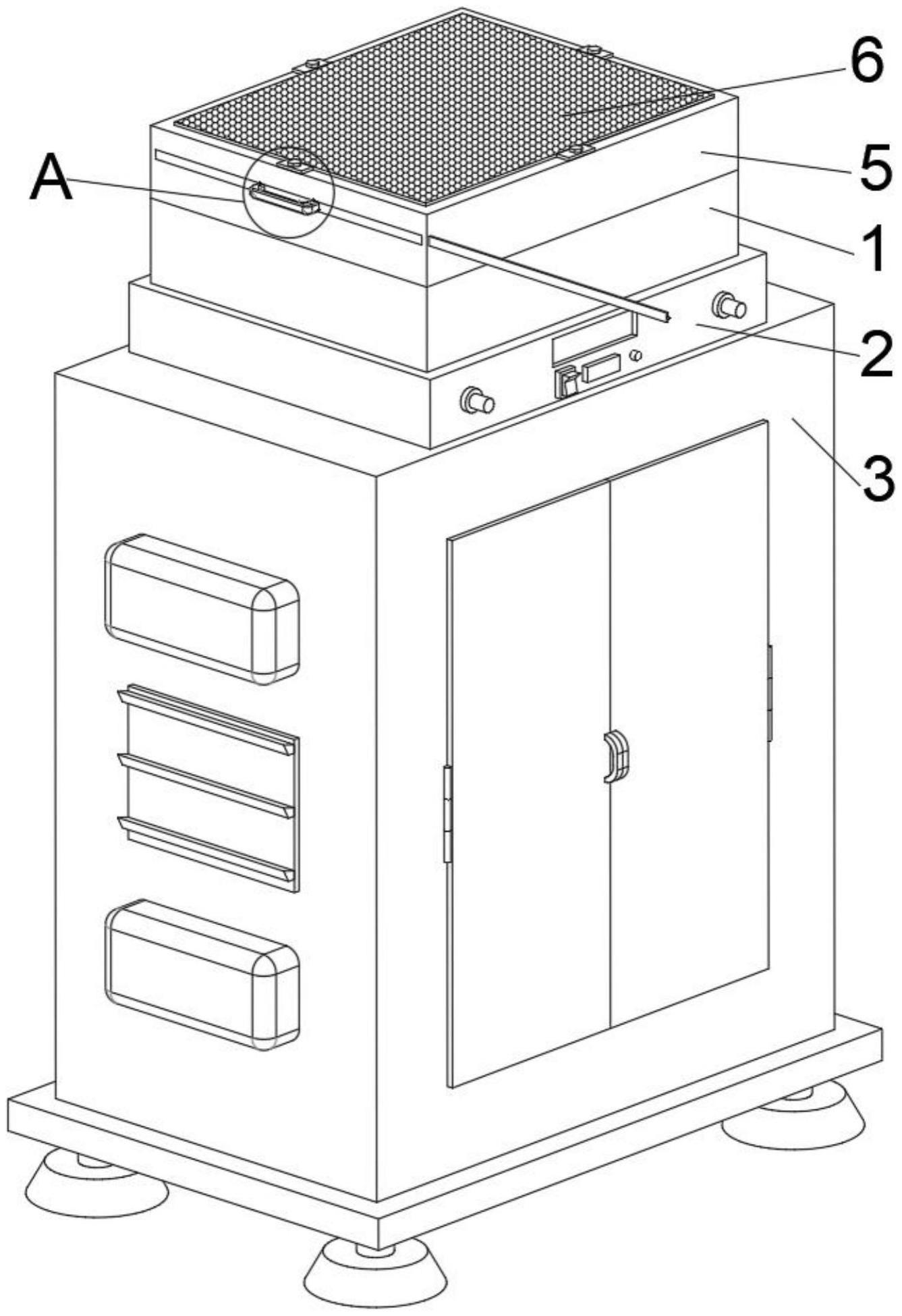

(V) Venting Design for Safety Protection: Protecting Lives and Equipment
Arc fault protection is essential for international projects. Also, designing the venting channel is key. Its purpose is to cut internal arc hazards.
Necessity of Venting
An internal arc fault can lead to hot, high-pressure gas bursting out from the top of the cabinet. This happens if there is no arc release device. This rebound can cause severe harm to operators and surrounding equipment.
Designing proper vents allows buffering devices to absorb small arc currents. Special channels are designed for the safe release of large arc currents. This measure prevents damage to the switchgear room and injuries to personnel. This design complies with the IEC 62271-200 standard for internal arc effects.
Design Considerations
Vent direction should match the project site layout. Consider the switchgear room's position and safe outdoor areas. This ensures the arc goes straight into an outdoor space without people or equipment. In a European data center project, we customized a side-venting channel. This was based on the machine room layout. It helped ensure the safety of the equipment.
The venting channel must connect securely to the cabinet. Use bolted fastenings with sealant. This prevents the channel from coming loose during an arc impact. Also, sealing performance is important. It keeps dust and moisture out of the cabinet while it runs.
(VI) Interlock Design for Operational Safety: Preventing Misoperation
International projects need more than just the usual "five-prevention" interlocks. They stop problems like wrong breaker or disconnector actions. They also stop accidental entry into live compartments. They prevent unintentional earthing of live equipment. Plus, they avoid tripping an operating breaker. They must also use mechanical key interlocks. These form a higher level of safety assurance.
Role of Key Interlocks
A key exchange box provides system-level protection, enforcing a "mandatory sequence of operations." In an Australian mining power project, we set up a detailed mechanical key interlock system for the client.
You can only remove the key to the earthing switch operating hole after opening the circuit breaker and pulling out the disconnector. Once someone closes the earthing switch, they can remove another key to open the cabinet door. This mechanism mechanically eliminates the possibility of misoperation, greatly enhancing operational safety.
II. Core Advantages of Our Solutions: End-to-End Project Assurance
We adapted to the unique designs of foreign medium-voltage switchgear. We earned the trust of global clients by offering high-quality standards, a reliable supply chain, and fast delivery. We provide solid support for project execution.
(I) High-Specification Quality Control: Stringent Standards from Detail to Whole
We consistently prioritize "quality first" throughout the entire design, production, and testing processes. This ensures our products meet stringent international standards and long-term operational needs. We follow the ISO 9001 quality management system closely. We also keep improving our processes.
Strict Material Selection
We strictly meet international standards for steel plate thickness and insulation temperature ratings. This includes IEC 60695 for flame retardancy. We source key components such as circuit breakers, transformers, and relay protection devices from top brands. These include Schneider, ABB, Siemens, and GE. This ensures reliability from the start.
Craftsmanship Standards
Cabinet welding and painting processes adhere to internal standards that exceed industry norms. For example, pre-painting treatments include several rust removal steps. Also, the paint film thickness error stays within ±5 μm. This ensures great corrosion and impact resistance. Internal assembly uses modular designs. It keeps electrical connections stable. It controls them precisely, down to the millimeter.

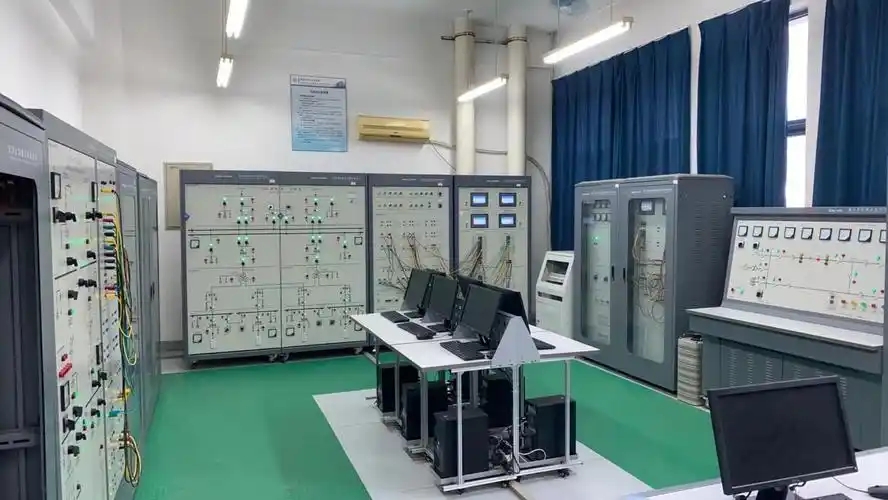

Comprehensive Testing
Before leaving the factory, every switchgear unit goes through 20 tough tests. These tests include insulation resistance, power frequency withstand voltage, and mechanical operation. For overseas projects, we carry out extra tests. These include "arc venting simulation tests" and "extreme environment adaptability tests." We check how well our systems operate in high temperatures and humidity. This ensures compliance with local operating conditions and safety standards.
Our products received type test reports from several top international bodies. This includes thorough testing by KEMA and CESI labs. These serve as strong evidence of product performance and safety.
(II) Reliable Global Supply Chain: Global Presence + Local Responsiveness
We created a top-notch supply chain system. This helps us quickly meet the unique design needs of international projects. This system uses "global procurement + local collaboration." This approach ensures quick responses and steady deliveries.

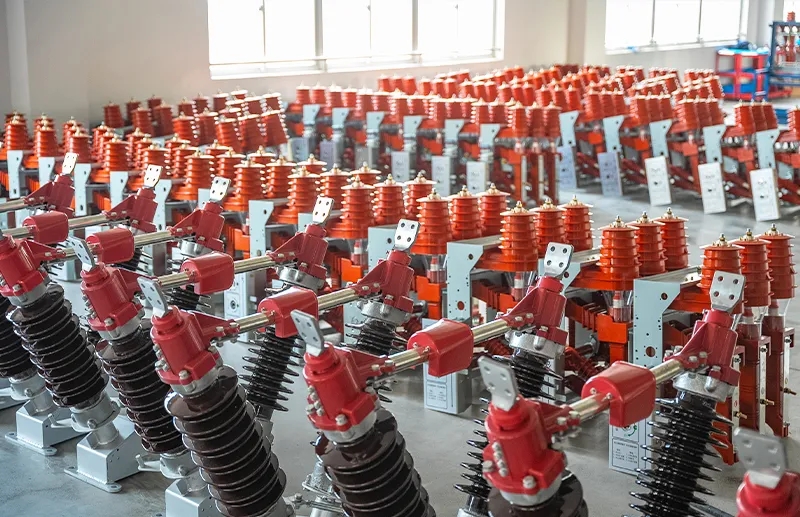

Direct Sourcing of Core Components
We have built lasting partnerships with top global electrical component makers. These include Schneider, ABB, Siemens, and GE. We can get key parts like circuit breakers, transformers, and relay protection devices right away. These meet different standards, such as U.S. and European norms. This approach prevents project delays due to component compatibility issues.
Local Supplier Collaboration
We work with local manufacturers in key markets like Southeast Asia, the Middle East, and Latin America. They help us with tasks like cabinet sheet metal fabrication and painting. This allows for local production and quick changes to specialized designs. Examples include U.S.-standard compartment structures and custom venting channels. This leads to a major reduction in production cycles and logistics costs.
Supply Chain Redundancy
We keep safety stock for key materials. This includes certain thicknesses of weathering steel plates and special sealing components. We have emergency supply agreements with other suppliers. This helps avoid delivery delays from one supplier and keeps projects on track.
(III) Efficient Delivery Capabilities: Rapid Response to Urgent Project Needs
We’ve improved our processes and combined resources. Now, we deliver projects faster than anyone else in the industry. We deliver in as little as 20 days. This helps us support urgent international projects.
Modular Design for Speed
We standardize core switchgear structures, including cable and busbar compartments. We design interfaces for special setups. This includes integrated busbar PTs and floor-standing circuit breaker installations. This reduces custom development time, enabling rapid configuration and assembly.
Flexible Production Scheduling
Our "order priority management + intelligent scheduling system" allows urgent overseas projects to access special production lines. This shortens the time from design approval to production launch to 48 hours. It maximizes the production cycle's efficiency.
Optimized Logistics Solutions
We work with top global logistics companies like DHL and Maersk. This helps us create "door-to-door" transport options. We plan customs declarations and clearance ahead of time. We also offer "disassembled parts + on-site assembly" for oversized cabinets. This further reduces transit times and minimizes transportation risks.
III. Principles for Implementing Specialized Designs: Client-Centric, Advantage-Driven
Our unique foreign medium-voltage switchgear designs highlight "localization." We use our strengths by sticking to these key principles for good design and project delivery:
Precise Demand Matching
Our skilled technical team has worked on many international projects. They talk with clients early to have detailed discussions. We clearly outline "standard mandatory requirements" like steel plate thickness and paint color. We also cover "usage habit needs," such as circuit breaker type and interlock methods. This creates a detailed list of requirements.
We use 3D modeling for early validation. This helps to avoid costly rework right from the start.
Rapid Solution Validation
We use 3D modeling technology to create specific designs. This includes venting channel routes and cable bending space. We send samples of key parts through our supply chain without delay. This helps clients confirm details before we start mass production. This ensures the feasibility and accuracy of the solution.
Full-Cycle Service Assurance
After delivery, we provide expert installation support. This is important for special structures like US-standard compartments. We provide training for the client's O&M staff. This training covers key interlock operations and routine equipment maintenance. This ensures safe and stable operation.
For overseas projects, we promise a 24-hour response. We also offer 48-hour on-site support. This gives our clients peace of mind.
Summary
Foreign medium voltage switchgear designs rely on local power systems and environmental factors. They also depend on how people use them. Weishoe Electric knows these designs well. They adapt precisely, ensuring high quality. Their strong global supply chain and quick delivery fit standard needs and habits. We provide efficient, reliable, and EEAT-compliant product solutions to clients worldwide.
Our strong approach and creative spirit ensure that your overseas projects succeed.
Client Testimonials
Weishoe Electric's medium voltage switchgear met our local standards. It also offered customized features that ensured the smooth operation of our project. They understood local habits well. This helped them avoid many communication problems and extra work.
--- Project Manager, Large Energy Project, Middle East
Weishoe Electric showed impressive speed during an urgent substation upgrade. They delivered in 20 days. They made sure our project launched on time. This is very valuable for international collaboration.
--- Procurement Manager, Southeast Asian Power Company
Frequently Asked Questions (FAQs)
Yes, our medium-voltage switchgear meets international standards such as IEC and ANSI.
A1: Yes, we design and make our products to meet top international standards. This includes the IEC 62271 series and the ANSI C37 series. We can adapt to local national standards, like BS or AS/NZS, based on project needs. We provide corresponding type test reports and certification documents.
Q2: How long does it take for customized designs?
A2: The customization period varies. It depends on how complex the design is and the time needed to get special parts. Our modular design and flexible production schedule let us respond quickly. We can go from design confirmation to production launch in just 48 hours. Delivery can be done in as little as 20 days.
Q3: How do you guarantee after-sales service for overseas projects?
A3: We have established a comprehensive global service network. We promise to respond to overseas projects within 24 hours. Then, we will have technical staff on-site in 48 hours. We offer remote tech support, fast spare parts delivery, and ongoing maintenance tips. This support ensures the long-term operation of our clients' equipment without issues.
Q4: What's the initial process for customizing switchgear?
A4: The initial process for customizing switchgear is straightforward and efficient. First, clients need to provide the single-line diagram for the switchgear. Our technical team will conduct a thorough analysis of it. Then, we will give you a clear preliminary quote. Once the client accepts the quote, we will have more detailed talks to complete the solution.
Q5: How does Weishoe Electric ensure product reliability in various climate conditions?
A5: We tailor our product design and choose materials for various climates. In hot and humid places like the Middle East, we carefully manage the cabinet's protection rating and sealing. We also check the corrosion resistance of metal parts inside. Then, we run tests for extreme environment adaptability. We test all our products in tough environmental conditions. This ensures they work with reliability and stability in many harsh climates.
