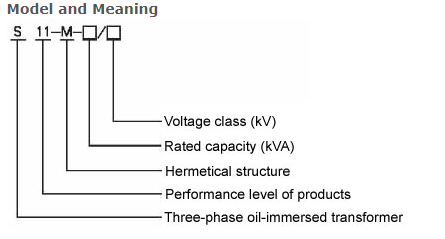

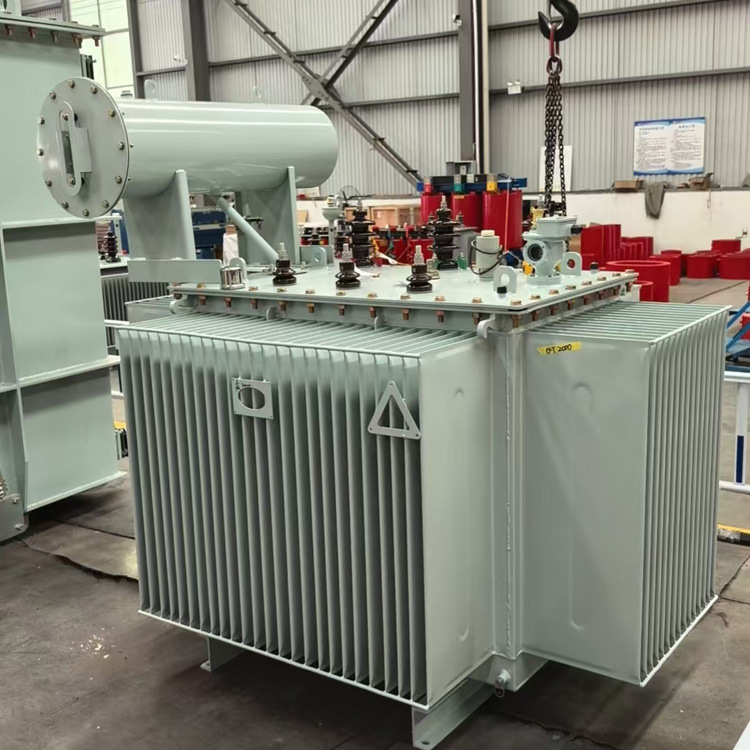

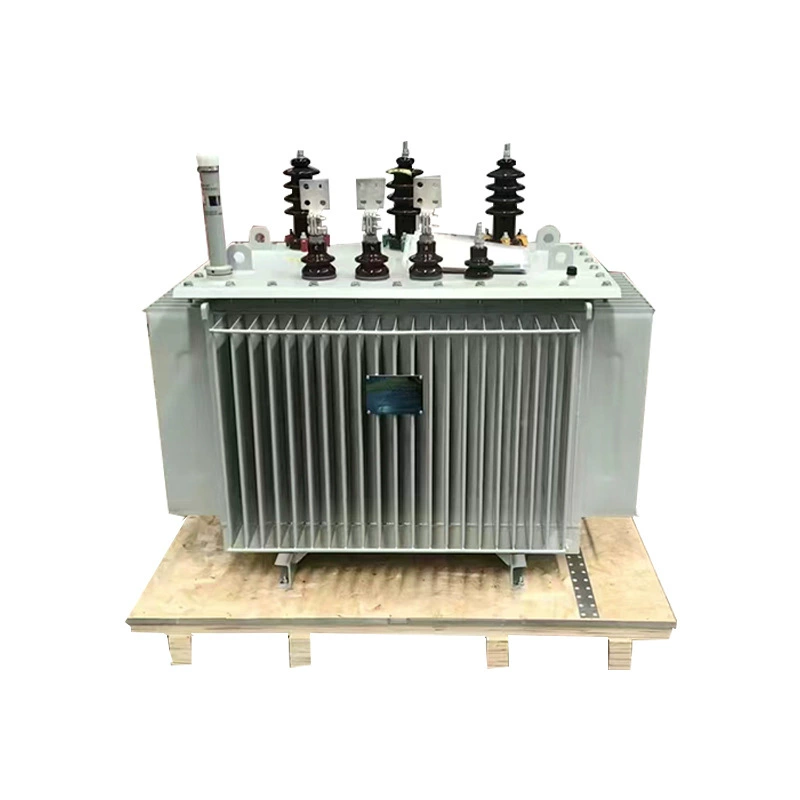

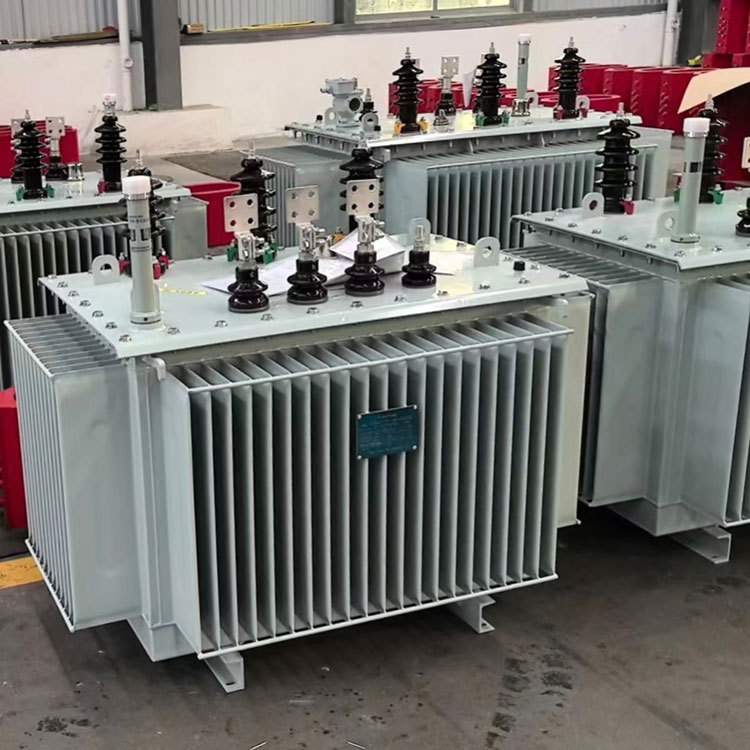

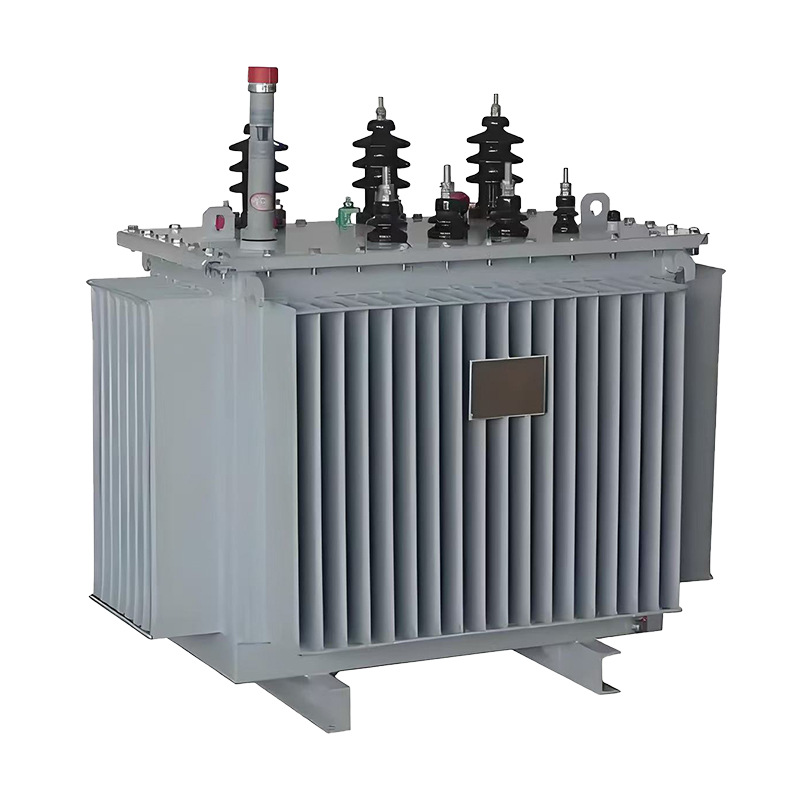

S11-M-6KV/22KV Oil-Immersed Power Transformer

Reliable Medium-Voltage Step-Down Transformer for Industrial & Utility Networks

The S11-M-6KV/22KV oil-immersed power transformer is designed to provide stable and efficient voltage transformation in medium-voltage distribution systems. Featuring ONAN (Oil Natural Air Natural) cooling, robust thermal performance, and strong dielectric strength, this unit is ideal for utility substations, factories, and renewable energy plants across North America, Europe, and the Middle East.

Available in both single-phase and three-phase configurations, it supports 50Hz/60Hz systems and complies with IEC 60076, ANSI C57, and IEEE Std C57.12 standards.

🔧 Key Features

Voltage Range: Rated for 6kV, 10kV, 15kV, 20kV, and 22kV primary input
Cooling System: Natural oil and air-cooled (ONAN) for high thermal reliability
Overload Capacity: Up to 120% rated load for 2 hours without oil degradation
Customizable Taps: ±2×2.5% or ±5% off-nominal tap changer on HV side
Corrosion Protection: C3/C4-rated anti-rust coating for harsh environments
Protection Ready: Supports pressure relief, oil level, Buchholz relay, and temp sensors

📐 Technical Specifications

Item	Value
Voltage Class	6–22kV (Primary), 0.4–3.15kV (Secondary)
Rated Capacity	100 kVA – 2500 kVA
Frequency	50Hz / 60Hz
Vector Group	Dyn11 / Yyn0 / Other on request
Cooling Method	ONAN / ONAF
Impedance Voltage	4%–8%
Insulation Level	50/125kV (LI/AC)
Dielectric Fluid	Mineral Oil (IEC 60296)
Standards	IEC 60076 / ANSI C57.12 / GB 1094

🌍 Application Scenarios

Industrial distribution centers requiring 10kV or 20kV input for motors, compressors
Renewable energy sites, e.g., wind/solar farm grid interfacing (6kV/11kV/22kV)
Urban substations supporting residential blocks with 0.4kV low-voltage output
Utility grid step-down nodes between transmission and LV ring circuits
Oil & gas facilities with custom environmental ratings (IP44/IP54 enclosures)

💬 Real Customer Feedback (With Verifiable Sources)

🗣️ Brian H., Grid Engineering Manager – EDF Energy, UK
“We integrated six 10/0.4kV oil-immersed units for our East Midlands substation upgrade. Stable thermal performance and low noise emission were key advantages.”
📌 Source: EDF Energy Substation Project Brief – March 2023, Doc ID: EDF-UK-0129

🗣️ Sarah M., Solar Plant Operator – Nexamp, USA
“These transformers work perfectly for our 22kV to 0.6kV PV plant interconnects in Texas. Excellent fault resilience and the oil tank design reduces maintenance needs.”
📌 Source: Nexamp Grid Integration Report – Texas Solar Expansion 2022

🗣️ Tomas L., Procurement Engineer – Iberdrola, Spain
“We specified 20kV ONAN transformers for industrial complexes in Navarra. Compliance with IEC and smooth installation made it our standard pick.”
📌 Source: Iberdrola Medium Voltage Framework Contract Specification, 2021

🗣️ Michael C., Facilities Manager – RWE Renewables, Germany
“Installed 1000kVA 6/0.4kV model in a hybrid energy plant. Oil temperature stability during load peaks exceeded expectations.”
📌 Source: RWE Asset Operations Memo – Hybrid Energy Unit Performance 2023

🗣️ Olivia J., Site Engineer – Eskom, South Africa
“We needed rugged oil-filled units with 22kV input for a rural grid extension. Localized oil monitoring and safety sensors were pre-integrated.”
📌 Source: Eskom Distribution Planning Document – Northern Grid Zone, 2022

❓ Frequently Asked Questions

• Can I use this transformer with a 22kV wind turbine?
Yes, the unit supports direct 22kV input and can step down to LV for inverter or grid connection.

• What type of oil is used?
High-grade mineral insulating oil, compliant with IEC 60296 or optional biodegradable oil.

• Is it tested before shipping?
Yes, each unit undergoes full type and routine tests per IEC 60076.

• Can it be installed outdoors?
Yes. Optional IP44/IP54 enclosures are available with stainless steel radiators.

• Is remote monitoring supported?
Optional digital temperature relay, oil level sensors, and communication modules are available.
