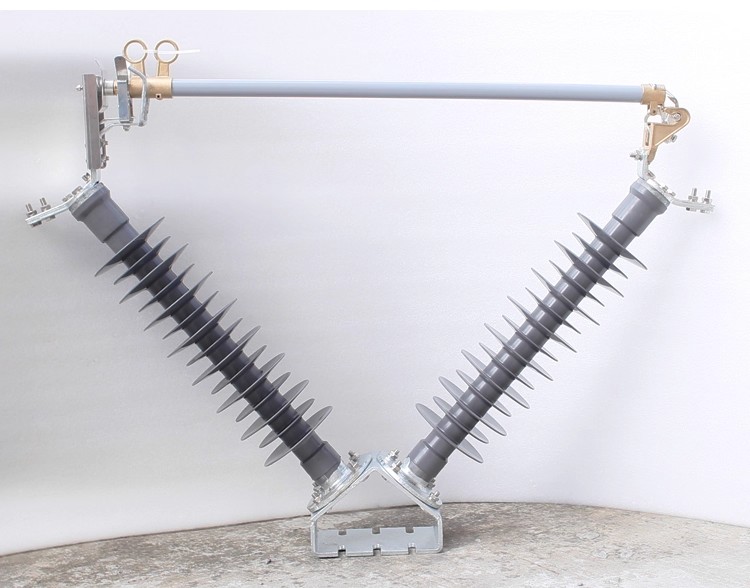

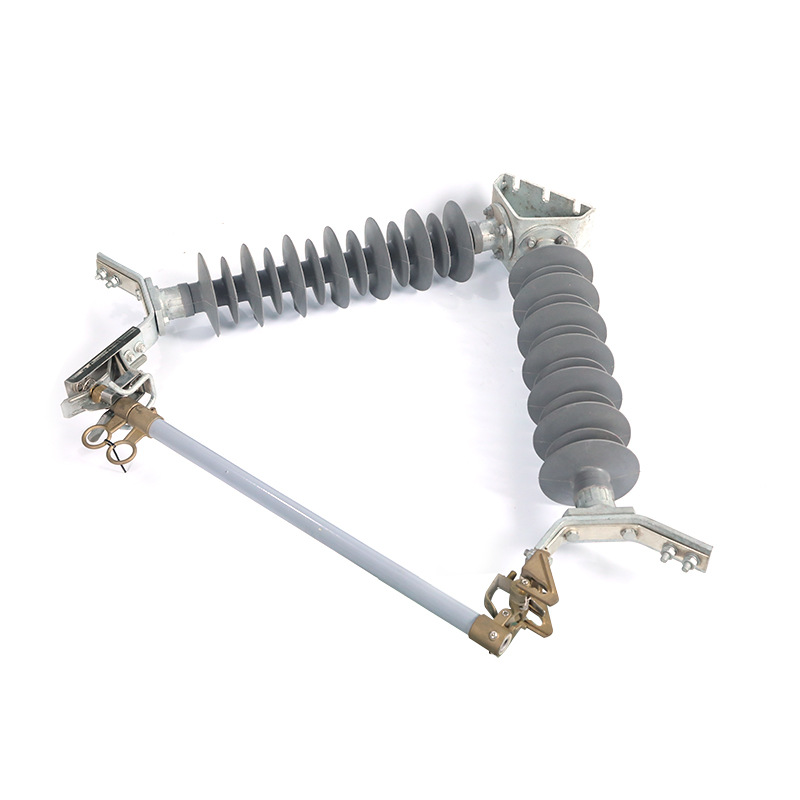

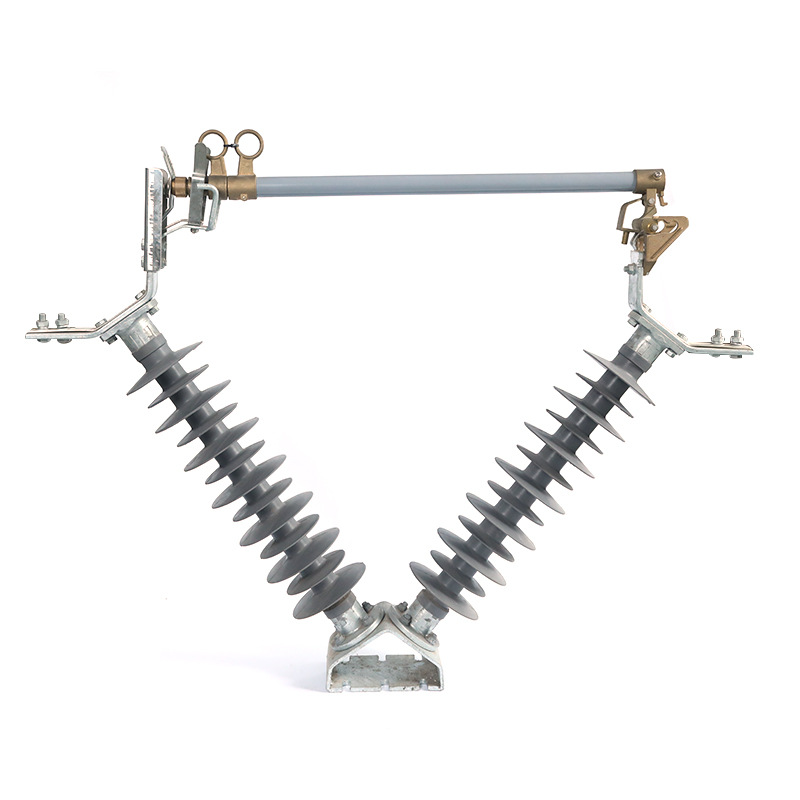

FDGW-35/200A 40.5KV Windproof Drop-Out Fuse

In outdoor power distribution lines, fuses are critical protective devices that prevent overcurrents and short-circuit faults. However, in areas with strong winds and harsh environments, traditional drop-out fuses are prone to nuisance tripping due to wind, severely impacting the reliability of grid operation. Leveraging its 12 years of professional experience in high-voltage switchgear, Weisho Electric proudly introduces the innovative FDGW-35 Windproof Drop-Out Fuse. This product is specifically designed for outdoor distribution lines with a rated voltage of 35kV and below, becoming an ideal choice to ensure the safe and stable operation of the power grid with its unique windproof structure, excellent arc-extinguishing performance, and superior weather resistance.

The FDGW-35 Windproof Drop-Out Fuse not only inherits the advantages of simple operation, easy maintenance, and convenient fuse replacement characteristics of drop-out fuses but also features an innovative structural optimization that significantly enhances its operational stability in strong wind conditions. Whether in mountainous, coastal, or windy regions, Weisho Electric's FDGW-35 provides reliable overcurrent and short-circuit protection, minimizing unplanned outages and improving power supply quality.

Core Advantages & Features: Breaking Tradition, Fearless in All Weather

Weisho Electric's FDGW-35 Windproof Drop-Out Fuse, through its innovative design and rigorous manufacturing, brings multiple core advantages to your high-voltage distribution lines:

• 1. Unique Windproof Structure, Eliminating Nuisance Tripping:

• Technical Detail: Features a specially designed locking mechanism or damping device that effectively resists swaying and vibration caused by wind when the fuse is in the closed position, preventing accidental dropping of the fuse during non-fault conditions. Simultaneously, the aerodynamic design of the fuse tube and contact parts has been optimized to reduce wind resistance.

• Key Benefit: Completely solves the problem of nuisance tripping in traditional drop-out fuses during strong winds, significantly improving the reliability of line operation and continuity of power supply, reducing unnecessary power outage losses and operation & maintenance costs.

• 2. Excellent Breaking Capacity & Efficient Arc Extinction:

• Technical Detail: Utilizes high-quality fuse links, coupled with high-performance arc-extinguishing materials and an optimized arc chamber structure, ensuring that in the event of a short-circuit fault, the fuse can quickly and reliably interrupt the fault current and extinguish the arc in a very short time.

• Key Benefit: Effectively limits the damage caused by short-circuit faults to grid equipment, ensuring rapid restoration of subsequent equipment operation. High breaking capacity guarantees safe isolation during grid faults.

• 3. Superior Weather & Corrosion Resistance:

• Technical Detail: Metal components undergo hot-dip galvanization or are made of stainless steel, offering excellent anti-corrosion capabilities. Insulators use high-strength ceramic or silicone rubber composite materials, with surfaces specially treated for hydrophobicity, providing UV resistance and anti-aging properties, effectively resisting erosion from salt spray, acid rain, sand, and other harsh environmental factors.

• Key Benefit: Ensures the fuse remains undeformed, rust-free, and unaged during long-term outdoor operation, significantly extending product lifespan and reducing replacement and maintenance frequency.

• 4. Convenient Operation, Efficient Maintenance:

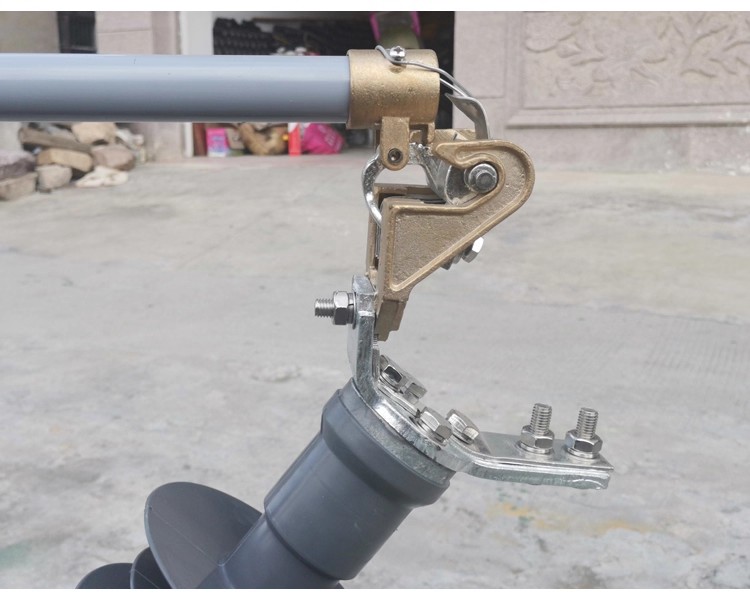

• Technical Detail: Features a load-break diverging contact structure, making load-breaking operations safer and more reliable. Fuse replacement is simple and quick, supporting live-line operation (requires an insulated hot stick), greatly reducing power outage time.

• Key Benefit: Improves operation and maintenance efficiency, reduces the difficulty and risk of high-voltage line maintenance, saving significant labor and resources.

• 5. High Strength & Structural Stability:

• Advantage: The overall structural design is robust with high mechanical strength, capable of withstanding external impacts from wind loads, ice accumulation, and earthquakes. Easy to install and well-compatible with existing distribution line pole and tower structures.

• Key Benefit: Guarantees the structural integrity and operational stability of the fuse under various extreme natural conditions, enhancing the disaster resistance of distribution lines.

Applications: Critical Protection for Power Distribution Networks

Weisho Electric's FDGW-35 Windproof Drop-Out Fuse is widely applied in various outdoor distribution lines with a rated voltage of 35kV and below, particularly suitable for the following scenarios:

• Substation Outgoing Lines: As overcurrent and short-circuit protection for main transformers or distribution lines.

• High-Voltage Side of Distribution Transformers: To protect distribution transformers and prevent fault escalation.

• Branch Line Protection: For selective protection of overhead branch lines, isolating fault points.

• Rural Grids & Remote Areas: Simple structure and easy maintenance, especially suitable for areas with limited maintenance conditions.

• Windy, Salt-Fog, and Polluted Areas: Unique windproof and weather-resistant design ensures reliable operation in harsh environments.

• Urban Grid Renovation: Fast response, improving the automation level of the distribution network.

Technical Specifications & Standard Compliance

Weisho Electric's FDGW-35 Windproof Drop-Out Fuse strictly adheres to relevant international and domestic standards, ensuring its excellent performance and reliability.

Environmental Conditions

Main Electrical & Mechanical Parameters (FDGW-35)

Quality Assurance & Authoritative Certifications

At Weisho Electric, our commitment to product quality is our cornerstone. The FDGW-35 Windproof Drop-Out Fuse adheres strictly to international quality management systems and industry standards, from design and raw material procurement to precision manufacturing and factory testing.

• ISO 9001 Quality Management System Certification: Ensures that every stage, from design and production to delivery, meets the highest quality standards.

• IEC 60282-2 Standard Compliance: Our product design and testing strictly conform to the latest International Electrotechnical Commission standards for high-voltage fuses, ensuring global compatibility and reliability.

• China Compulsory Certification (CCC)

• CE Certification (Conformité Européenne)

Every Weisho Electric FDGW-35 Windproof Drop-Out Fuse undergoes rigorous mechanical operation tests, temperature rise tests, breaking capacity tests, and windproof performance tests before leaving the factory, ensuring reliable and safe line protection under all operating conditions.

Installation & Maintenance: Simplified Deployment, Ensuring Continuous Operation

Weisho Electric's FDGW-35 Windproof Drop-Out Fuse features a standardized design, allowing for simple and quick installation on existing pole structures. Its unique windproof design and high-quality materials significantly reduce the frequency of routine maintenance. Fuse replacement is straightforward and supports live-line operation, greatly minimizing power outage time. We provide detailed installation manuals and professional technical support to ensure the product operates safely and efficiently, offering long-term reliable service.

Customer Testimonials: Professional, Trustworthy

Hear what our global customers have to say about Weisho Electric's FDGW-35 Windproof Drop-Out Fuse:

• "For a distribution line project in a high-wind area of California, USA, we chose Weisho Electric's FDGW-35 windproof fuse. Its windproof performance is outstanding, effectively solving the nuisance tripping issues we faced in the past, and greatly enhancing power supply stability and reliability."

• — Mark J. Thompson, Operations Manager, US Power Utility

• "In a rural grid modernization project on the North German coast, Weisho Electric's FDGW-35 performed exceptionally. In frequent strong winds and salt-fog environments, its corrosion resistance and anti-aging properties ensured long-term stable operation, reducing our maintenance workload."

• — Frank W. Müller, Technical Director, German Distribution Services Company

• "Weisho Electric's FDGW-35 fuse played a crucial role in our remote rural electrification project in the central mountains of Chile. Its ease of installation and reliable operation in high winds and variable climates brought us great convenience and confidence."

• — Rodrigo E. Sanchez, Project Manager, Chilean Rural Electrification Project
