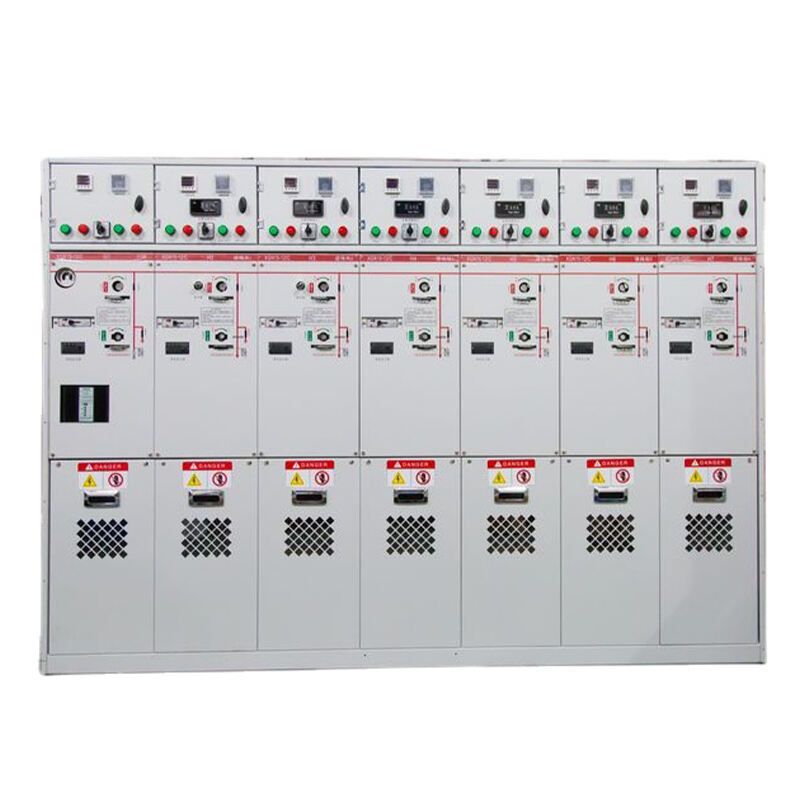

HXGN15-12L sf6 gas insulated switchgear
PRODUCT INTRODUCTION
Weisho Electric’s HXGN15-12 is a compact 12kV gas insulated switchgear designed for reliable power distribution in urban grids, industrial facilities, and renewable energy systems. Featuring SF6 insulation and FLN36 load switches, it ensures safe and efficient operation.
With a five-compartment insulated design, this ring main unit complies with IEC 62271-200 standards. Its small footprint and robust interlocking mechanism make it ideal for space-constrained environments. In 2024, a Shanghai substation adopted the HXGN15-12, reducing installation space by 30% compared to traditional air-insulated switchgear.
[](https://www.shangdianpower.com/hxgn15--12-ac-metal-enclosed-switchgear)
| Parameter | Value |
|---|---|
| Rated Voltage | 12kV |
| Rated Current | 630A |
| Short-Circuit Breaking Current | 20kA |
| Frequency | 50Hz |
| Insulation Medium | SF6 Gas |
| Protection Level | IP4X |
| Operating Temperature | -25°C to +40°C |
| Dimensions (H×W×D) | 2000×700×900 mm |
Specifications may vary by configuration. Contact us for detailed data sheets.
Applications include:
Urban power distribution networks
Industrial and mining enterprises
Railway and metro power systems
Wind and solar power plants
Trust Weisho Electric for innovative power solutions. Request a Quote
