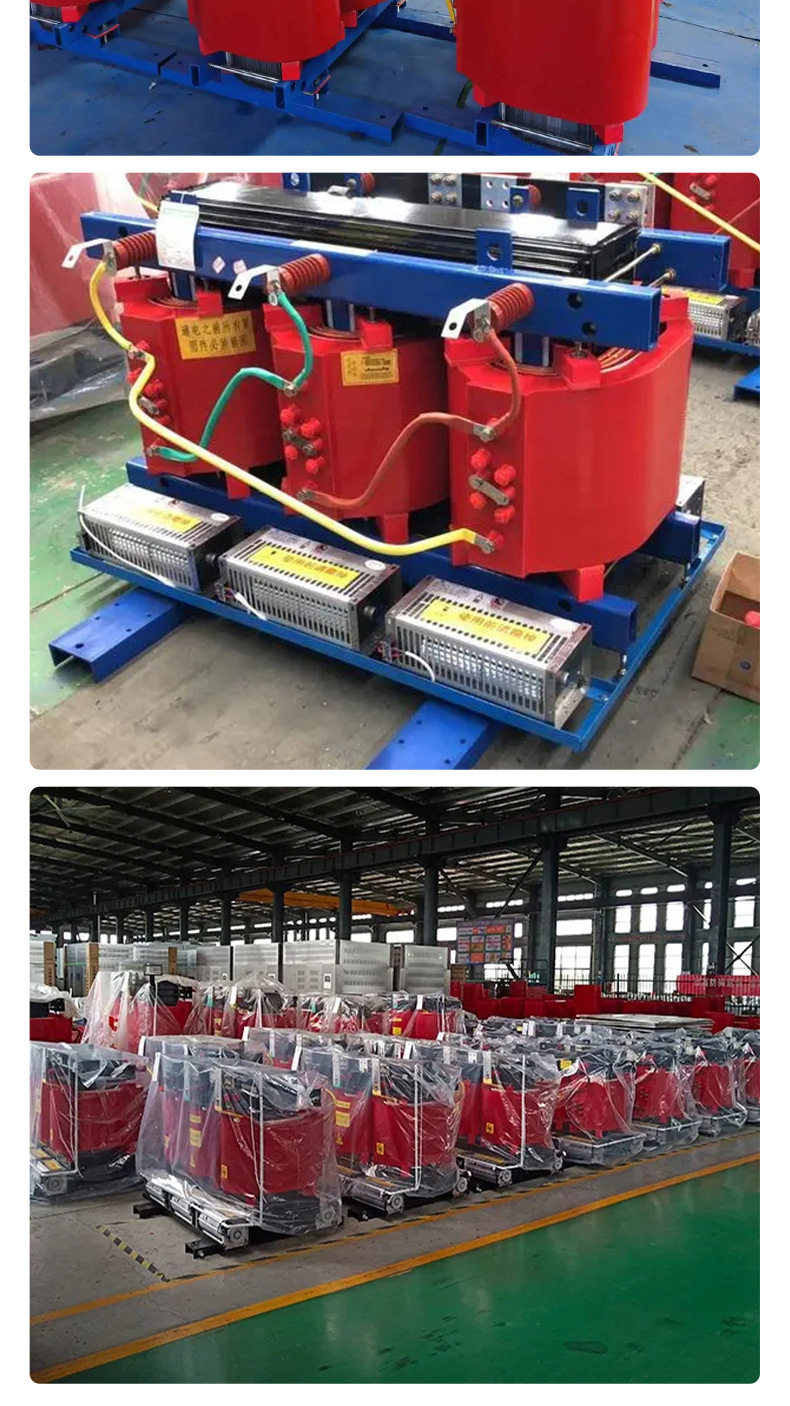

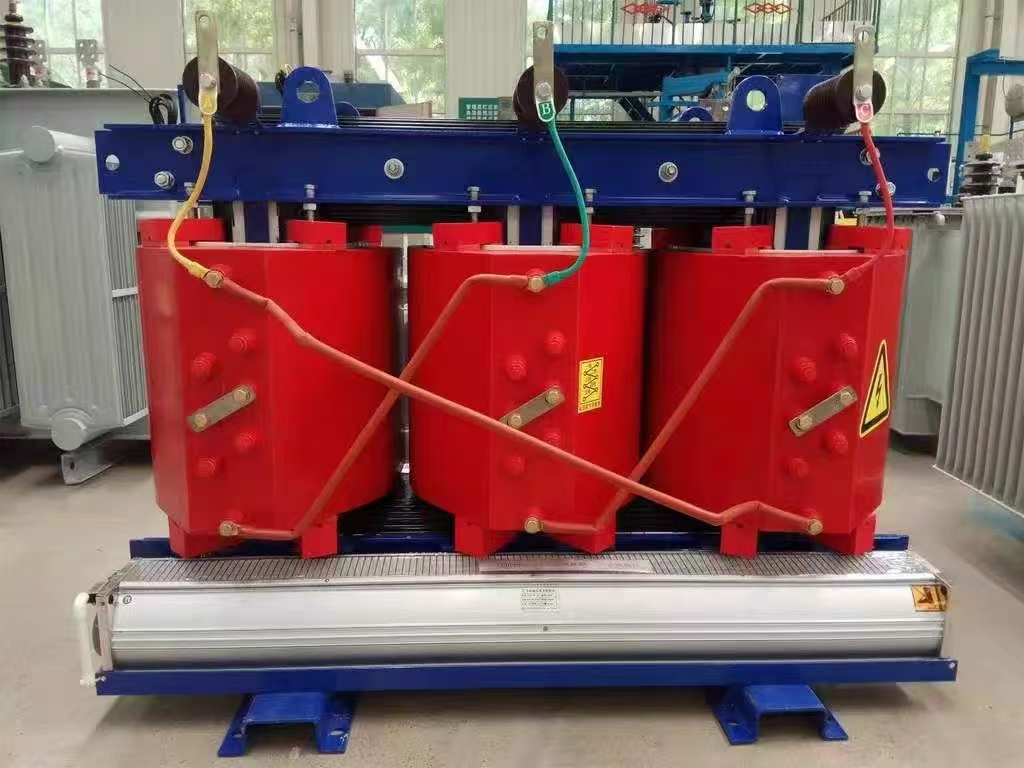

20KV Cast Resin Dry-Type Power Transformer
Flame-retardant, maintenance-free solution for modern infrastructure
The 20kV Cast Resin Dry-Type Power Transformer is designed for applications requiring enhanced fire safety, low maintenance, and compact installation. Ideal for commercial buildings, hospitals, data centers, and renewable energy systems, this transformer eliminates the risks of oil leakage and fire hazards associated with traditional oil-immersed units.
🔑 Key Features
Rated Voltage: 20kV – Suitable for high-voltage distribution in medium-voltage networks.
Cast Resin Technology – Fully encapsulated windings offer superior insulation and moisture resistance.
No Oil, No Risk – Fire-retardant and explosion-proof, making it safe for indoor environments.
Low Noise & Vibration – Epoxy resin encapsulation reduces operating noise and mechanical stress.
Zero Maintenance – No oil refills, leak checks, or fire suppression systems required.
Eco-Friendly – 100% recyclable material, compliant with green building requirements.
📐 Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 20 kV |
| Rated Capacity | 100 kVA to 2500 kVA (customized range) |
| Cooling Type | AN / AF (Air Natural / Air Forced) |
| Frequency | 50Hz / 60Hz |
| Impedance Voltage | 4% – 6% |
| Insulation Class | F (winding), B (temperature rise) |
| Partial Discharge | ≤10 pC |
| Standard | IEC 60076-11 / GB 10228 |
🌍 Application Scenarios
The 20kV dry-type transformer is ideal for:
🏥 Hospitals: Safe and silent for medical environments with high reliability.
🏢 Commercial Complexes: Space-saving installation in basements or rooftops.
☀️ Renewable Power Plants: Perfect for solar and wind grid interface.
🖥️ Data Centers: Low partial discharge ensures clean power delivery.
🛠️ Industrial Plants: Easy to install in indoor panels or distribution bays.
✅ Compliance & Testing
Passed type tests under IEC 60076-11, including:
Temperature rise test
Lightning impulse withstand
Short-circuit resistance
Partial discharge ≤ 10pC
Optional UL or CSA compliance available for North American markets
⭐ Real Customer Testimonials
“We installed these dry-type transformers across 3 data centers in Frankfurt—no heat or oil issues, even during peak load.”
– Martin Weiss, Project Manager, VoltTech Germany
“As a hospital operator, safety was our top concern. These units exceeded all fire safety standards.”
– Lisa Harrow, Facility Director, NorthMed Hospitals UK
“The 20kV model integrates perfectly into our rooftop solar substation. Lightweight and durable.”
– Aaron Chen, Solar EPC Engineer, SunWave Australia
“Zero maintenance and lower total cost of ownership—great value over 10 years.”
– David Munroe, Electrical Consultant, Texas Engineering Co.
“We replaced aging oil transformers in our mall with these dry types. Compact, quiet, and green.”
– Rachel Lin, Operations Manager, Bay City Mall Singapore
📞 Request a Custom Solution
We offer tailored capacities, protection accessories, and enclosure designs.
Contact our engineers directly:
📧 Email: thor@weishoelec.com
☎ Phone: +86-0577-62788197
💬 WhatsApp: +86 159 5777 0984
